Butler Matrix

Download the technical specifications of product series

4580+

Product overview

Technical specifications

Standard Product List

Model	Matrix	Freq.Range（GHz）	IL（dB）	VSWR	Amplitude Balance (dB)	Phase Accuracy (°)
FBF1722S-4B4	4x4	1.7~2.2	8.5	1.35	±0.6	±2.0
FBF2327S-4B4	4x4	2.3~2.7	8.5	1.35	±0.6	±2.0
FBF1727S-4B4	4x4	1.7~2.7	8.5	1.35	±0.8	±2.5
FBF3342S-4B4	4x4	3.3~4.2	8.5	1.35	±0.6	±2.0
FBF4450S-4B4	4x4	4.4~5.0	8.5	1.35	±0.6	±2.0
FBF5985S-4B4	4x4	5.9~8.5	9.5	1.45	±1.2	±3.0
FBF0760S-4B4	4x4	0.7~6	12	1.8	±2.0	±10
FBF2072S-4B4	4x4	2~7.2	12	1.8	±2.0	±10
FBF1722S-8B8	8x8	1.7~2.2	13	1.45	±1.0	±2.5
FBF2327S-8B8	8x8	2.3~2.7	13	1.45	±1.0	±2.5
FBF1727S-8B8	8x8	1.7~2.7	13.5	1.5	±1.5	±3.5
FBF3342S-8B8	8x8	3.3~4.2	13	1.45	±1.0	±2.5
FBF4450S-8B8	8x8	4.4~5.0	13	1.45	±1.0	±2.5
FBF5985S-8B8	8x8	5.9~8.5	15	1.6	±1.5	±3.0

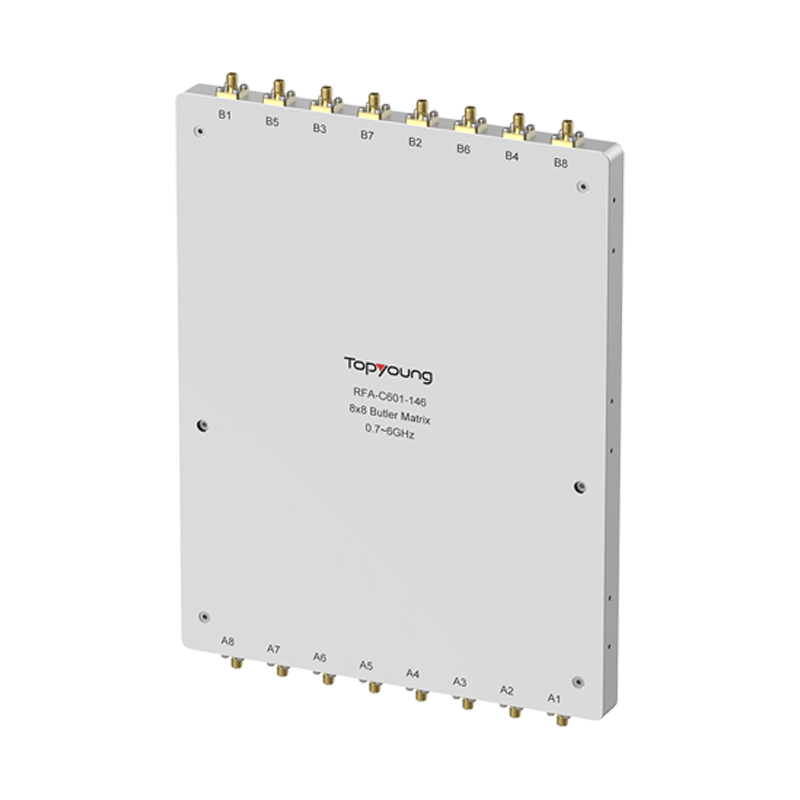

FBF0760S-8B8	8x8	0.7~6	18	2	±3.0	±20
FBF2072S-8B8	8x8	2~7.2	18	2	±3.0	±20
FBF2327S-16B16	16x16	2.3~2.7	19	18	+2.0	+20

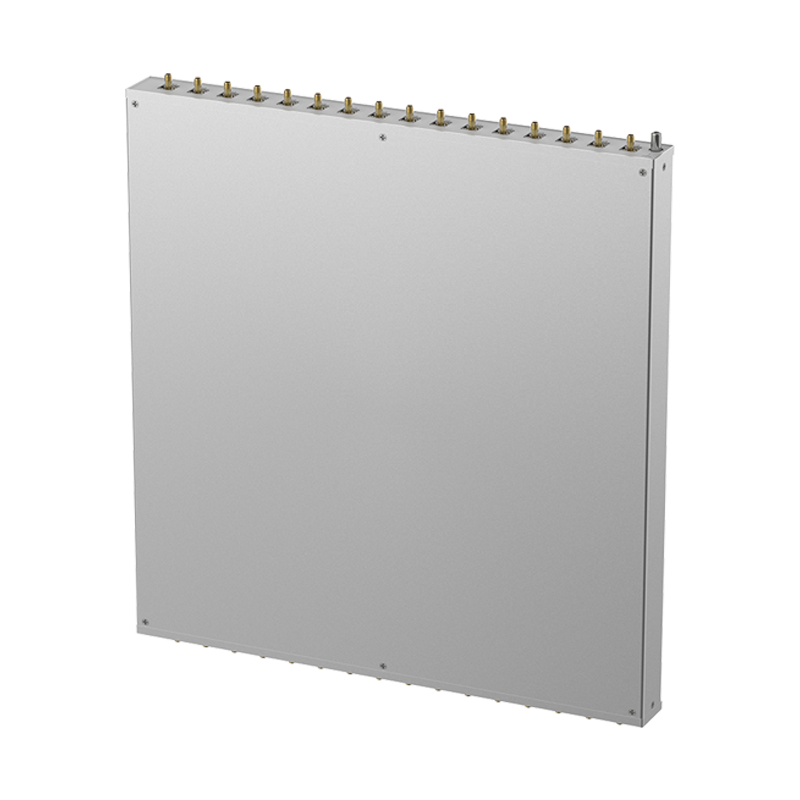

FBF0760S-16B16	16x16	0.7~6	28	2	—	+25

Butler Matrix

Specification

FBF1722S-4B4 FBF2327S-4B4 FBF1727S-4B4 FBF3342S-4B4 FBF4450S-4B4 FBF5985S-4B4 FBF0760S-4B4 FBF2072S-4B4 FBF1722S-8B8 FBF2327S-8B8 FBF1727S-8B8 FBF3342S-8B8 FBF4450S-8B8 FBF5985S-8B8 FBF0760S-8B8 FBF2072S-8B8 FBF2327S-16B16 FBF0760S-16B16
