MRC20-Reverberation Chamber Test System

Views：1815+

Collection：0+

*Aim at OTA test platform for small wireless products
*Compact size, high efficiency, high sensitivity and wide frequency band

Specification

Quantity

Payment method

100% payment in advance

Related recommendation

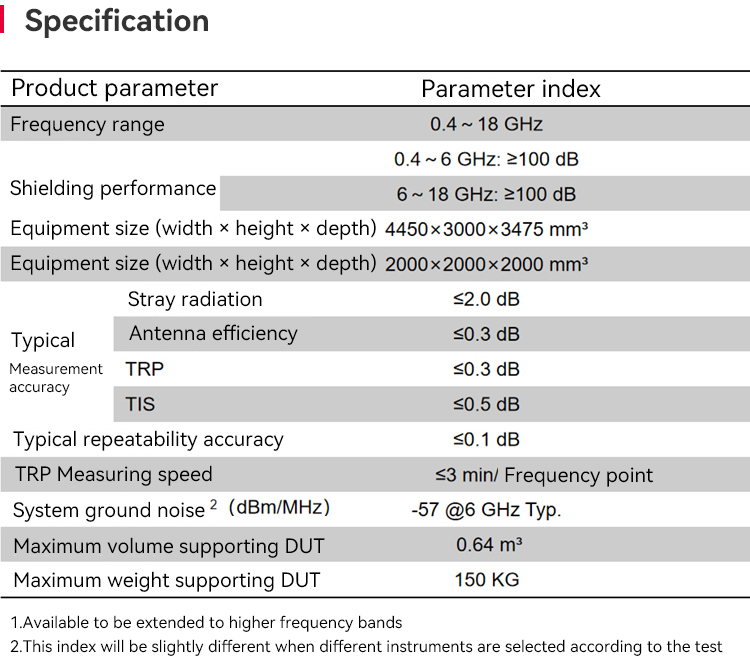

System Parameters		Parameter Index
Frequency Range¹		0.4～18 GHz
Shielding Performance		0.4～6 GHz: ≥100 dB
Shielding Performance		6～18 GHz: ≥100 dB
Device Size (W×D×H)		4450×3000×3475 mm³
Device Size (W×D×H)		2000×2000×2000 mm³
Typical Measurement Accuracy	Stray Emission	≤2.0 dB
	Antenna Efficiency	≤0.3 dB
	TRP	≤0.3 dB
	TIS	≤0.5 dB
Typical Repeatability		≤0.1 dB
TRP Measurement Speed		≤3 min/Frequency
System Noise Floor²（dBm/MHz）		-57 @6 GHz Typ.
Support DUT Max Volume		0.64 m³
Support DUT Max Weight		150 KG

1: Expandable to higher frequency bands

2: The indicator will be slightly different according to the test selection of different instruments

Hardware Configuration

Configuration Item	Description	Configuration
Shielding Body	4450×3000×3475 mm³	Standard
Turntable	0°～360° / 0.1° Stepping	Standard
Measuring Antenna	Cover 0.4～18 GHz	Standard
Link Antenna	Sub 6G / mmWave	Optional
RF Interface	SMA-Female /2.92-Female / 2.4-Female	Standard
Power Interface	220 V / 16 A Three-phase Interface	Standard
Communication Interface	Network Port /USB /Optical Fiber	Standard
Instrument Cabinet	19” Standard Cabinet	Optional
Test Instrument	Vector Network Analyzer	Optional
	Wireless Comprehensive Tester	Optional
	Spectrum Analyzer	Optional
	Signal Source	Optional

Ordering Guide

Series	Applicable Objects	Support Frequency	Test Area
MRC03	Mobile phone and communication module products with size less than 30cm	1.7～67GHz（Scalable to higher frequencies）	≤0.3×0.3×0.3 m³
MRC06	Millimeter wave base stations, drones and other products with a size less than 60cm	0.7～67GHz（Scalable to higher frequencies）	≤0.6×0.6×0.6 m³
MRC20	Base stations, major appliances, robots and other products with a size less than 2m	0.4～18GHz（Scalable to higher frequencies）	≤2.0×2.0×2.0 m³
MRCX	Customized Products	TBD	TBD
