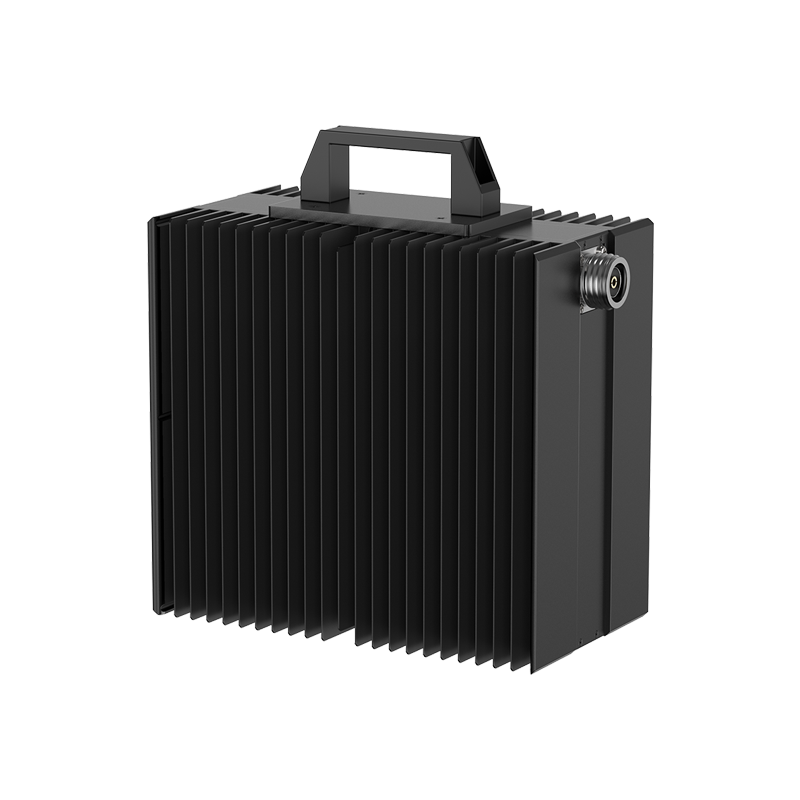

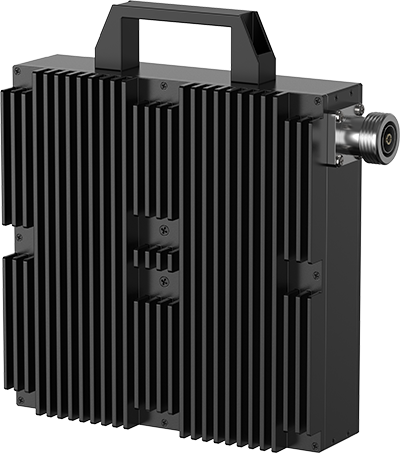

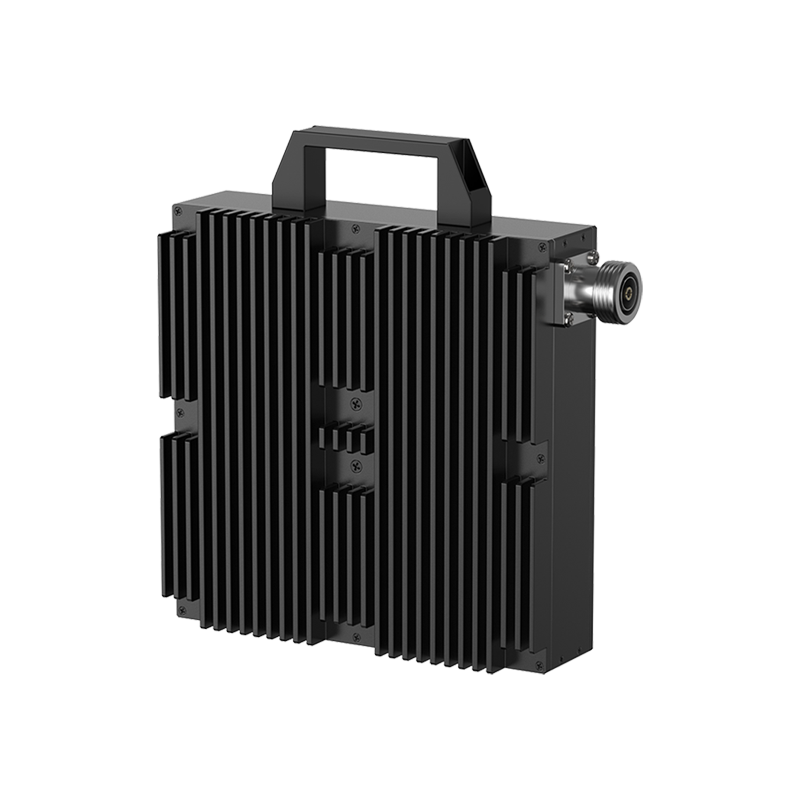

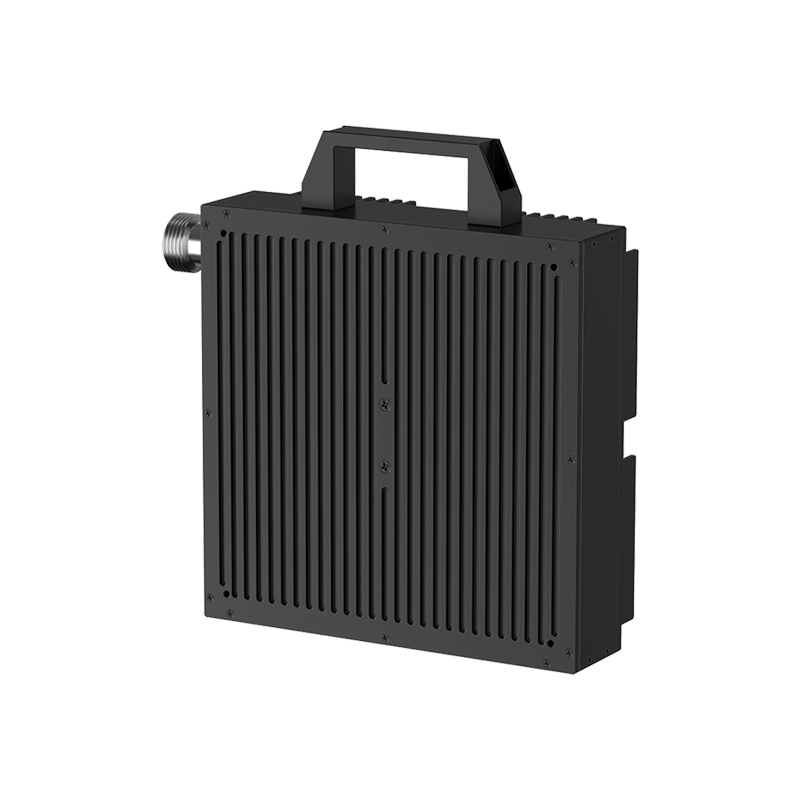

Low PIM Termination
Low PIM Termination
Low PIM Termination

Low PIM Termination

Views：3148+ Collection：872+

▷ Absorbs high-power signals without adding passive intermodulation
▷ 0.4–8 GHz frequency coverage
▷ 100–300 W power options, PIM3 −160 dBc typ.
▷ N, 4.3/10 & 7/16 connector options

Download the technical specifications of product series

Specification
  • TCT100-34-N2-L11
  • TCT200-34-N2-L11
  • TCT200-34-D2-L11
  • TCT300-34-D2-L11
  • TCT100-0.4G8-N2-L11
  • TCT200-0.4G8-N2-L11
  • TCT200-0.4G8-D2-L11
  • TCT300-0.4G8-D2-L11
Quantity
Inquiry immediately

Related recommendation

Standard Product List

Description

Model

Freq. Range（GHz）

Average Power (W）

VSWR

PIM3* (dBc)

Connectorproduct picture
Low PIM termination,100W
TCT100-34-N2-L110.7～41001.3-160N-Female
Low PIM termination,200W
TCT200-34-N2-L110.7～42001.3-160N-Female
Low PIM termination,200WTCT200-34-D2-L110.7～42001.3-1607/16-Female

Low PIM termination,300WTCT300-34-D2-L110.7～43001.3-1607/16-Female
Low PIM termination,100WTCT100-0.4G8-N2-L110.4～81001.35-160N-Female
Low PIM termination,200WTCT200-0.4G8-N2-L110.4～82001.35-160N-Female
Low PIM termination,200WTCT200-0.4G8-D2-L110.4～82001.35-1607/16-Female
Low PIM termination,300WTCT300-0.4G8-D2-L110.4～83001.35-1607/16-Female

*PIM: 3rd passive intermodulation, test conditions: +43dBm*2 carrier @900MHz or 1800MHz
