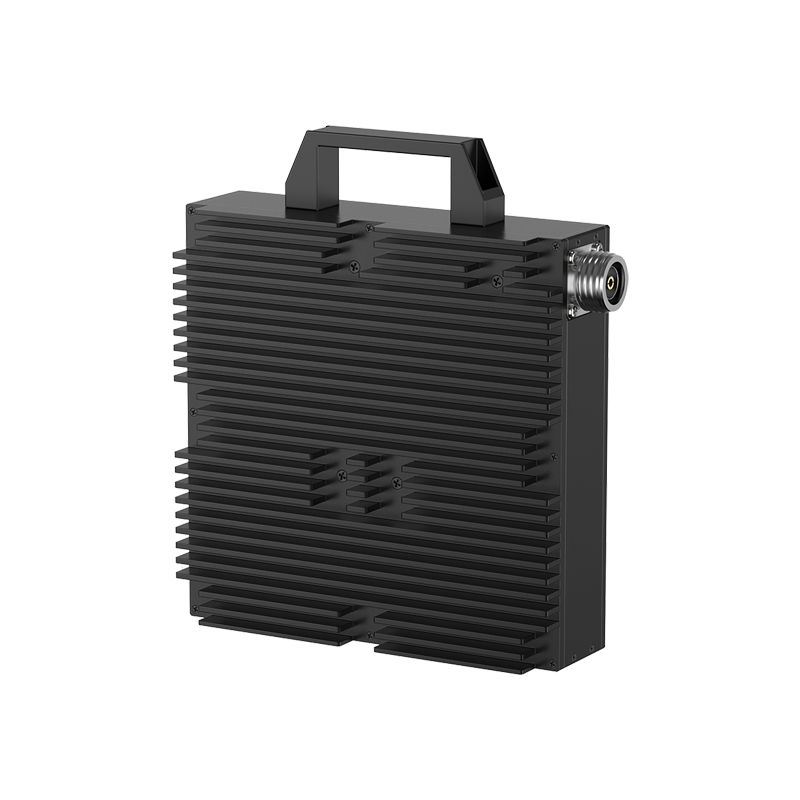

Low PIM Attenuator

Views:1626+ Collection:0+

Download the technical specifications of product series

Specification
  • TCA100-3
  • TCA100-3
  • TCA100-3
  • TCA200-3
  • TCA200-3
  • TCA200-3
  • TCA200-3
  • TCA200-3
  • TCA200-3
  • TCA300-3
  • TCA300-3
  • TCA300-3
  • TCA100-0
  • TCA100-0
  • TCA100-0
  • TCA200-0
  • TCA200-0
  • TCA200-0
  • TCA200-0
  • TCA200-0
  • TCA200-0
  • TCA300-0
  • TCA300-0
  • TCA300-0
Quantity
Payment method
100% payment in advance

Related recommendation

ModelFrequency Range
(GHz)
Coupling Value
(dB)
Coupling Accuracy
(dB)
VSWRPower
(W)
PIM3
(dBc@43dBm*2)
900M/1800M
Connector
TCA100-34-30N2-L100.698~430±21.3100-155IN: N; OUT: N
TCA100-34-40N2-L100.698~440±21.3100-155IN: N; OUT: N
TCA200-34-20N2-L100.698~420±21.3200-155IN: N; OUT: N
TCA200-34-30N2-L100.698~430±21.3200-155IN: N; OUT: N
TCA200-34-40N2-L100.698~440±21.3200-155IN: N; OUT: N
TCA200-34-20C2-L110.698~420±21.3200-160IN: D; OUT: N
TCA200-34-30C2-L110.698~430±21.3200-160IN: D; OUT: N
TCA100-34-20N2-L100.698~420±21.3100-155IN: N; OUT: N
TCA200-34-40C2-L110.698~440±21.3200-160IN: D; OUT: N
TCA300-34-20C2-L110.698~420±21.3300-160IN: D; OUT: N
TCA300-34-30C2-L110.698~430±21.3300-160IN: D; OUT: N
TCA300-34-40C2-L110.698~440±21.3300-160IN: D; OUT: N
TCA100-0.4G6-20N2-L100.4~620±31.4100-155IN: N; OUT: N
TCA100-0.4G6-30N2-L100.4~630±31.4100-155IN: N; OUT: N
TCA100-0.4G6-40N2-L100.4~640±31.4100-155IN: N; OUT: N
TCA200-0.4G6-20N2-L100.4~620±31.4200-155IN: N; OUT: N
TCA200-0.4G6-30N2-L100.4~630±31.4200-155IN: N; OUT: N
TCA200-0.4G6-40N2-L100.4~640±31.4200-155IN: N; OUT: N
TCA200-0.4G6-20C2-L110.4~620±31.4200-160IN: D; OUT: N
TCA200-0.4G6-30C2-L110.4~630±31.4200-160IN: D; OUT: N
TCA200-0.4G6-40C2-L110.4~640±31.4200-160IN: D; OUT: N
TCA300-0.4G6-20C2-L110.4~620±31.4300-160IN: D; OUT: N
TCA300-0.4G6-30C2-L110.4~630±31.4300-160IN: D; OUT: N
TCA300-0.4G6-40C2-L110.4~640±31.4300-160IN: D; OUT: N
Environment temperature(℃)No wind,25
Heat dissipation modeNatural heat dissipation
Attenuator tooth blade temperature(℃)≤75
ColourBlack
