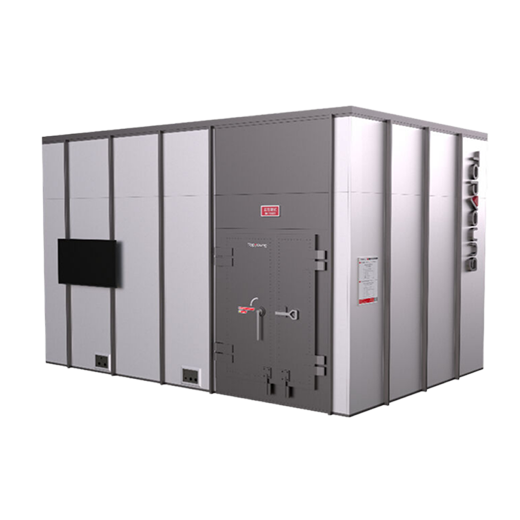

PWS Test System-PWS3001

Views：1783+ Collection：1+

* The perfect combination of "small size" and "great capacity"
* Achieve far-field test effect at close range
* Can be deployed in office buildings, with small covering area and low cost

Download the technical specifications of product series

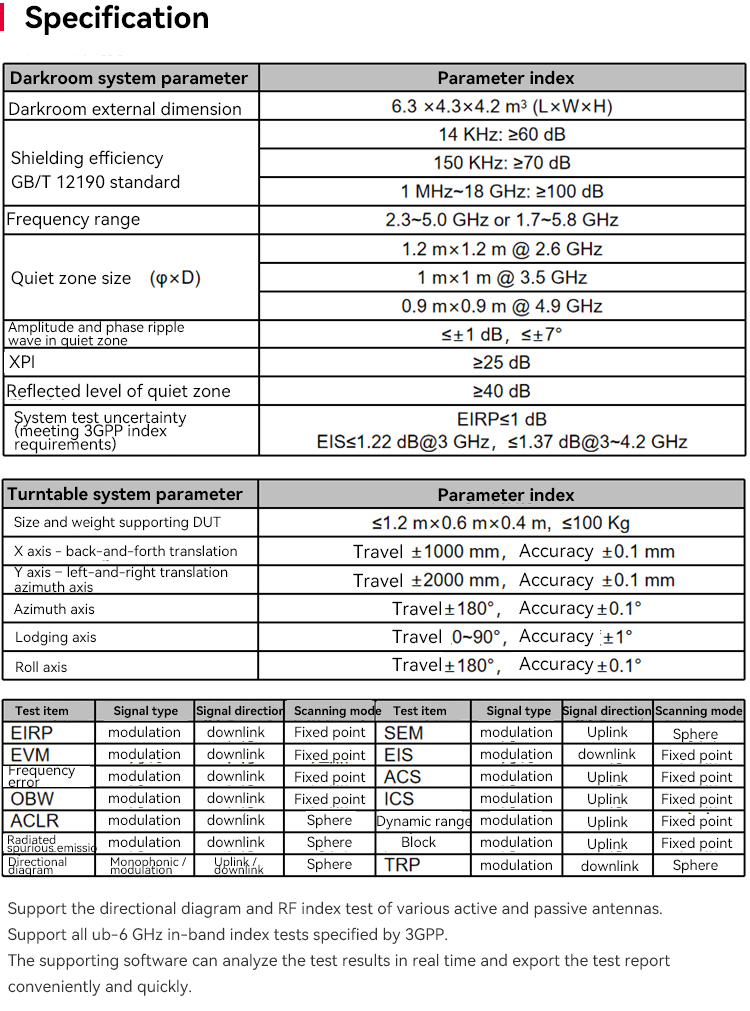

Specification

PWS Far

Quantity

Payment method

100% payment in advance

Add to inquiry sheet Inquiry immediately

Related recommendation

Darkroom system parameter	Parameter index
Darkroom external dimension	6.3 ×4.3×4.2 m3 (L×W×H)
Shielding efficiency-Meet GB/T 12190 standard	14 KHz: ≥60 dB
	150 KHz: ≥70 dB
	1 MHz~18 GHz: ≥100 dB
Frequency range	2.3~5.0 GHz or 1.7~5.8 GHz
Quiet zone size (φ×D)	1.2 m×1.2 m @ 2.6 GHz
	1 m×1 m @ 3.5 GHz
	0.9 m×0.9 m @ 4.9 GHz
Amplitude and phase ripple wave in quiet zone	≤±1 dB，≤±7°
XPI	≥25 dB
Reflected level of quiet zone	≥40 dB
System test uncertainty (meeting 3GPP index requirements)	EIRP≤1 dB EIS≤1.22 dB@3 GHz，≤1.37 dB@3~4.2 GHz

Turntable system parameter	Parameter index
Size and weight supporting DUT	≤1.2 m×0.6 m×0.4 m, ≤100 Kg
X axis - back-and-forth translation	Stroke ±1000 mm，Accuracy ±0.1 mm
Y axis – left-and-right translation	Stroke ±2000 mm，Accuracy ±0.1 mm
Azimuth axis	Stroke ±180°，Accuracy ±0.1°
Lodging axis	Stroke 0~90°，Accuracy ±1°
Roll axis	Stroke ±180°，Accuracy ±0.1°

Test item	Signal type	Signal direction	Scanning mode
EIRP	Modulation	Downlink	Fixed point
EVM	Modulation	Downlink	Fixed point
Modulation	Modulation	Downlink	Fixed point
OBW	Modulation	Downlink	Fixed point
ACLR	Modulation	Downlink	Sphere
Radiated spurious emission	Modulation	Downlink	Sphere
Directional diagram	Monophonic / Modulation	Uplink / Downlink	Section
SEM	Modulation	Downlink	Sphere
EIS	Modulation	Uplink	Fixed point
ACS	Modulation	Uplink	Fixed point
ICS	Modulation	Uplink	Fixed point
Dynamic range	Modulation	Uplink	Fixed point
Block	Modulation	Uplink	Fixed point
TRP	Modulation	Downlink	Sphere

* Support the directional diagram and RF index test of various active and passive antennas

** Support all ub-6 GHz in-band index tests specified by 3GPP

*** The supporting software can analyze the test results in real time and export the test report conveniently and quickly
