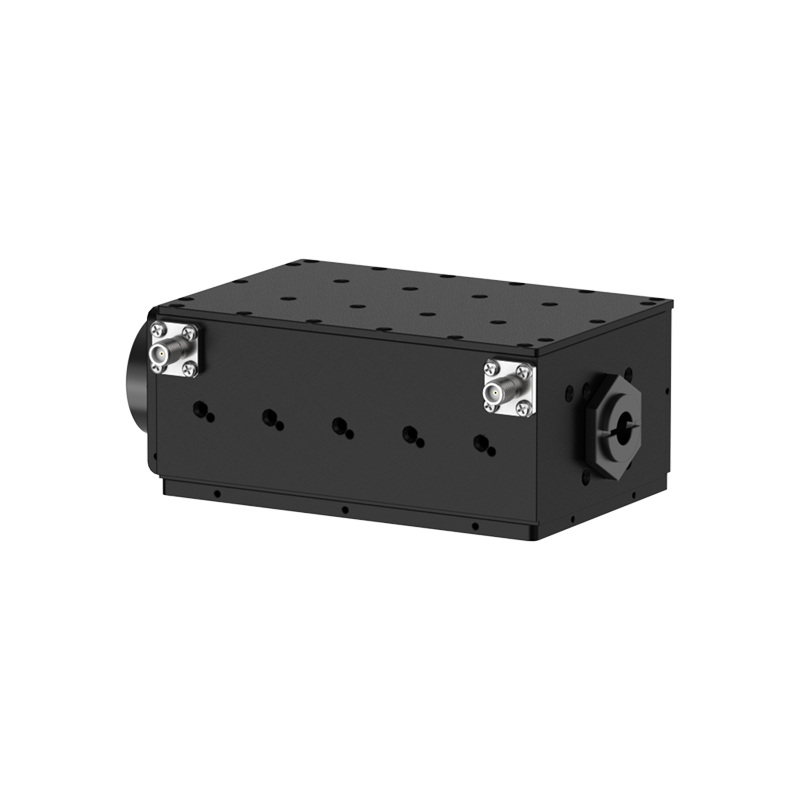

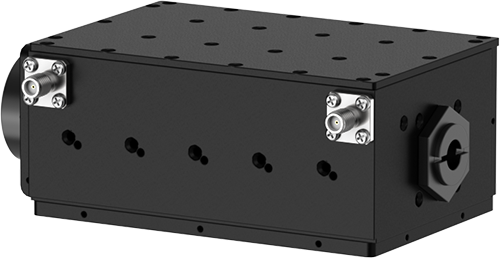

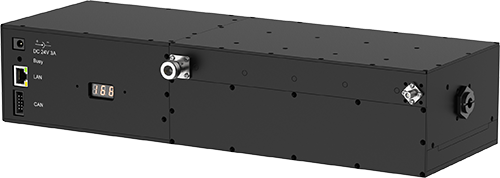

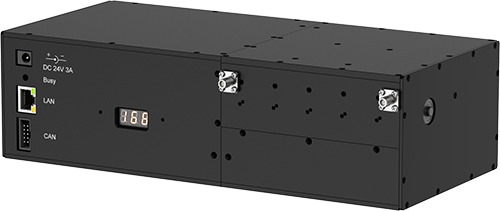

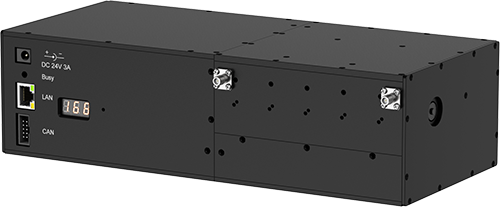

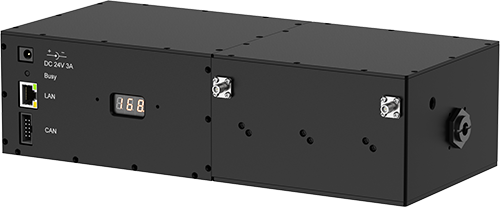

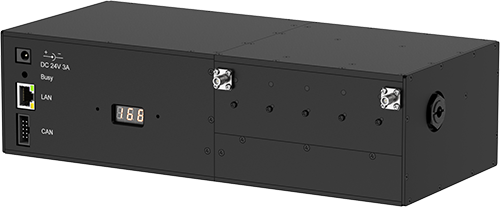

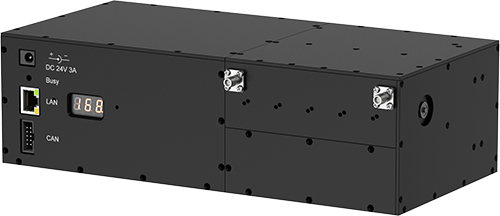

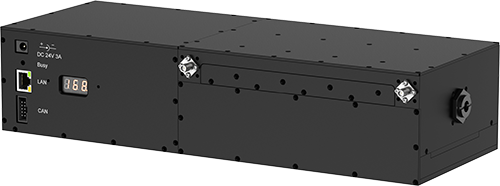

Manual Turnable Band-reject Filter

Views:2471+ Collection:4+

* Used in various wireless communication, testing and other microwave systems
* Meet the requirements of various frequency bands
* Flexibly adjust the rejection band

Download the technical specifications of product series

Specification
  • TNF0.2M4
  • TNF0.2M8
  • TNF1.4M1
  • TNF1.4M1
  • TNF5M25-
  • TNF5M25-
  • TNF5M25-
  • TNF5M25-
  • TNF20M70
  • TNF20M70
  • TNF20M70
  • TNF20M70
  • TNF40M13
  • TNF40M13
  • TNF100M3
Quantity
Payment method
100% payment in advance

Related recommendation

Model

Frequency

Range

(MHz)

35dB

Min. BW

(MHz)

3dB BW

(MHz)

Notch Depth

(dB)

Passband

Insertion Loss

(dB)

Passband

Return Loss

(dB)

TNF0.2M4-0.8G1-35N800~10000.2435110
TNF0.2M8-1.7G2-35N1700~20000.2835110
TNF1.4M10-670M960-35N670~9601.41035110
TNF1.4M15-1.7G2-35N1700~20001.41535110
TNF5M25-670M960-35N670~96052535110
TNF5M25-1.7G2-35N1700~200052535110
TNF5M25-2000M2420-35N2000~242052535110
TNF5M25-2.3G2.7-35N2300~270052535110
TNF20M70-670M960-35N670~960207035110
TNF20M70-1.7G2-35N1700~2000207035110
TNF20M70-2000M2420-35N2000~2420207035110
TNF20M70-2.3G2.7-35N2300~2700207035110
TNF40M130-1.7G2-35N1700~20004013035110
TNF40M130-2.3G2.7-35N2000~24204013035110
TNF100M310-3.3G3.8-35S3300~380010031035110


ModelA (mm[inch])B (mm[inch])C (mm[inch])D (mm[inch])
TNF0.2M4-0.8G1-35N202.2[7.96]80[3.15]128[5.04]221[8.7]
TNF0.2M8-1.7G2-35N180[7.09]60[2.36]100[3.94]200[7.88]
TNF1.4M10-670M960-35N119.4[4.7]80[3.15]128[5.04]136.9[5.39]
TNF1.4M15-1.7G2-35N65.6[2.58]53[2.09]83[3.27]82[3.23]
TNF5M25-670M960-35N202.2[7.96]80[3.15]128[5.04]221[8.7]
TNF5M25-1.7G2-35N115.6[4.55]53[2.09]83[3.27]132[5.2]
TNF5M25-2000M2420-35N107.4[4.23]47[1.85]70[2.76]122[4.8]
TNF5M25-2.3G2.7-35N97.4[3.83]43[1.69]63.1[2.48]116[4.57]
TNF20M70-670M960-35N202.2[7.96]80[3.15]128[5.04]221[8.7]
TNF20M70-1.7G2-35N115.6[4.55]53[2.09]83[3.27]132[5.2]
TNF20M70-2000M2420-35N107.4[4.23]47[1.85]70[2.76]122[4.8]
TNF20M70-2.3G2.7-35N97.4[3.83]43[1.69]63.1[2.48]116[4.57]
TNF40M130-1.7G2-35N115.6[4.55]53[2.09]83[3.27]132[5.2]
TNF40M130-2.3G2.7-35N97.4[3.83]43[1.69]63.1[2.48]116[4.57]
TNF100M310-3.3G3.8-35S90[3.54]46[1.81]68[2.68]108[4.25]

Note:The size is subject to the specific specifications.
