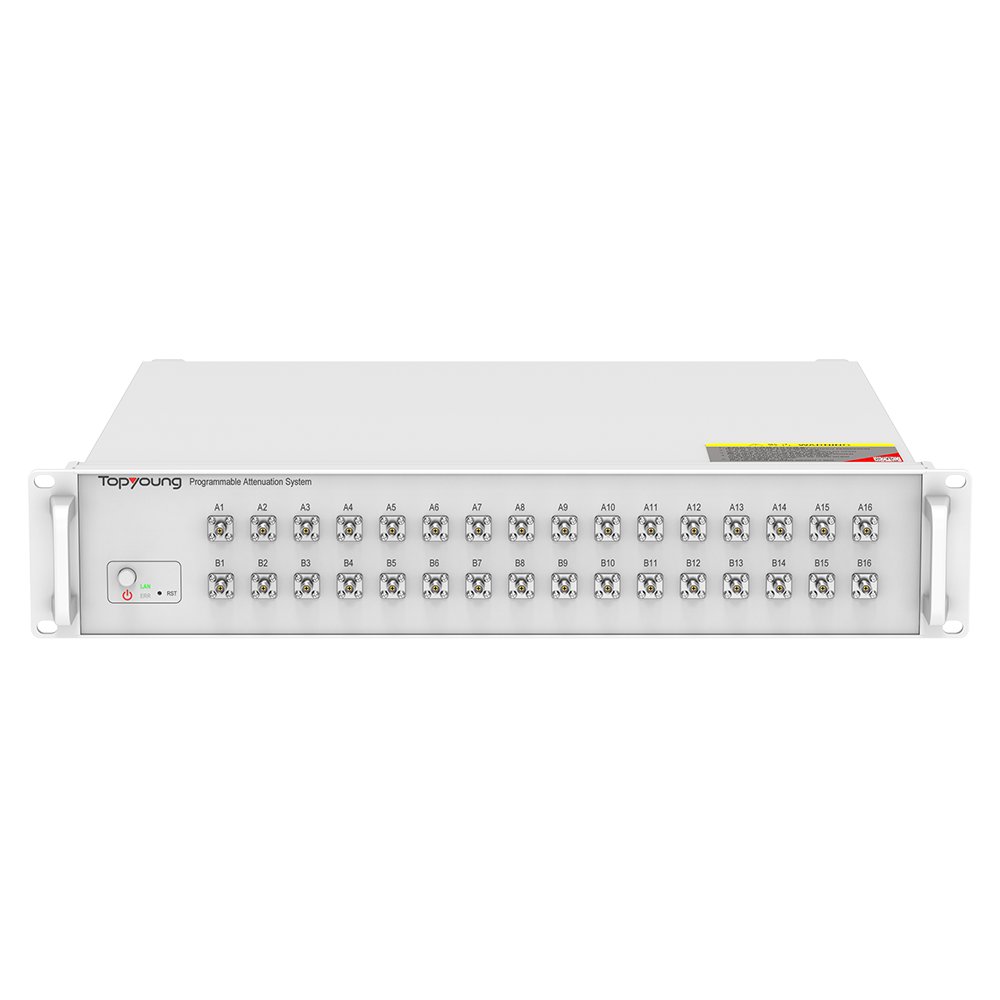

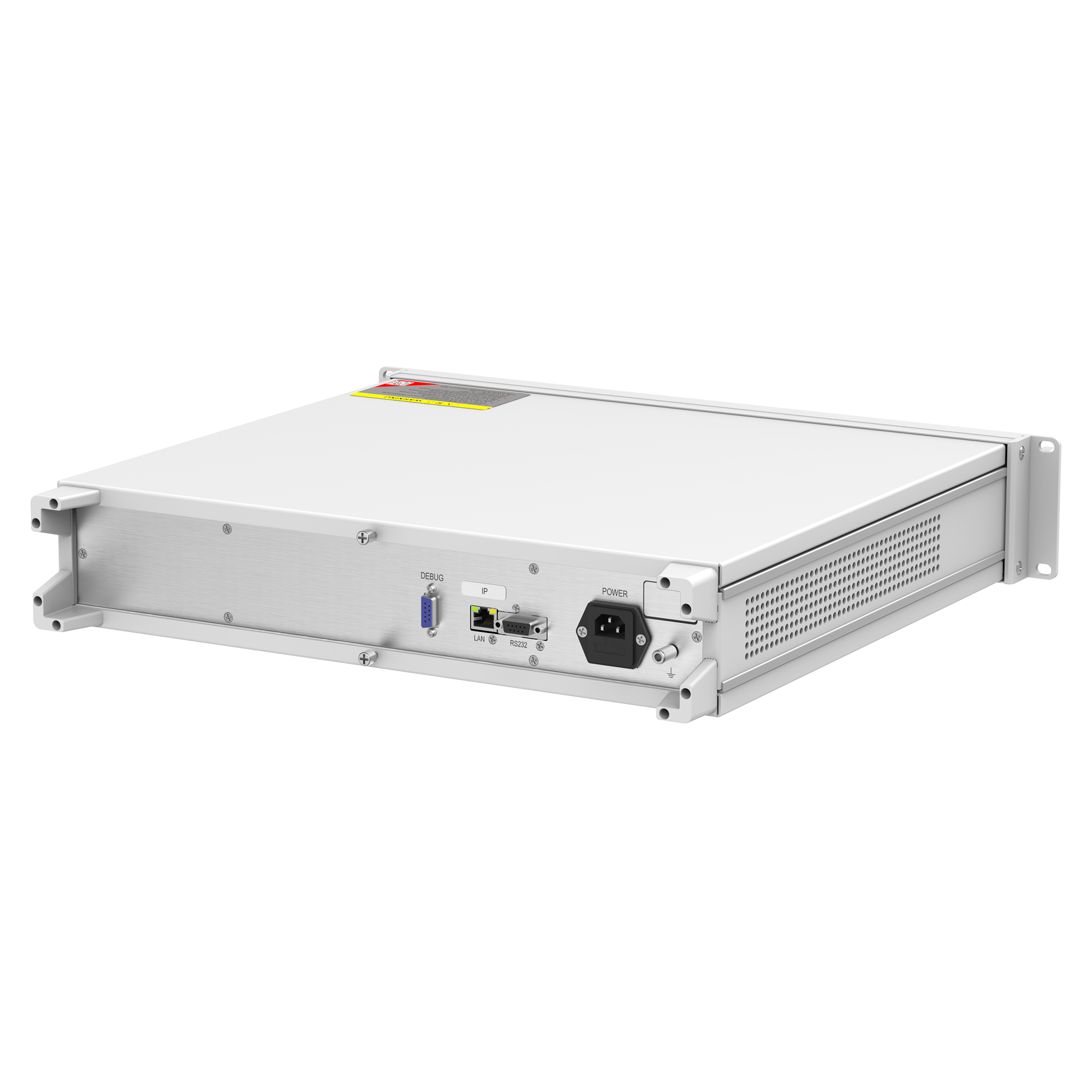

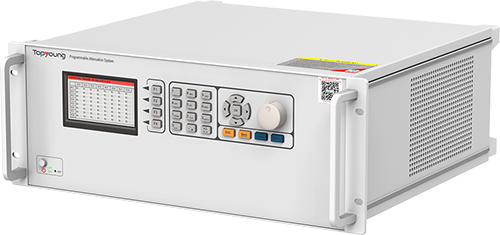

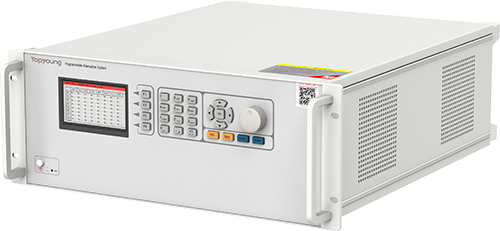

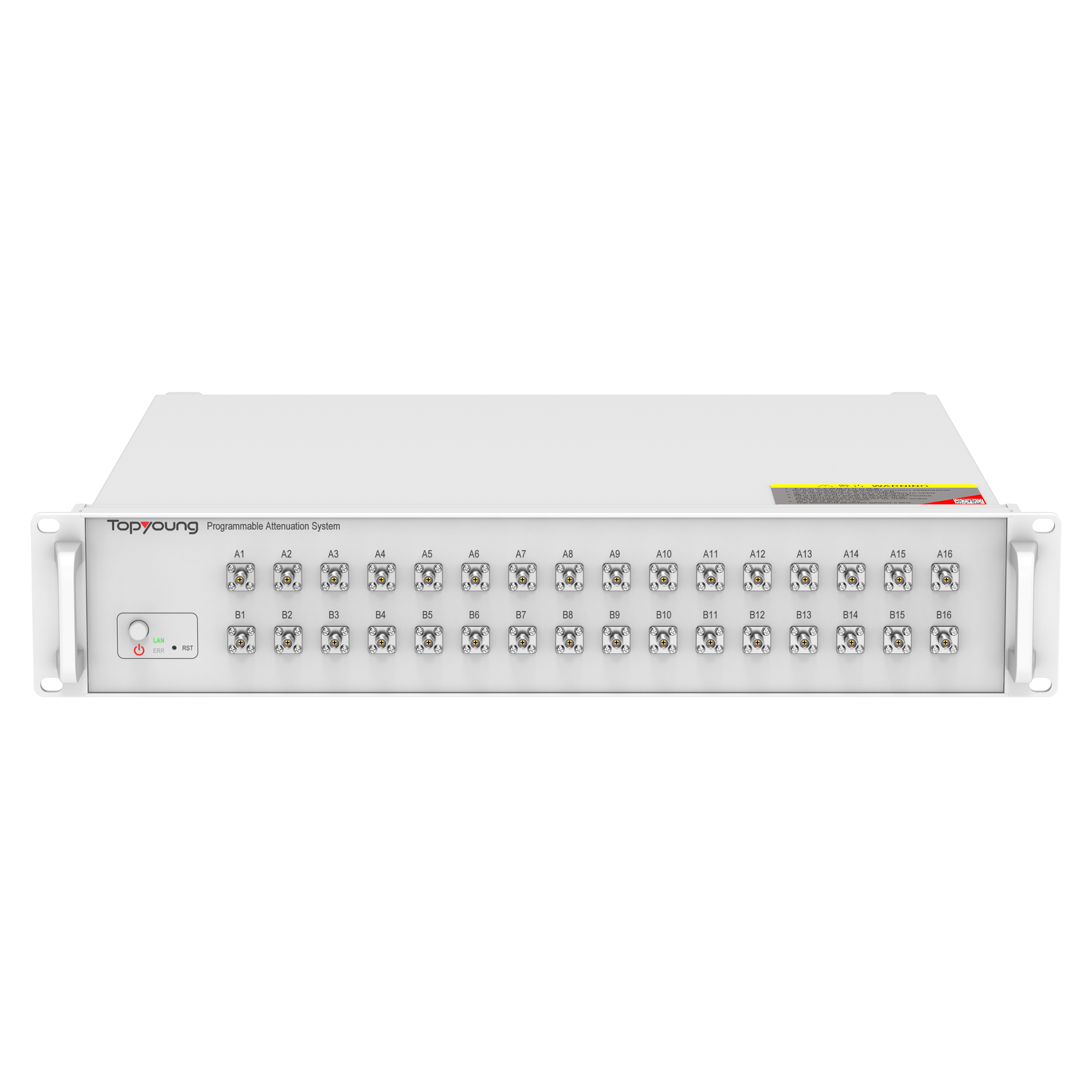

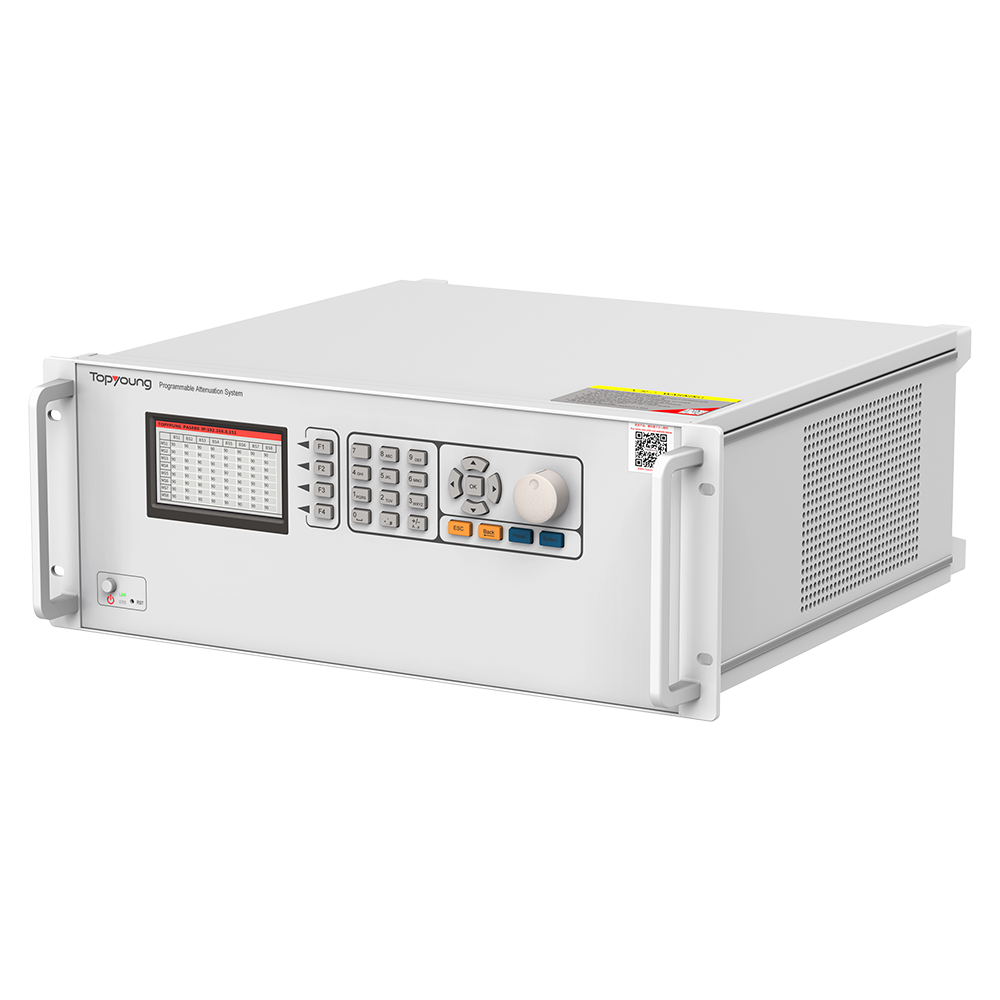

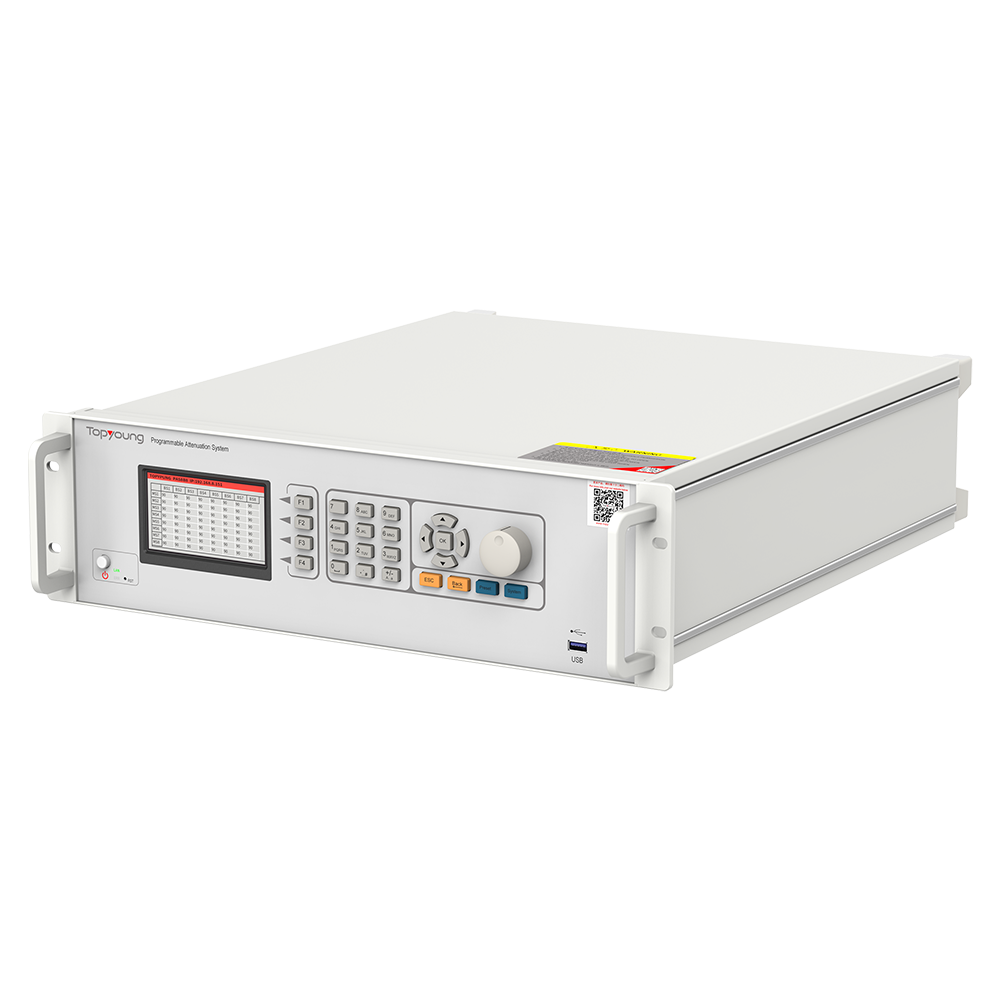

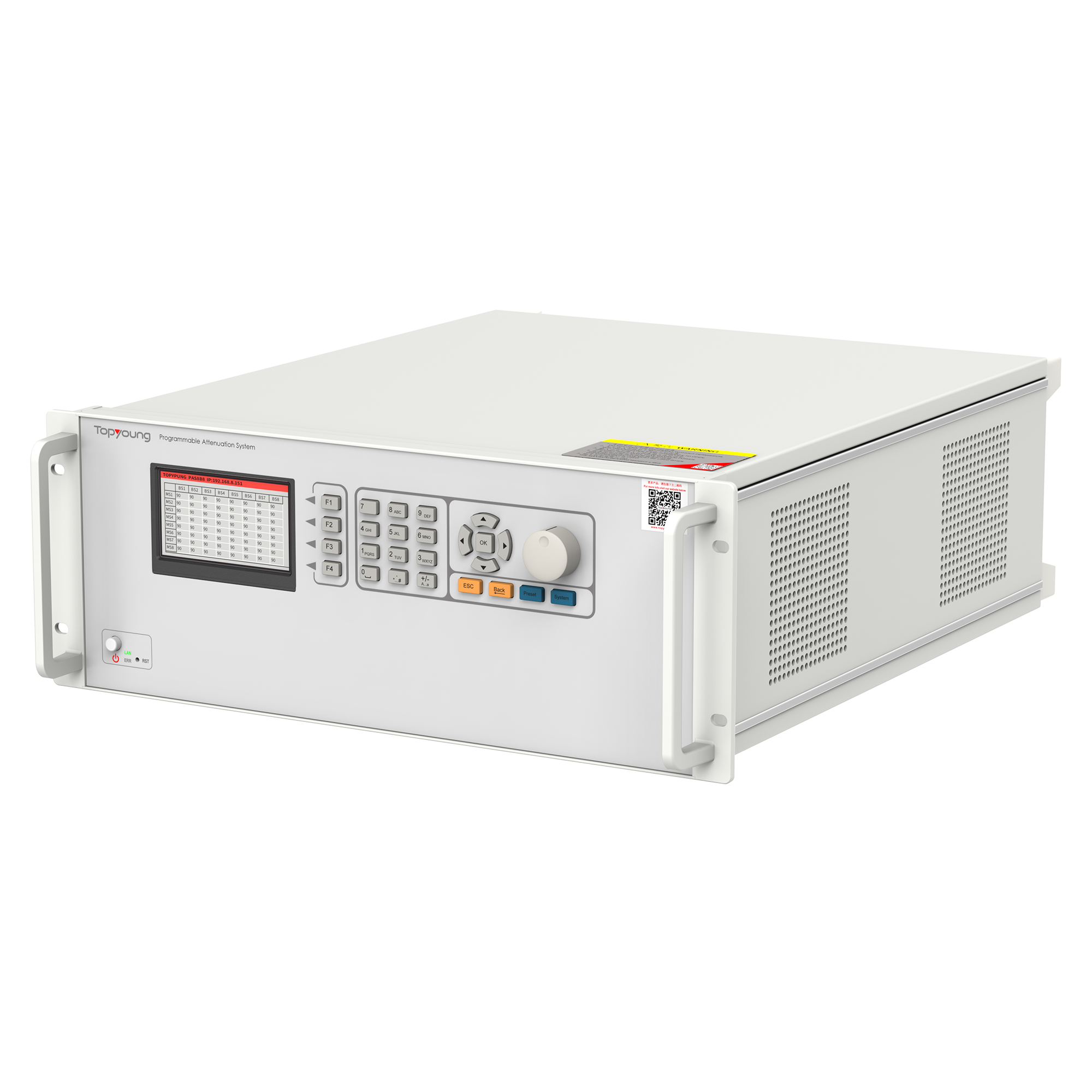

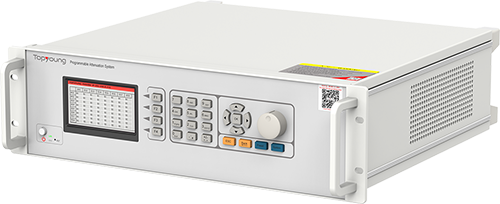

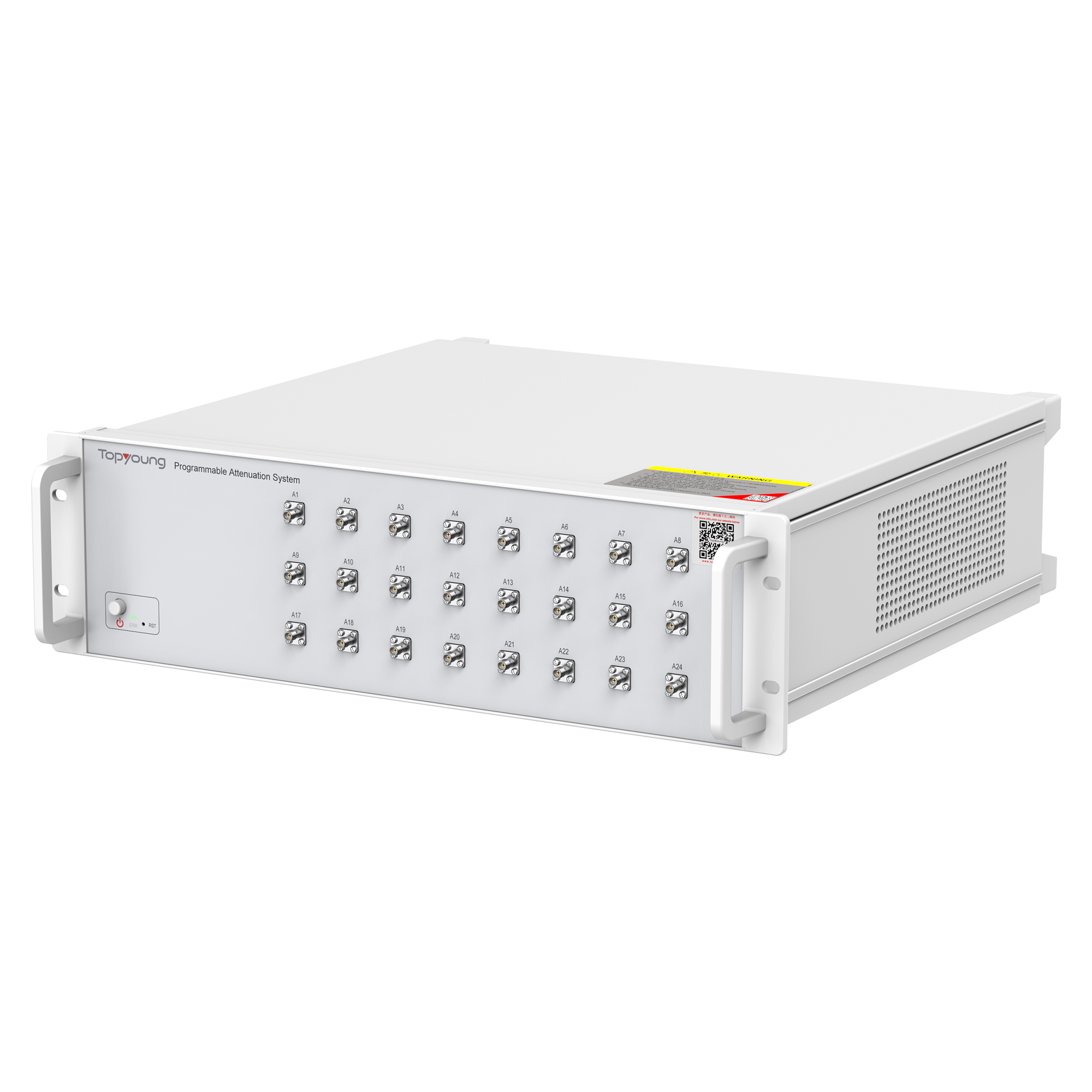

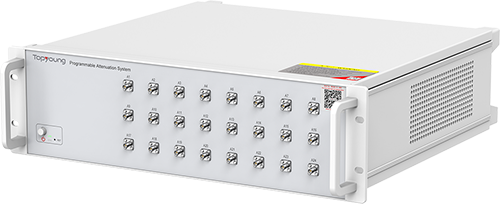

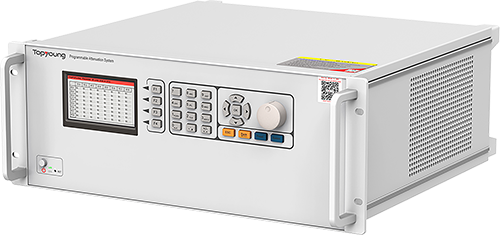

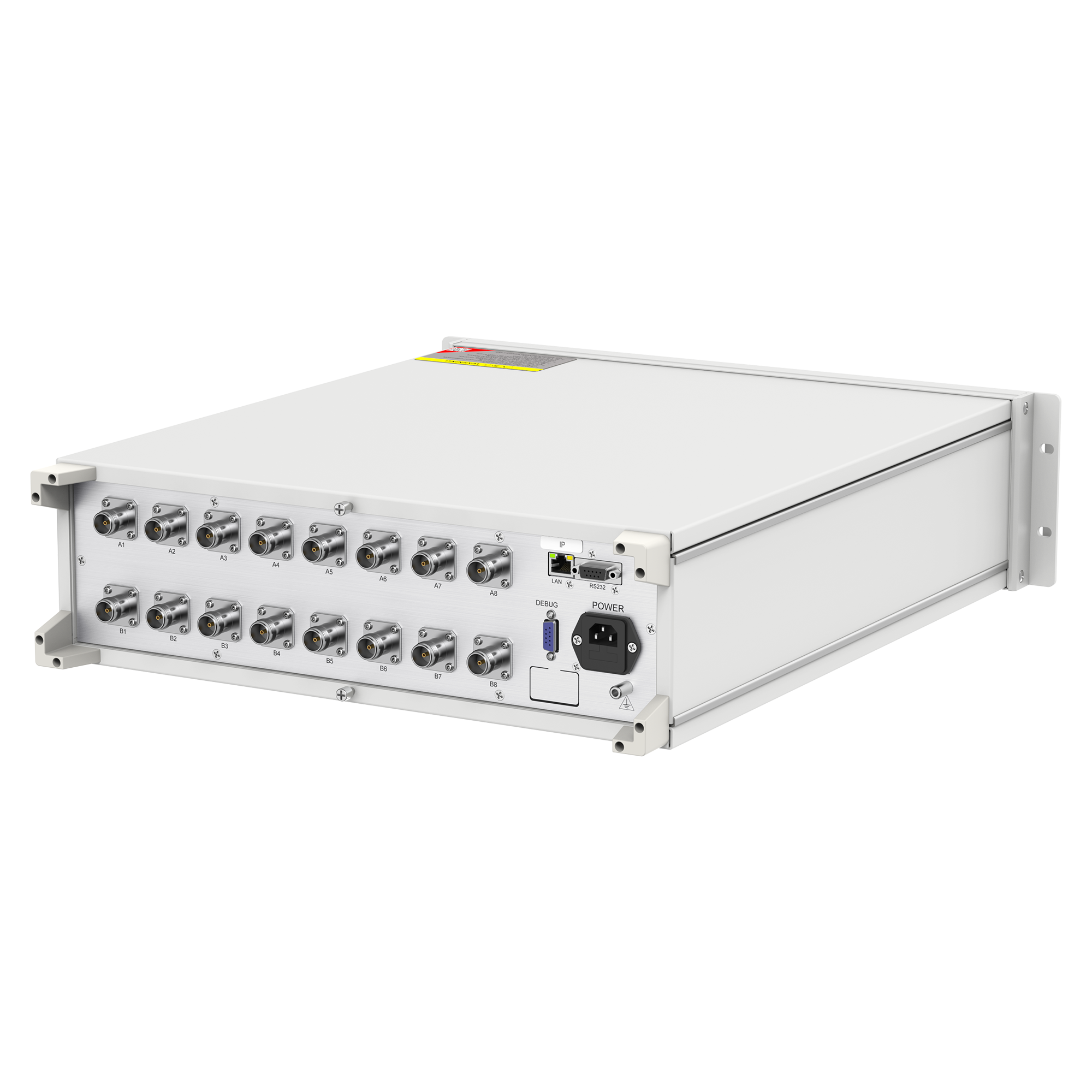

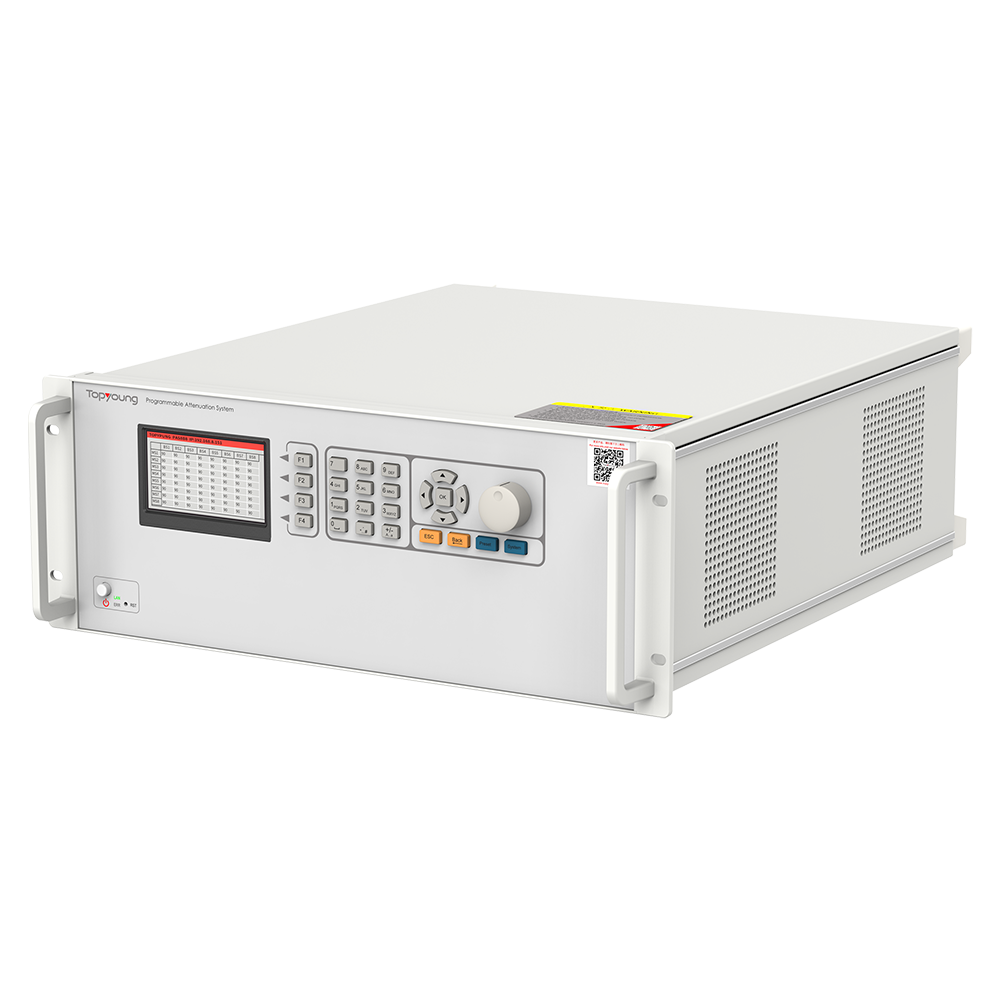

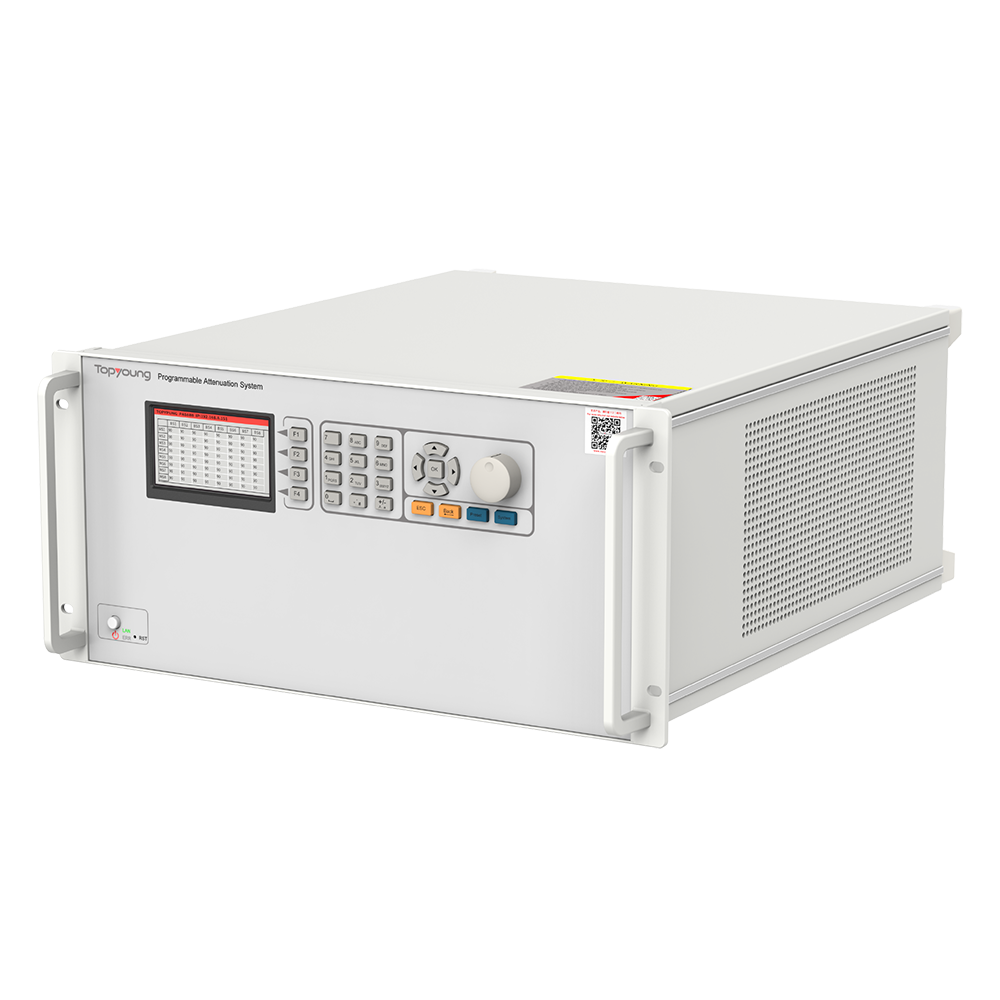

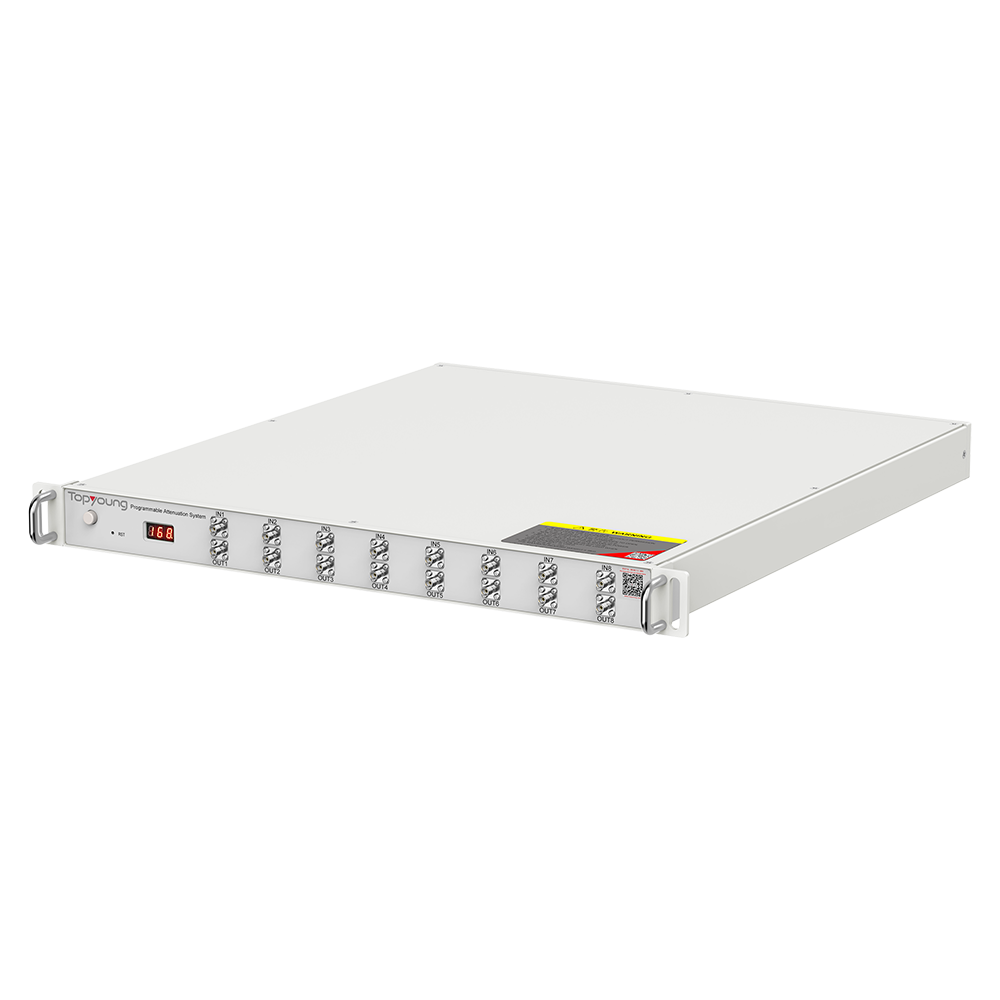

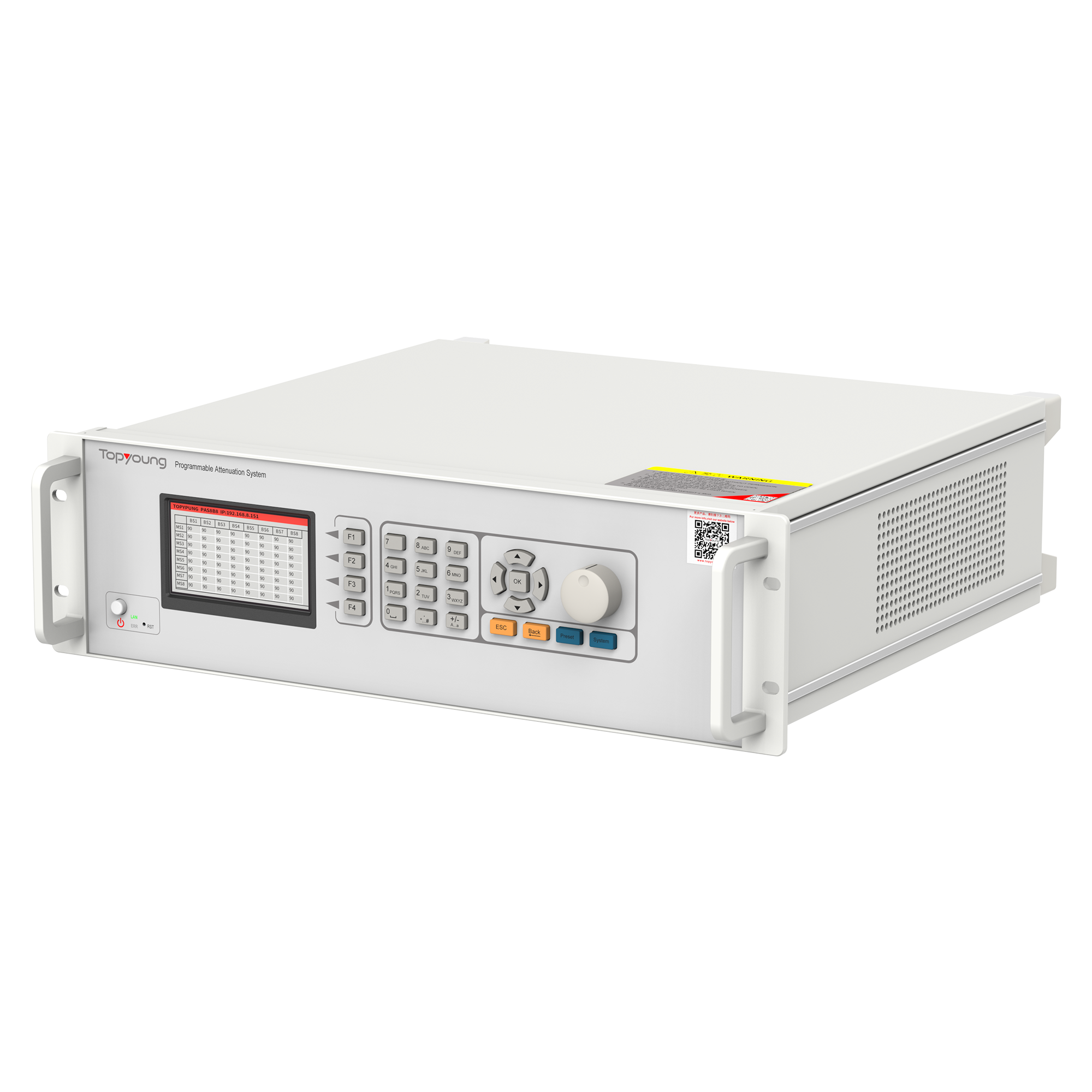

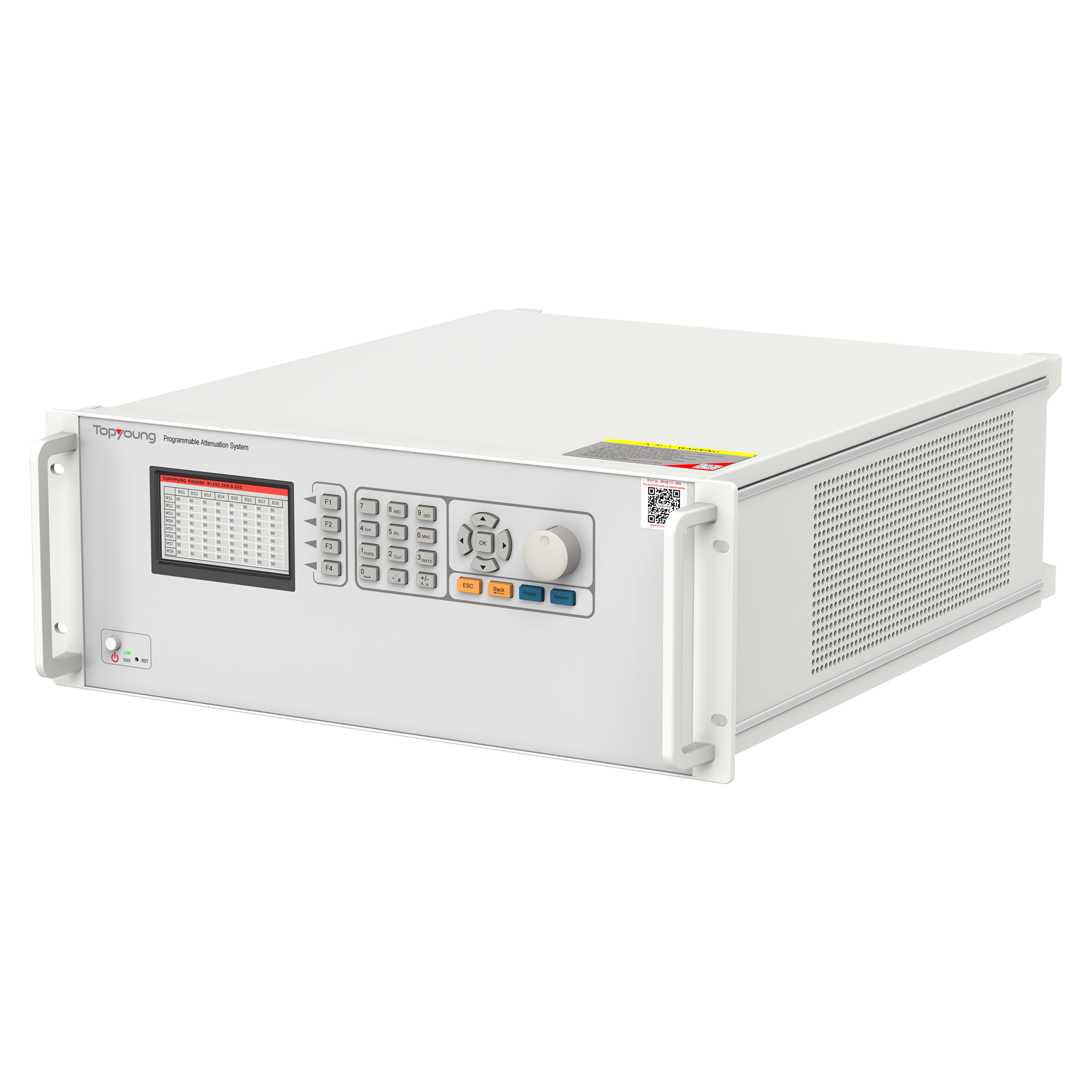

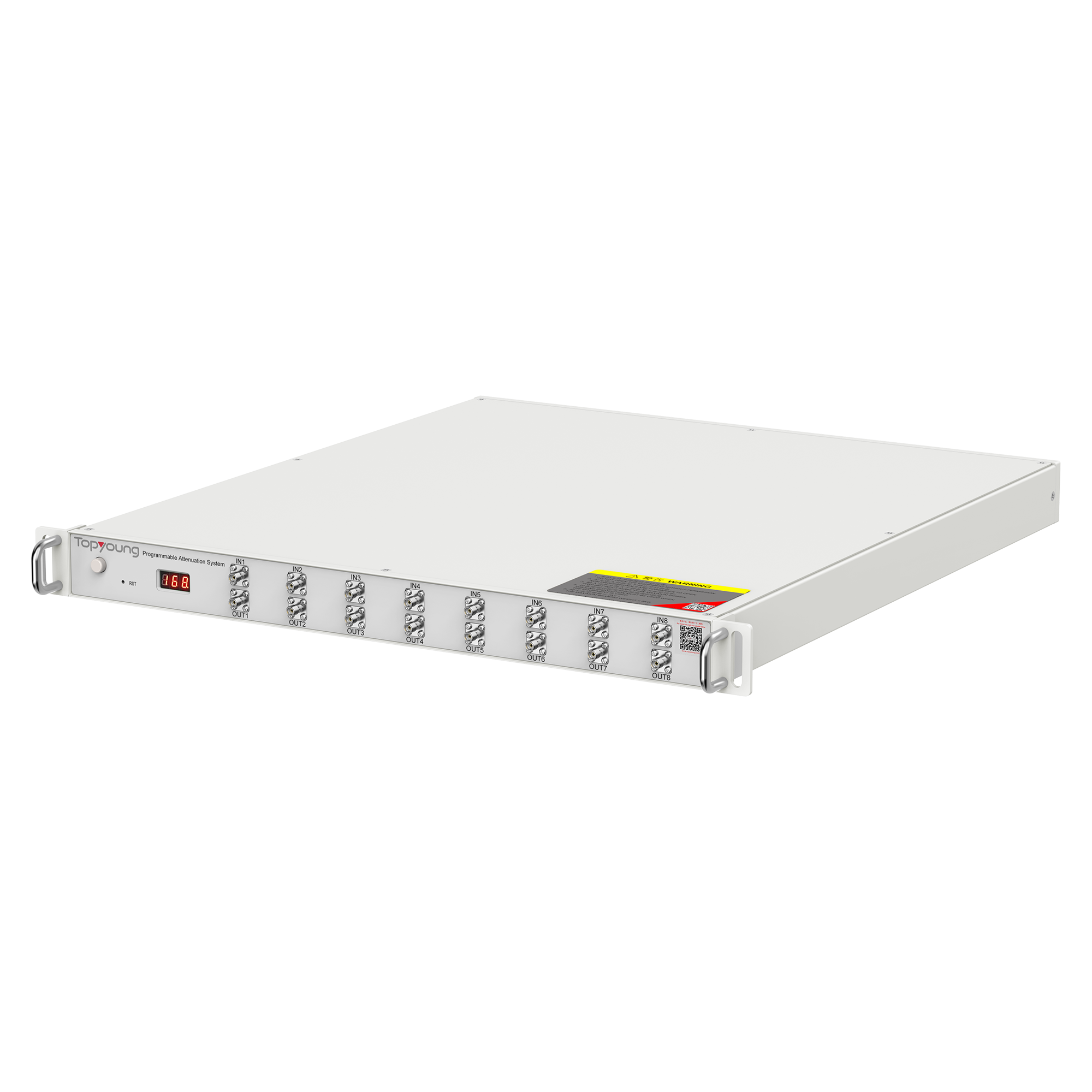

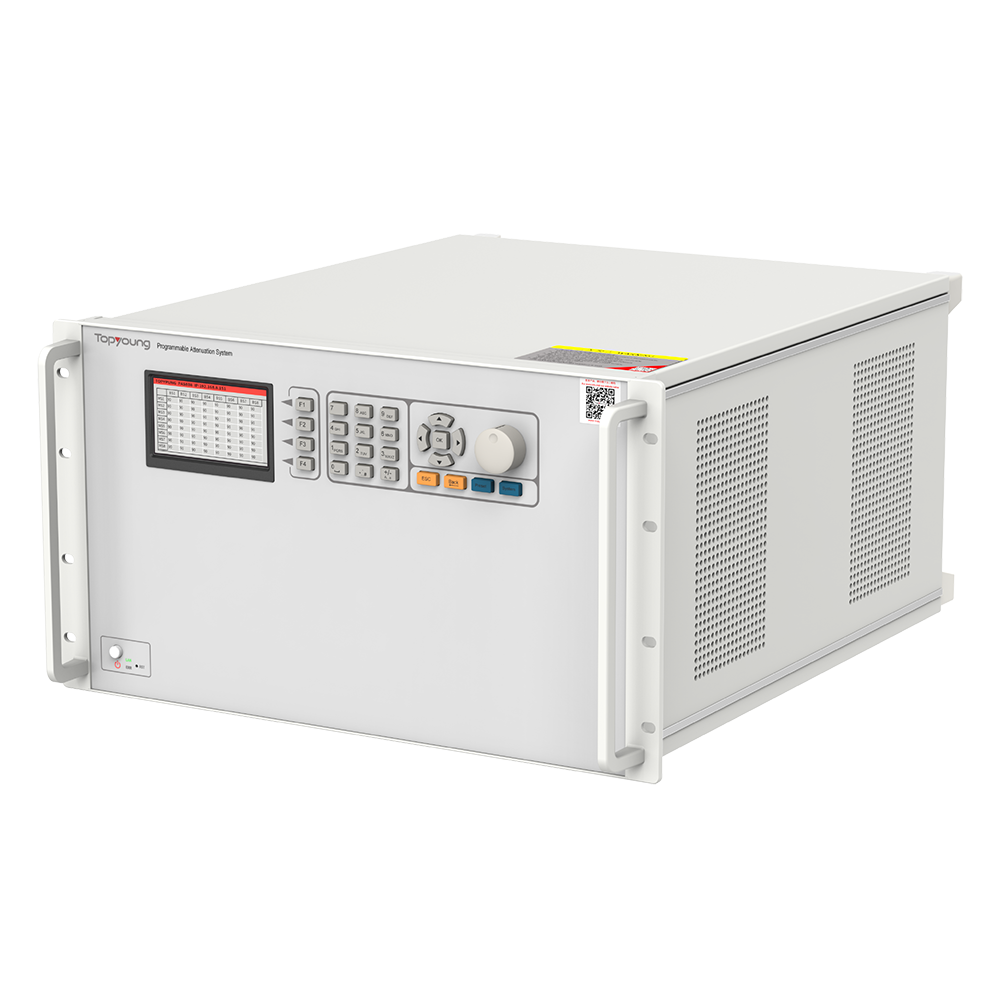

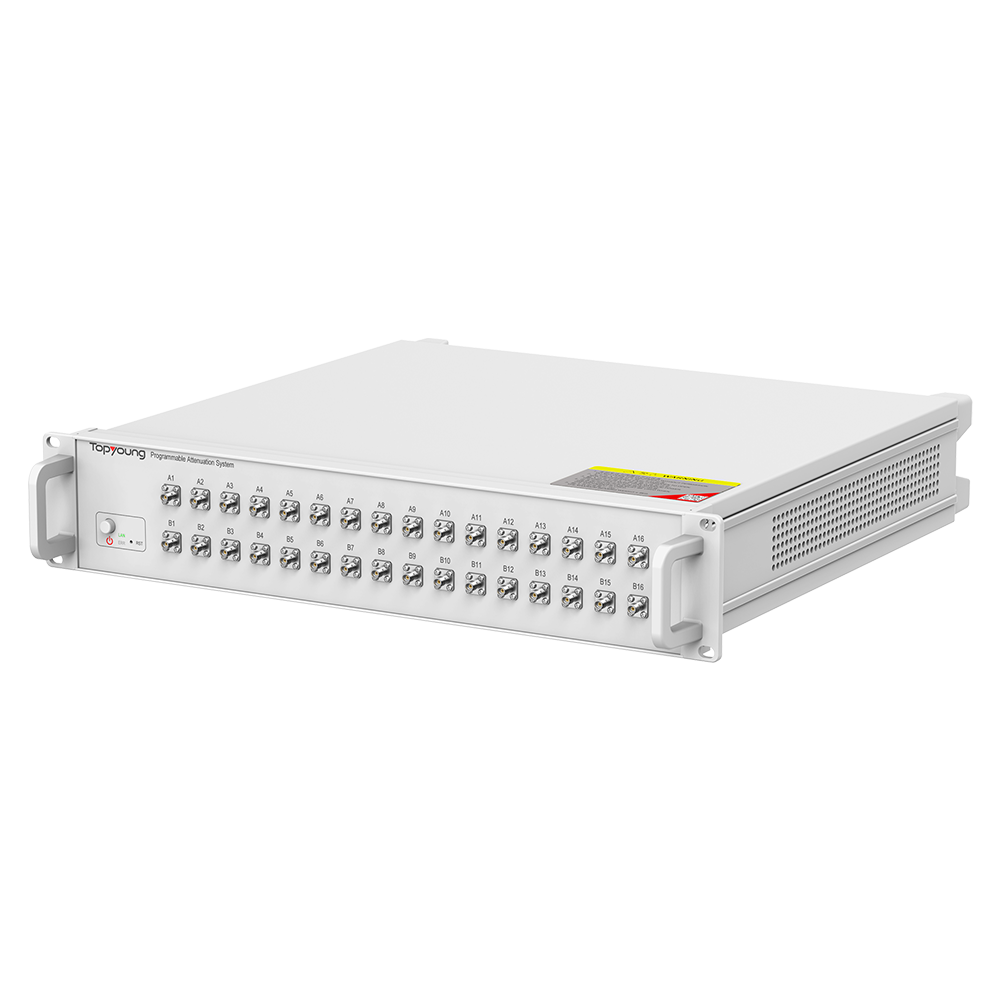

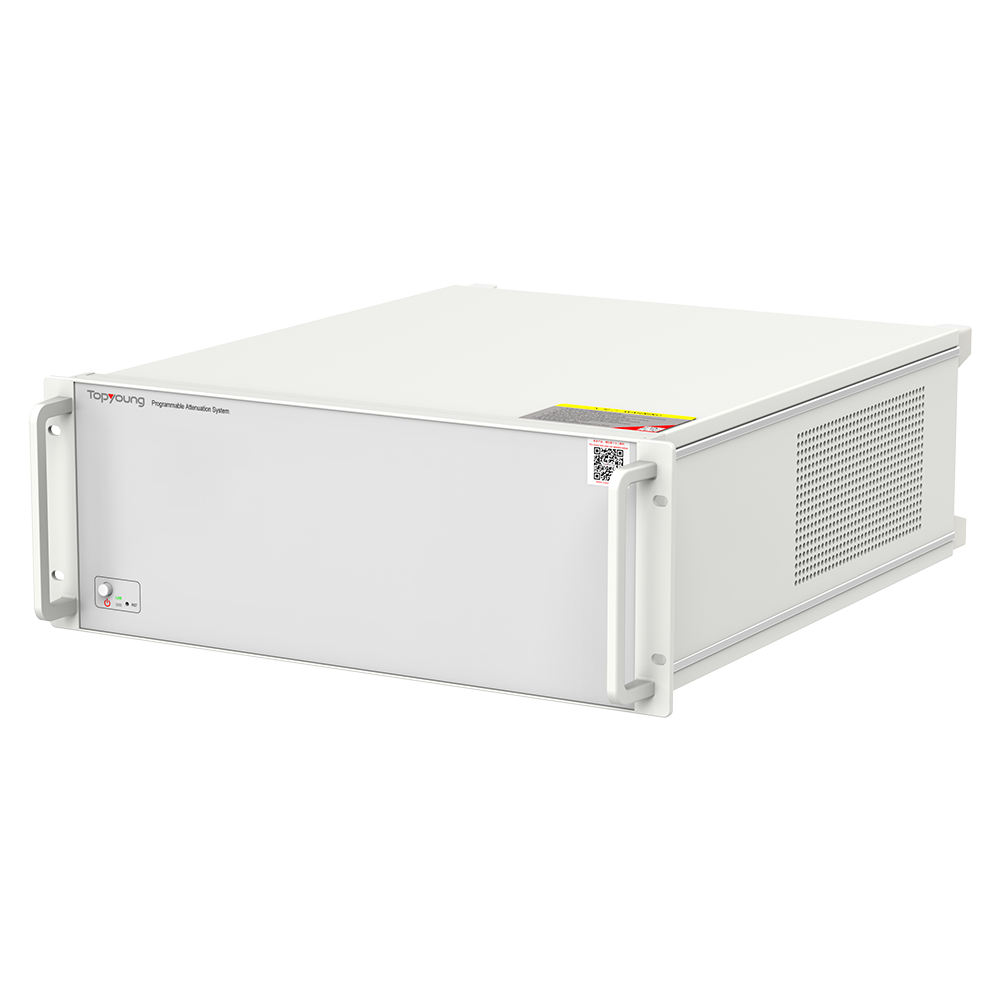

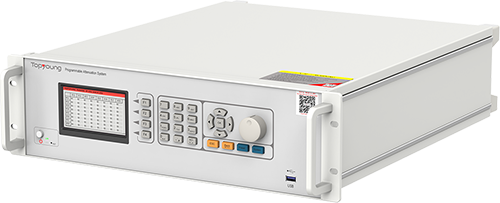

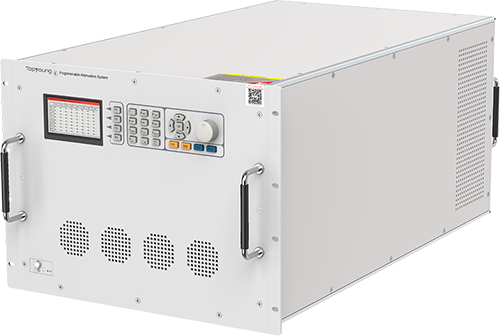

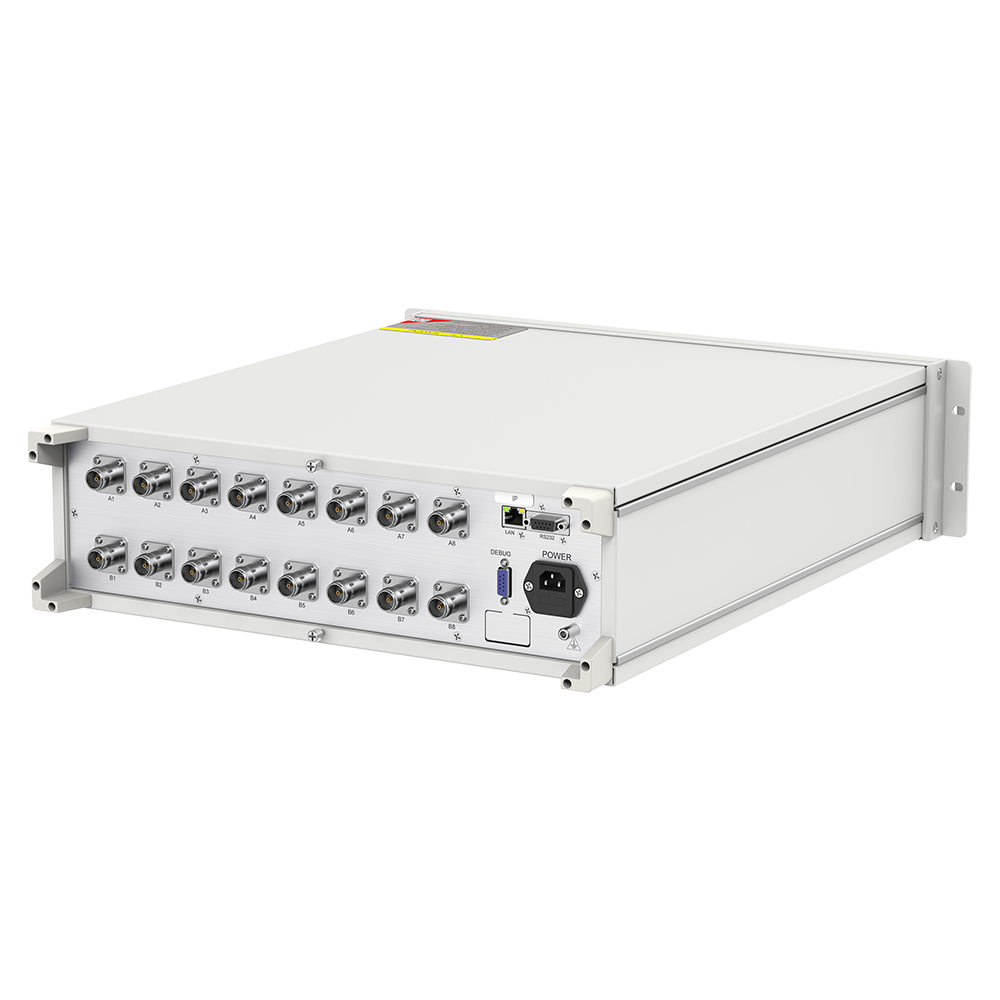

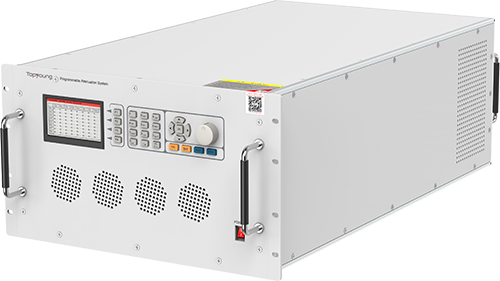

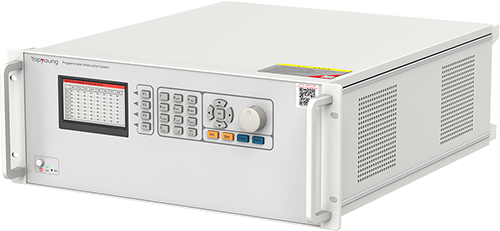

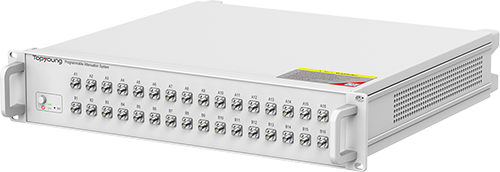

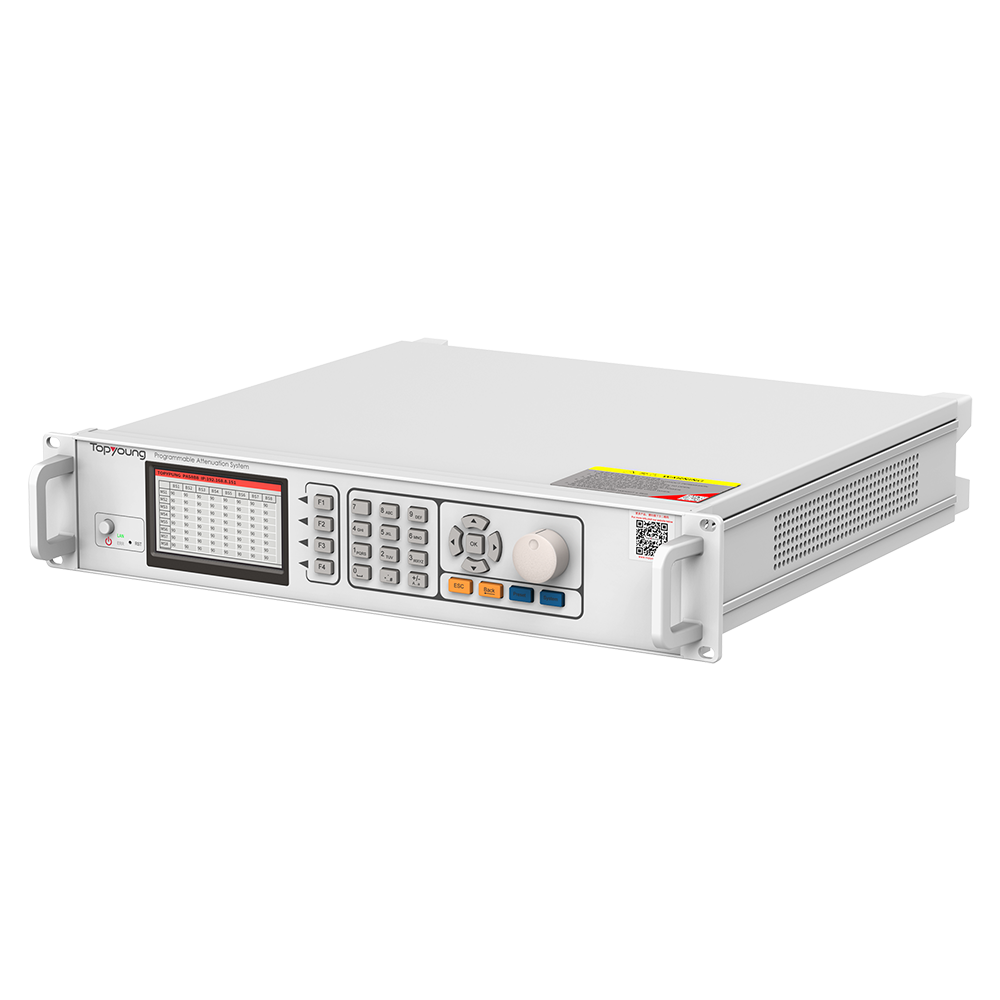

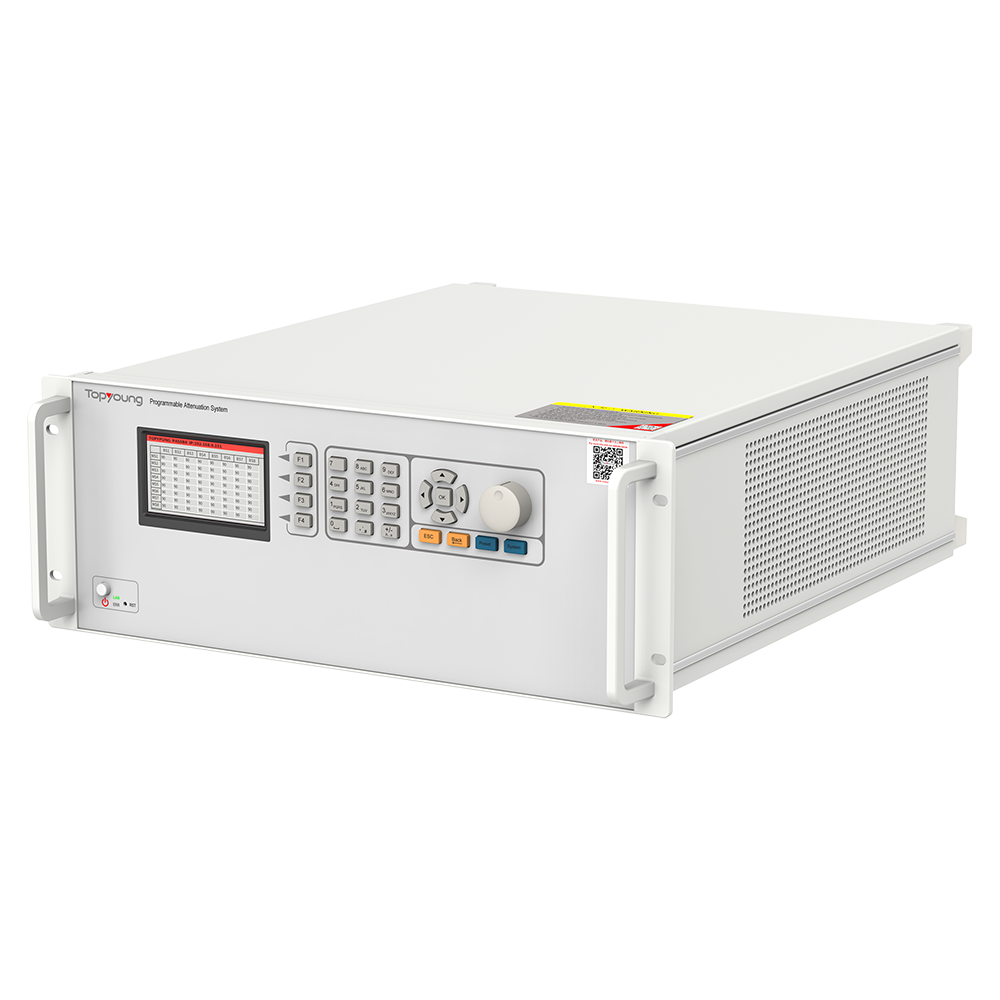

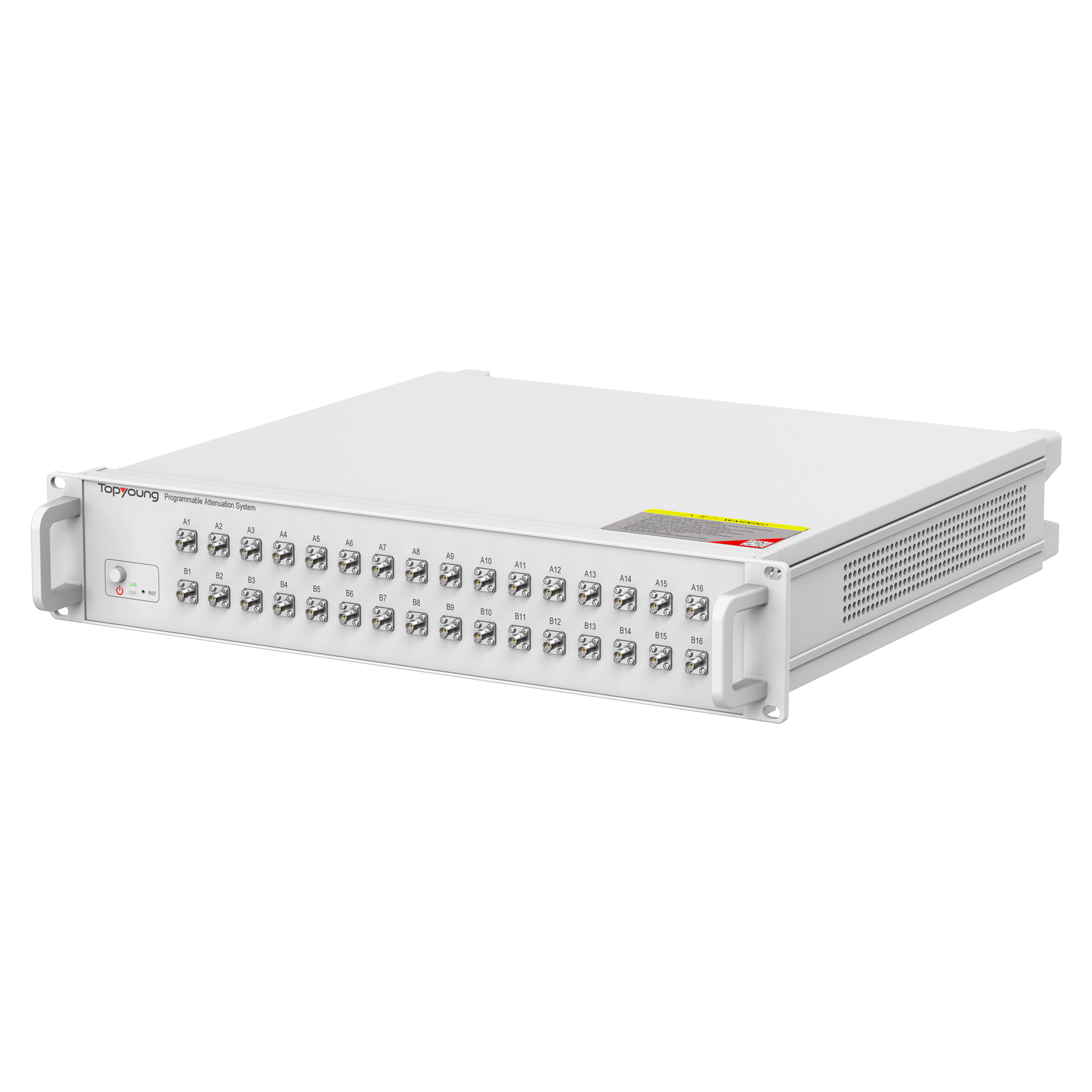

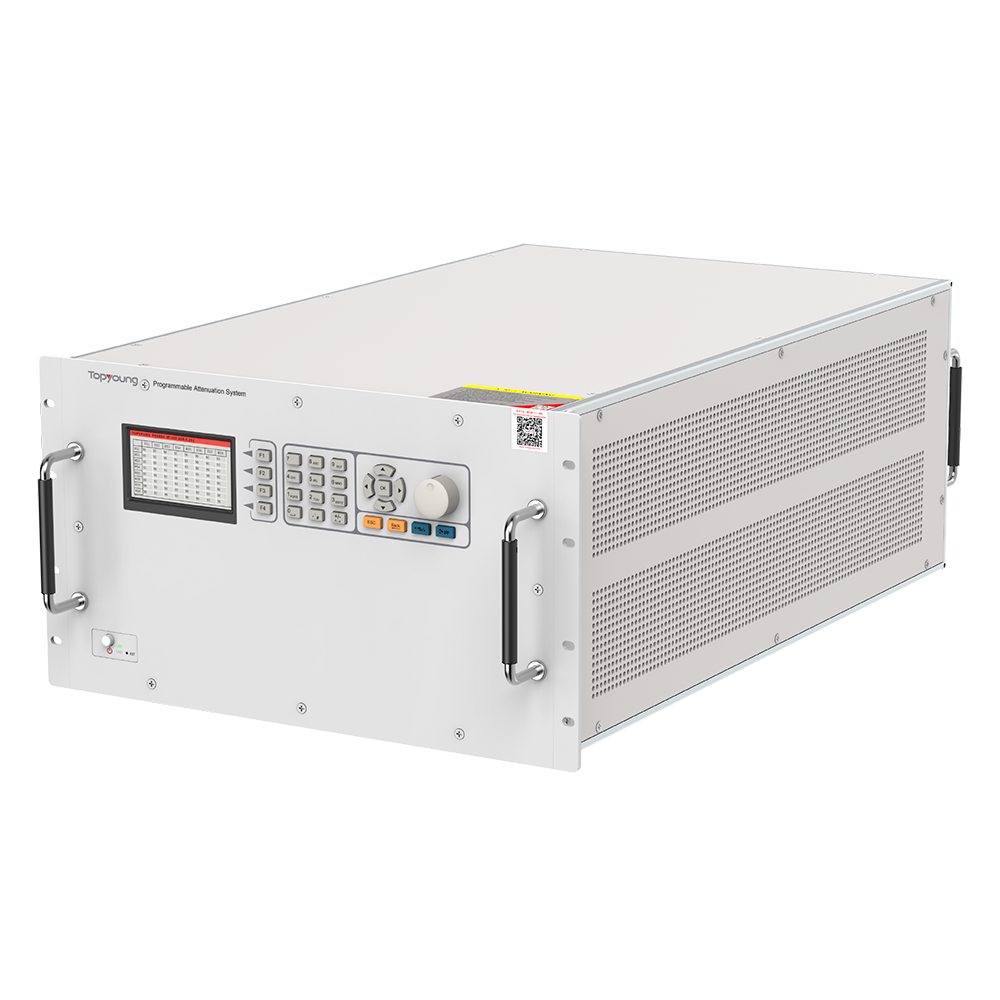

Rack-mounting Programmable Attenuation System

Views：3335+

Collection：7+

* Transparent transmission without analyzing any user information
* Arbitrary power control of thousands of independent RF channels
* Low loss, convenient for remote centralized control

Specification

TAS32B32

TAS32B8-

TAS16B16

TAS16B8-

TAS16B4-

TAS8B8-5

TAS8B8-2

TAS4T4-0

TAS4T4-0

TAS4T4-0

TAS8T8-0

TAS8T8-0

TAS8T8-0

TAS8T4-2

TAS16T16

TAS24T24

TAS32T8-

Quantity

Payment method

100% payment in advance

Related recommendation

mBn Matrix Series

Model	Description	Matrix Channels	Min. Freq. (GHz)	Max. Freq. (GHz)	Att. Range (dB)	Att. Step (dB)	Connector*
TAS32B32-51-90-0.5S-DES	Programmable Attenuator System,32x32	32x32	0.7	6	90	0.5	SMA
TAS32B16-51-90-0.5S-DES	Programmable Attenuator System,32x16	32x16	0.7	6	90	0.5	SMA
TAS32B8-51-90-1N-DES	Programmable Attenuator System,32x8	32x8	0.7	6	90	1	N
TAS16B16-51-90-0.5S-DES	Programmable Attenuator System,16x16	16x16	0.7	6	90	0.5	SMA
TAS16B8-0.6G6-90-0.5N-DES	Programmable Attenuator System,16x8	16x8	0.6	6	90	0.5	N
TAS16B4-51-120-0.5N-DES	Programmable Attenuator System,16x4	16x4	0.7	6	120	0.5	N
TAS8B8-51-120-0.5N-DES-U1	Programmable Attenuator System,8x8	8x8	0.7	6	120	1	N
TAS8B8-0.7G8.5-90-1S-DES	Programmable Attenuator System,8x8	8x8	0.7	8.5	90	1	SMA

mTn Connections Series

Model	Description	Matrix Channels	Min. Freq. (GHz)	Max. Freq. (GHz)	Att. Range (dB)	Att. Step (dB)	Connector*
TAS32T8-0.4G6-120-1N-DES	Programmable Attenuation System,32in 8out	32	0.4	6	120	1	N
TAS32T4-0.4G6-120-1N-DES	Programmable Attenuation System,32in 4out	32	0.4	6	120	1	N
TAS16T16-0.2G6-120-0.5S-DES	Programmable Attenuation System,16in 16out	16	0.2	6	120	0.5	SMA
TAS16T16-0.2G8.5-90-0.5S-DES	Programmable Attenuation System,16in 16out	16	0.2	8.5	90	0.5	SMA
TAS16T16-0.2G40-60-0.5S-DES	Programmable Attenuation System,16in 16out	16	0.2	40	60	0.5	2.92mm
TAS16T2-0.4G6-120-0.5N-DES	Programmable Attenuation System,16in 2out	16	0.4	6	120	0.5	SMA
TAS8T8-0.2G6-90-0.5N-DES	Programmable Attenuation System,8in 8out	8	0.2	6	90	0.5	SMA
TAS8T8-0.2G8.5-90-0.5S-DES	Programmable Attenuation System,8in 8out	8	0.2	8.5	90	0.5	SMA
TAS8T8-0.2G40-60-0.5S-DES	Programmable Attenuation System,8in 8out	8	0.2	40	60	0.5	2.92mm

*: All the products listed in the table are hot selling products and recommended products.

Customers can also put forward your actual needs according to the selection guidelines and communicate with us.

General SPEC

Power Supply/Consumption	86~240VAC/ 75W mBn series mBn series mBn series

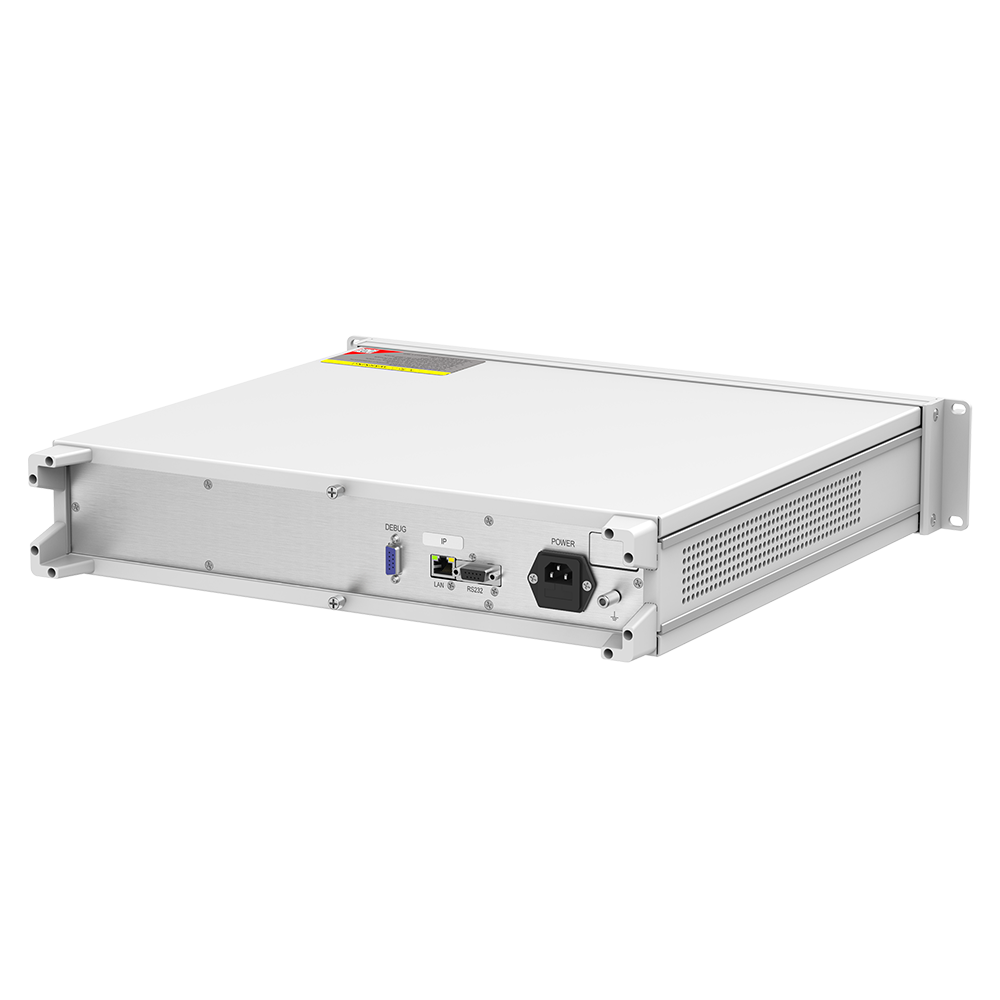

Control Interface	LAN / socket
Operating Temperature	0℃~40℃

Regulatory Compliance

European Union	EMC 2014/30/EU, EN 61326-1:2013 Low Voltage Directive 2014/35/EU Safety EN 61010-1:2010, AMD1:2016 RoHS Directive 2015/863/EU
USA	FCC CFR 47 PART 18:2021 FCC MP-5:1986

Software Function

GUI	Intuitively display and set the attenuation values of each channel.
Channel set value	Sets the value of the graph to satisfy the users’ various habits.
Automatic table data loop	Supports automatic table setting through the form of the table; user can set the start and end attenuation, step, the channel switching speed and the number of cycles. It can also be controlled by importing files (* .csv)
Port custom alias	You can create an alias for an RF port of a device, which helps you quickly understand the entire test link on the software interface.
API commands	Provides API commands for automated testing.
Graphical Simulation	The UE can be graphically simulated to move in each Cell according to the set path
