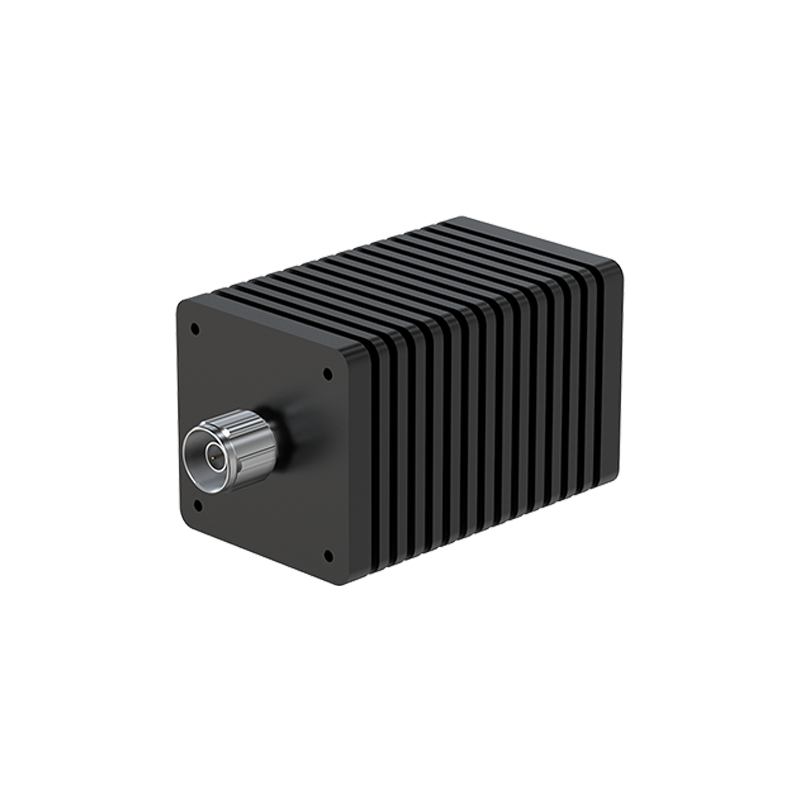

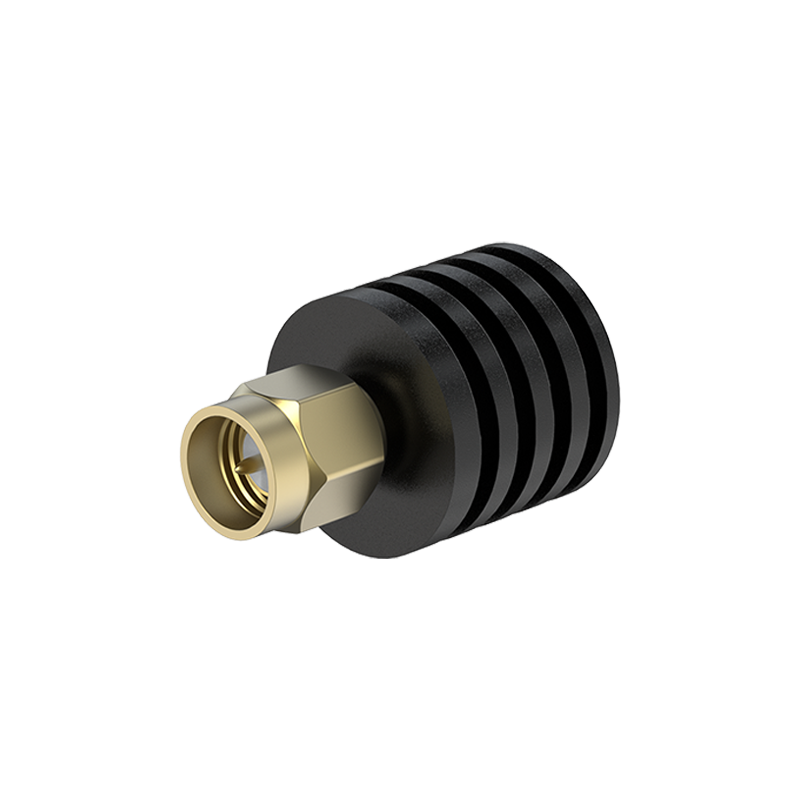

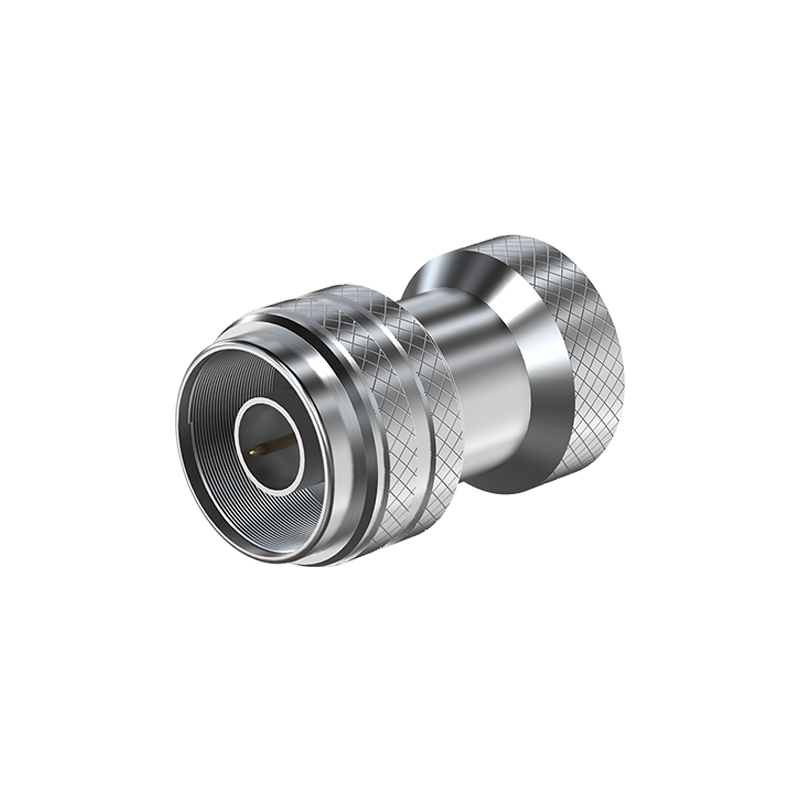

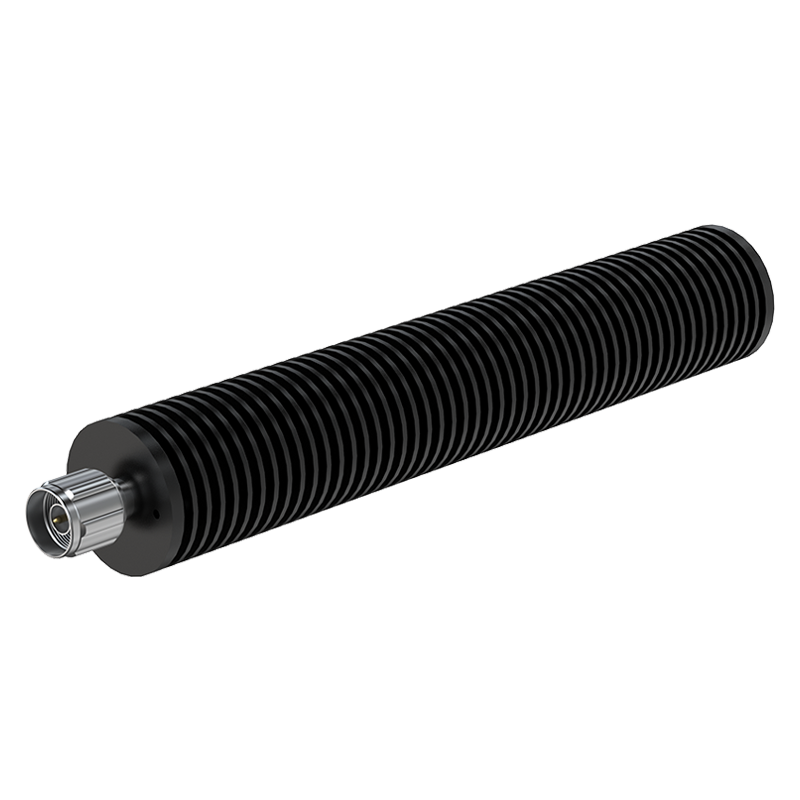

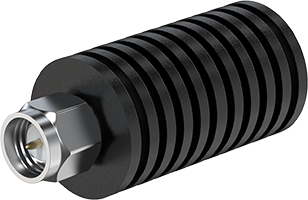

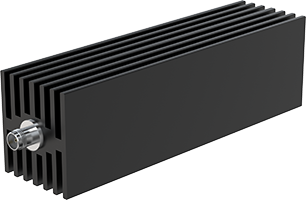

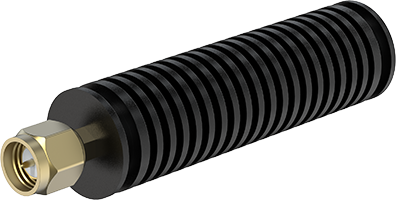

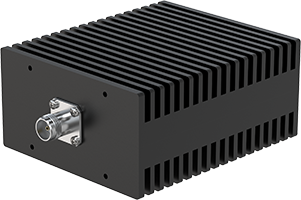

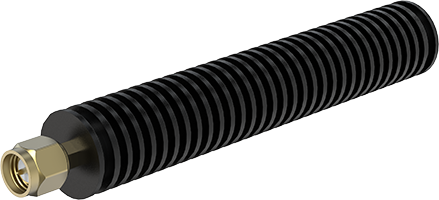

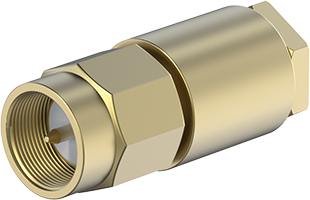

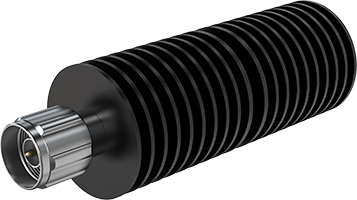

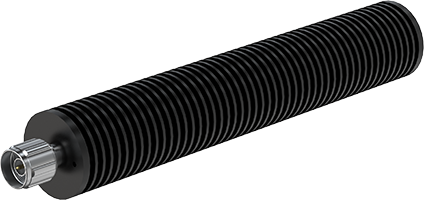

Termination

Views：3873+ Collection：0+

* Provide multi-power loads
* It has the characteristics of low standing wave and wide frequency range

Download the technical specifications of product series

Specification

TFZ0.5-4XM

TFZ0.5-18SM

TFZ0.5-40KM

TFZ0.5-67-1.85F

TFZ01-6NM

TFZ01-18NM

TFZ02-6SM

TFZ02-12.4SM

TFZ02-18SM

TFZ02-40KF

TFZ05-4SM

TFZ05-18XM

TFZ10-6SM

TFZ10-18SM

TFZ10-18NM

TFZ20-6SM

TFZ20-6NM

TFZ20-8SM

TFZ30-6SM

TFZ30-6NM

TFZ50-6NM

TFZ50S-6SF

TFZ50-18NF

TFZ100R-6NM

TFZ100S-18NM

TFZ150R-4NF

TFZ150-18NF

TFZ200-6NM

TFZ200S-18NM

TFZ250R-6NF

TFZ250R-18NF

Quantity

Payment method

100% payment in advance

Add to inquiry sheet Inquiry immediately

Related recommendation

Model	Power (dB)	Frequency Range (GHz)	VSWR	Connector
TFZ0.5-4XM	0.5	DC~4	1.2	SMA/N-Male
TFZ0.5-18SM	0.5	DC~3	1.1	SMA-Male
TFZ0.5-18SM	0.5	3~18	1.2	SMA-Male
TFZ0.5-40KM	0.5	DC~40	1.2	2.92mm-Male
TFZ0.5-67-1.85F	0.5	DC~67	1.45	1.85mm-Female
TFZ01-6NM	1	DC~6	1.2	N-Male
TFZ01-18NM	1	DC~18	1.25	N-Male
TFZ02-6SM	2	DC~6	1.2	SMA-Male
TFZ02-12.4SM	2	DC~12.4	1.3	SMA-Male
TFZ02-18SM	2	DC~8	1.25	N-Male
		8~12.4	1.3
		12.4~18	1.4
TFZ02-40KF	2	DC~40	1.2	2.92mm-Female
TFZ05-4SM	5	DC~4	1.2	SMA-Male
TFZ05-18XM	5	DC~6	1.2	SMA/N-Male
TFZ05-18XM	5	6~18	1.3	SMA/N-Male
TFZ10-6SM	10	DC~6	1.2	SMA-Male
TFZ10-18SM	10	DC~8	1.25	SMA-Male
		8~12.4	1.35
		12.4~18	1.4
TFZ10-18NM	10	DC~8	1.25	N-Male
		8~12.4	1.3
		12.4~18	1.35
TFZ20-6SM	20	DC~6	1.2	SMA-Male
TFZ20-6NM	20	DC~6	1.2	N-Male
TFZ20-8SM	20	DC~8	1.25	SMA-Male
TFZ30-6SM	30	DC~6	1.2	SMA-Male
TFZ30-6NM	30	DC~6	1.2	N-Female
TFZ50-6NM	50	DC~6	1.25	N-Male
TFZ50S-6SF	50	DC~4	1.2	SMA-Female
TFZ50S-6SF	50	4~6	1.25	SMA-Female
TFZ50-18NF	50	DC~6	1.25	N-Female
		6~12.4	1.35
		12.4~18	1.4
TFZ100R-6NM	100	DC~6	1.25	N-Male
TFZ100S-18NM	100	DC~4	1.25	N-Male
		4~6	1.35
		6~12.4	1.4
		12.4~18	1.45
TFZ150R-4NF	150	DC~4	1.25	N-Female
TFZ150-18NF	150	DC~8	1.25	N-Female
		8~12.4	1.35
		12.4~18	1.45
TFZ200-6NM	200	DC~6	1.2	N-Male
TFZ200S-18NM	200	DC~8	1.25	N-Male
		8~12.4	1.35
		12.4~18	1.45
TFZ250R-6NF	250	DC~6	1.25	N-Female
TFZ250R-18NF	250	DC~4	1.2	N-Female
		4~8	1.25	N-Female
		8~12.4	1.3
		12.4~18	1.4

Model	A mm[inch]	B mm[inch]
TFZ0.5-4SM	16.3[0.54]	ф7.9[0.31]
TFZ0.5-18SM	15[0.59]	ф6.3[0.25]
TFZ02-6SM	11[0.43]	ф9[0.35]
TFZ02-12.4SM	13[0.51]	ф9[0.35]
TFZ02-18SM	21[0.83]	ф9[0.35]
TFZ02-40KM	12.8[0.5]	Ф6.5[0.26]

Model	A mm[inch]	B mm[inch]
TFZ02-40KF	11.9[0.47]	ф3.5[0.14]

Model	A mm[inch]	B mm[inch]
TFZ0.5-67-1.85F	16.7[0.66]	Ф7[0.28]

Model	A mm[inch]	B mm[inch]
TFZ0.5-4NM	30[1.18]	ф20[0.79]
TFZ01-6NM	32[1.26]	ф20.5[0.8]
TFZ01-18NM	32[1.26]	ф20.5[0.8]

Model	A mm[inch]	B mm[inch]
TFZ05-4SM	24[0.94]	ф15.5[0.61]
TFZ05-18SM	21[0.83]	ф19[0.75]
TFZ10-6SM	36[1.42]	ф15.8[0.62]
TFZ10-18SM	36[1.42]	ф15.8[0.62]
TFZ20-6SM	39.5[1.56]	ф38[1.5]
TFZ20-8SM	65[2.56]	ф15[0.59]
TFZ30-6SM	81[3.19]	ф17[0.67]

Model	A mm[inch]	B mm[inch]	C mm[inch]
TFZ50S-6SF	90[3.54]	60[2.36]	60[2.36]
TFZ200S-18NM	211.4[8.32]	50 [1.97]	50 [1.97]

Model	A mm[inch]	B mm[inch]	C mm[inch]
TFZ100R-6NM	146[5.75]	60[2.36]	100[3.94]

Model	A mm[inch]	B mm[inch]
TFZ50-18NF	85[3.34]	ф38[1.5]
TFZ150-18NF	210[8.27]	ф41[1.61]

Model	A mm[inch]	B mm[inch]	C mm[inch]
TFZ150R-4NF	161[6.34]	65[2.56]	120[4.72]
TFZ250R-4NF	228[8.98]	83[3.27]	76[2.99]
TFZ250R-18NF	228[8.98]	83[3.27]	76[2.99]
