Power Divider

Views：5743+ Collection：1+

* Frequency range: covering 0.1~50GHz
* Provide a variety of shunt forms
* Low standing wave, low loss, high isolation

Download the technical specifications of product series

Specification
  • TPD-0.4G
  • TPD-0.4G
  • TPD-51-2
  • TPD-51-2
  • TPD-18-2
  • TPD-21-2
  • TPD-26-2
  • TPD-24G4
  • TPD-18G5
  • TPD-0.4G
  • TPD-0.4G
  • TPD-51-4
  • TPD-51-4
  • TPD-18-4
  • TPD-23-4
  • TPD-26-4
  • TPD-24G4
  • TPD-18G5
  • TPD-0.4G
  • TPD-0.4G
  • TPD-51-8
  • TPD-51-8
  • TPD-18-8
  • TPD-21-8
  • TPD-23-8
  • TPD-26-8
  • TPD-24G4
  • TPD-18G4
  • TPD-0.4G
  • TPD-0.4G
  • TPD-51-1
  • TPD-18-1
  • TPD-23-1
  • TPD-6G26
  • TPD-18G2
  • TPD-18G4
Quantity
Payment method
100% payment in advance
Add to inquiry sheet Inquiry immediately

Related recommendation

ModelType

Frequency Range

(GHz)

Input

VSWR

Output

 VSWR

Insertion Loss

(dB)*

Isolation

(dB)

Amplitude

Balance

(dB)

Average

Power

(W)

Connector

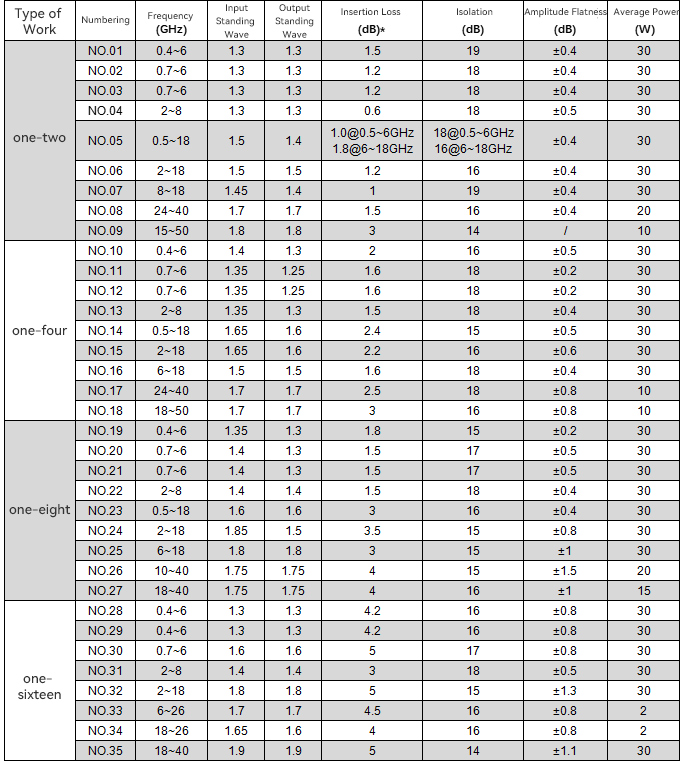

TPD-0.4G6-2S2-way Power Divider0.4-61.31.31.518
±0.430SMA-Female
TPD-0.4G6-2N2-way Power Divider0.4-61.31.31.518
±0.430N-Female
TPD-51-2S2-way Power Divider0.7-61.31.31.018±0.430SMA-Female
TPD-51-2N2-way Power Divider0.7-61.31.31.018±0.430N-Female
TPD-18-2S2-way Power Divider2-81.31.20.620±0.330SMA-Female
TPD-21-2S2-way Power Divider0.5-181.51.4

1.8

16

±0.430SMA-Female
TPD-26-2S2-way Power Divider8-181.451.41.019±0.230SMA-Female
TPD-24G40-2K2-way Power Divider24-402.02.01.815±0.4102.92mm-Female
TPD-18G50-2K2-way Power Divider18-501.81.82.016±0.6102.92mm-Female
TPD-0.4G6-4S4-way Power Divider0.4-61.41.32.016±0.530SMA-Female
TPD-0.4G6-4N4-way Power Divider0.4-61.41.352.016±0.530N-Female
TPD-51-4S4-way Power Divider0.7-61.351.251.218±0.550SMA-Female
TPD-51-4N4-way Power Divider0.7-61.41.352.018±0.230N-Female
TPD-18-4S4-way Power Divider2-81.41.351.217±0.430SMA-Female
TPD-23-4S4-way Power Divider2-181.651.62.216±0.630SMA-Female
TPD-26-4S4-way Power Divider8-181.61.61.418±0.330SMA-Female
TPD-24G40-4K4-way Power Divider24-401.71.72.718±0.7202.92mm-Female
TPD-18G50-4K4-way Power Divider18-501.81.82.815±0.6152.92mm-Female
TPD-0.4G6-8S8-way Power Divider0.4-61.351.33.515±0.230SMA-Female
TPD-0.4G6-8N8-way Power Divider0.4-61.451.43.016±0.530N-Female
TPD-51-8S8-way Power Divider0.7-61.41.31.518±0.530SMA-Female
TPD-51-8N8-way Power Divider0.7-61.451.42.016±0.530N-Female
TPD-18-8S8-way Power Divider2-81.41.41.518±0.430SMA-Female
TPD-21-8S8-way Power Divider0.5-182.252.256.013±0.830SMA-Female
TPD-23-8S8-way Power Divider2-181.851.52.515±0.830SMA-Female
TPD-26-8S一8-way Power Divider8-181.61.52.617±0.430SMA-Female
TPD-24G40-8K8-way Power Divider24-401.71.73.818±0.8202.92mm-Female
TPD-18G50-8K8-way Power Divider18-401.81.82.814±0.8202.92mm-Female
TPD-0.4G6-16S16-way Power Divider0.4-61.51.454.018±0.530SMA-Female
TPD-0.4G6-16N16-way Power Divider0.4-61.51.454.016±0.530N-Female
TPD-51-16S16-way Power Divider0.7-61.451.43.518±0.830SMA-Female
TPD-18-16S16-way Power Divider2-81.41.43.018±0.530SMA-Female
TPD-23-16S16-way Power Divider2-181.81.87.015±1.010SMA-Female
TPD-6G26-16S16-way Power Divider6-261.71.74.416±0.720SMA-Female
TPD-18G26-16K16-way Power Divider18-262.02.05.016±0.9202.92mm-Female
TPD-18G40-16K16-way Power Divider18-401.81.85.012±1.2202.92mm-Female


*插损值为超出理论分配损耗后的值

**工作温度：-40℃~+70℃


ModelA mm[inch]B mm[inch]C mm[inch]D mm[inch]
TPD-0.4G6-2S60[2.36]38[1.5]10.5[0.41]12.7[0.5]
TPD-0.4G6-2N60[2.36]60[2.36]19[0.75]25.4[1]
TPD-51-2S52[2.05]38[1.5]10.5[0.41]12.7[0.5]
TPD-51-2N51[2.01]50[1.97]20[0.79]28[1.1]
TPD-18-2S28[1.1]28[1.1]10[0.39]12.7[0.5]
TPD-21-2S154[6.06]24[0.94]10[0.39]12.7[0.5]
TPD-26-2S30[1.18]24[0.94]10[0.39]12.7[0.5]
TPD-24G40-2K34.3[1.35]25.4[1]10.16[0.4]12.7[0.5]
TPD-18G50-2K21.59[0.85]26.92[1.06]12.7[1]14.22[0.56]
ModelA mm[inch]B mm[inch]C mm[inch]D mm[inch]
TPD-0.4G6-4S102[4.02]69[2.72]10.5[0.41]13[0.51]
TPD-0.4G6-4N102[4.02]88.9[3.5]20[0.79]25.4[1]
TPD-51-4S84[3.31]68.5[2.7]10.5[0.41]12.7[0.5]
TPD-51-4N95.4[3.76]108[4.25]20[0.79]28[1.1]
TPD-18-4S37[1.46]54[2.13]10[0.39]12.7[0.5]
TPD-23-4S50[1.97]70[2.76]10[0.39]20[0.79]
TPD-26-4S25.4[1]50.8[2]12.7[0.5]12.7[0.5]
TPD-24G40-4K38.1[1.5]52.32[2.06]12.7[0.5]12.7[0.5]
TPD-18G50-4K38.1[1.5]52.32[2.06]12.7[0.5]12.7[0.5]
ModelA mm[inch]B mm[inch]C mm[inch]D mm[inch]
TPD-0.4G6-8S130.2[5.13]105.4[4.15]12[0.47]12.7[0.5]
TPD-0.4G6-8N87.2[3.43]201.7[7.94]20[0.79]25.4[1]
TPD-51-8S86[3.39]112[4.41]10.5[0.41]12.7[0.5]
TPD-51-8N87.2[3.43]201.7[7.94]20[0.79]25.4[1]
TPD-18-8S63[2.48]108[4.25]10[0.39]13[0.51]
TPD-21-8S160[6.3]172[6.77]10[0.39]20.15[0.79]
TPD-23-8S67[2.64]149[5.87]10[0.39]19[0.75]
TPD-26-8S49[1.93]104[4.09]12.7[0.5]13[0.51]
TPD-24G40-8K49[1.93]104[4.09]12.7[0.5]13[0.51]
TPD-18G50-8K40[1.57]104[4.09]10[0.39]13[0.51]
ModelA mm[inch]B mm[inch]C mm[inch]D mm[inch]
TPD-0.4G6-16S110[4.33]210.2[8.28]10.5[0.41]12.7[0.5]
TPD-0.4G6-16N117.9[4.64]405[15.94]20[0.79]25.4[1]
TPD-51-16S86.2[3.39]210.2[8.28]10.5[0.41]12.7[0.5]
TPD-18-16S92[3.62]210[8.27]12.7[0.5]12.7[0.5]
TPD-23-16S126.49[4.98]203[7.99]12.7[0.5]12.7[0.5]
TPD-6G26-16S44.5[1.75]210[8.27]12.7[0.5]

13.1[0.51

TPD-18G26-16K93.98[3.7]203[7.99]10.16[0.4]12.7[0.5]
TPD-18G40-16K45[1.77]208[8.19]10[0.39]13[0.51]
