Programmable Attenuator 0.1-40GHz

Home > Products > RF Components > Programmable Attenuator

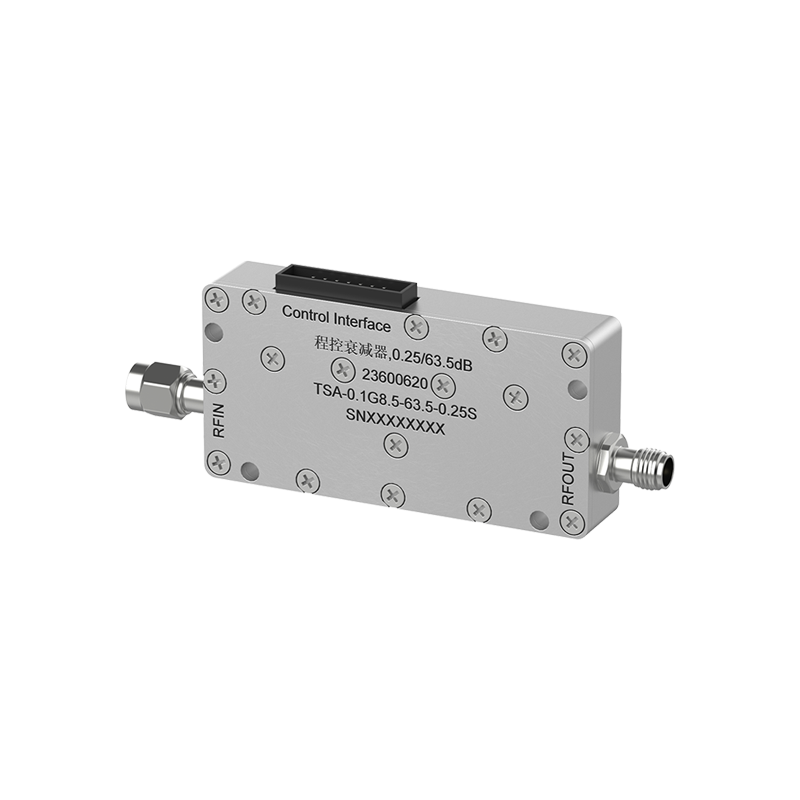

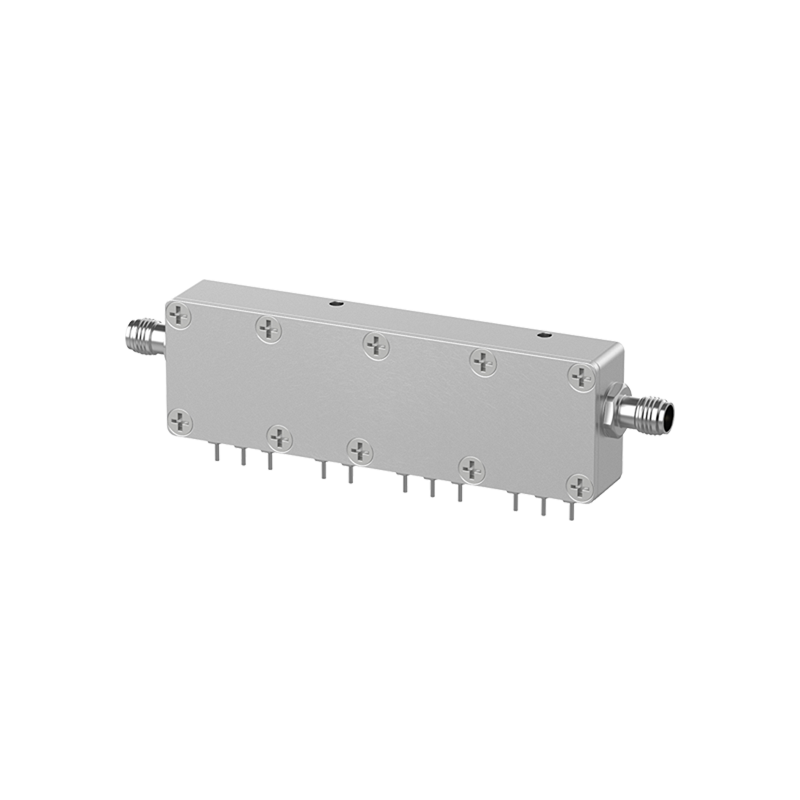

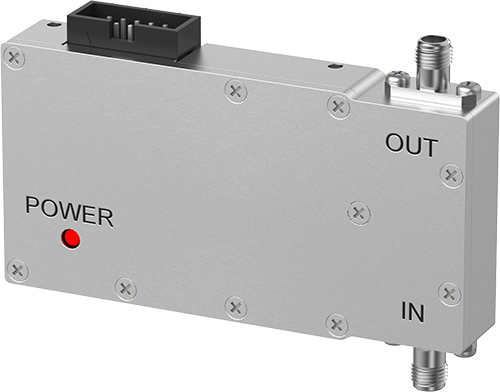

Programmable Attenuator

Views：2837+ Collection：1752+

▷ Multi-level digital attenuation with 0.25 / 0.5 / 1 dB steps
▷ 0.1–40 GHz, attenuation range up to 120+ dB
▷ High attenuation accuracy, low VSWR & low insertion loss
▷ Widely used in UE, cellular & sat-com testing
▷ SMA / N / 2.92mm connector options

Specification

TSA-0.1G6-93.75-0.25S

TSA-0.1G8-62.5-0.25S

TSA-0.1G30-63-0.5K1

TSA-0.1G8.5-95-0.5S

TSA8-0.1G8.5-95-0.25S

TSA-0.5G8-120-0.5S

TSA-51-93-1S

TSA-51-124.75-0.25S

TSA-51-124.5-0.5S

TSA-6G40-62-1K

TSA-18G30-62-0.5K

TSA-24G30-30-0.5K

TSA-24G30-63-0.5K

Quantity

Payment method

预付100%

Add to inquiry sheet Inquiry immediately

Related recommendation

Standard Product List

Model	Freq. Range (GHz)	Att. Range (dB)	Att. step (dB)	VSWR	IL (dB)	Connector
TSA-0.1G6-93.75-0.25S	0.1~6	0~93.75	0.25	1.8	8	SMA-F
TSA-0.1G8-62.5-0.25S	0.1~8	0~62.5	0.25	1.8	10	SMA-F
TSA-0.1G30-63-0.5K1	0.1~30	0~63	0.5	1.8	9.5	2.92mm-F
TSA-0.1G8.5-95-0.5S	0.1~8.5	0~95	0.5	1.8	8	SMA-F
TSA8-0.1G8.5-95-0.25S	0.1~8.5	0~95	0.25	1.8	8	SMA-F
TSA-0.5G8-120-0.5S	0.5~8	0~120	0.5	1.9	10	SMA-F
TSA-51-93-1S	0.7~6	0~93	1	1.8	8	SMA-F
TSA-51-124.75-0.25S	0.7~6	0~124.75	0.25	2	12.5	SMA-F
TSA-51-124.5-0.5S	0.7~6	0~124.5	0.5	2	11	SMA-F
TSA-6G40-62-1K	6~40	0~62	1	1.6	15	2.92mm-F
TSA-18G30-62-0.5K	18~30	0~62	0.5	2.5	15	2.92mm-F
TSA-24G30-30-0.5K	24~30	0~30	0.5	2.5	8	2.92mm-F
TSA-24G30-63-0.5K	24~30	0~63	0.5	2.2	9.5	2.92mm-F
