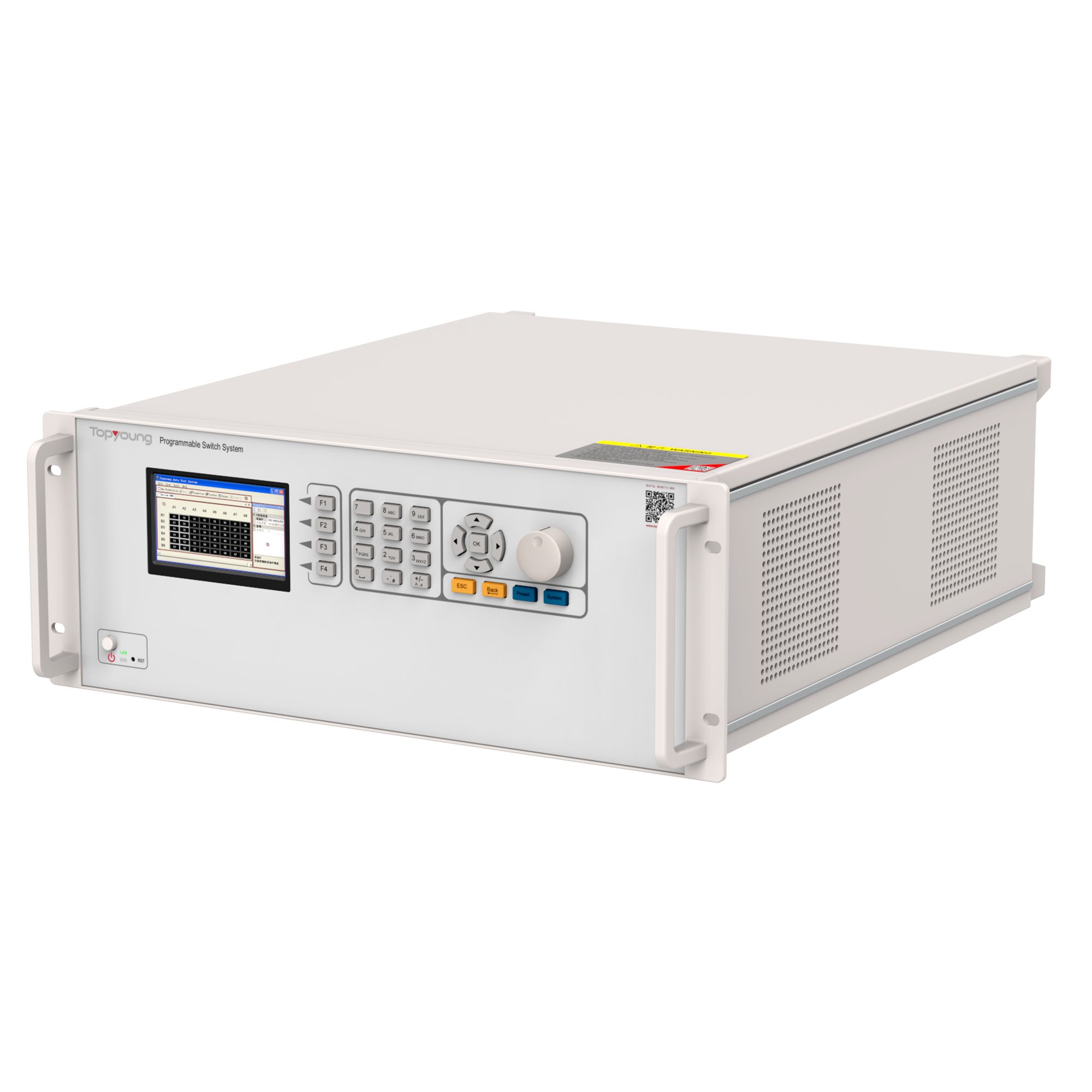

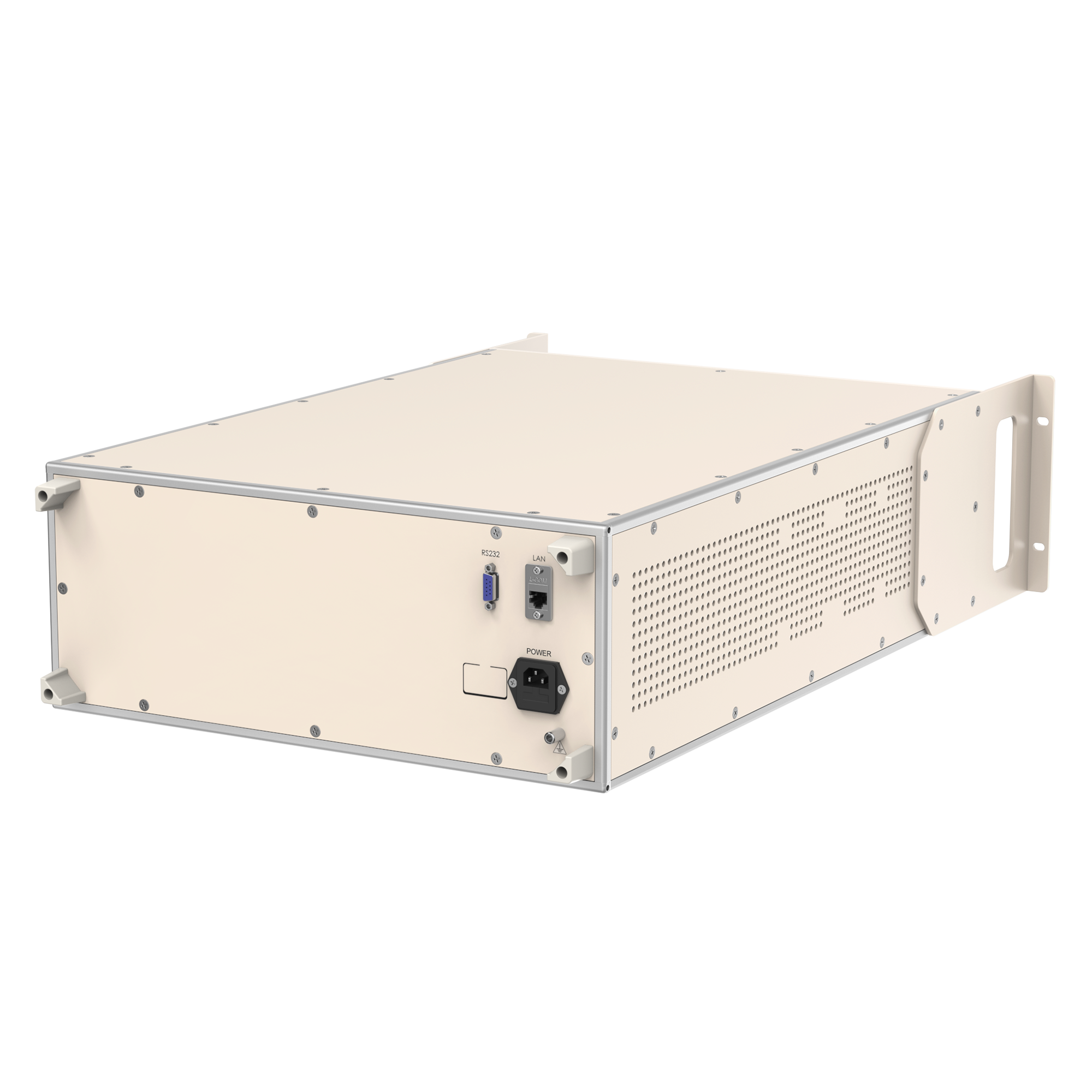

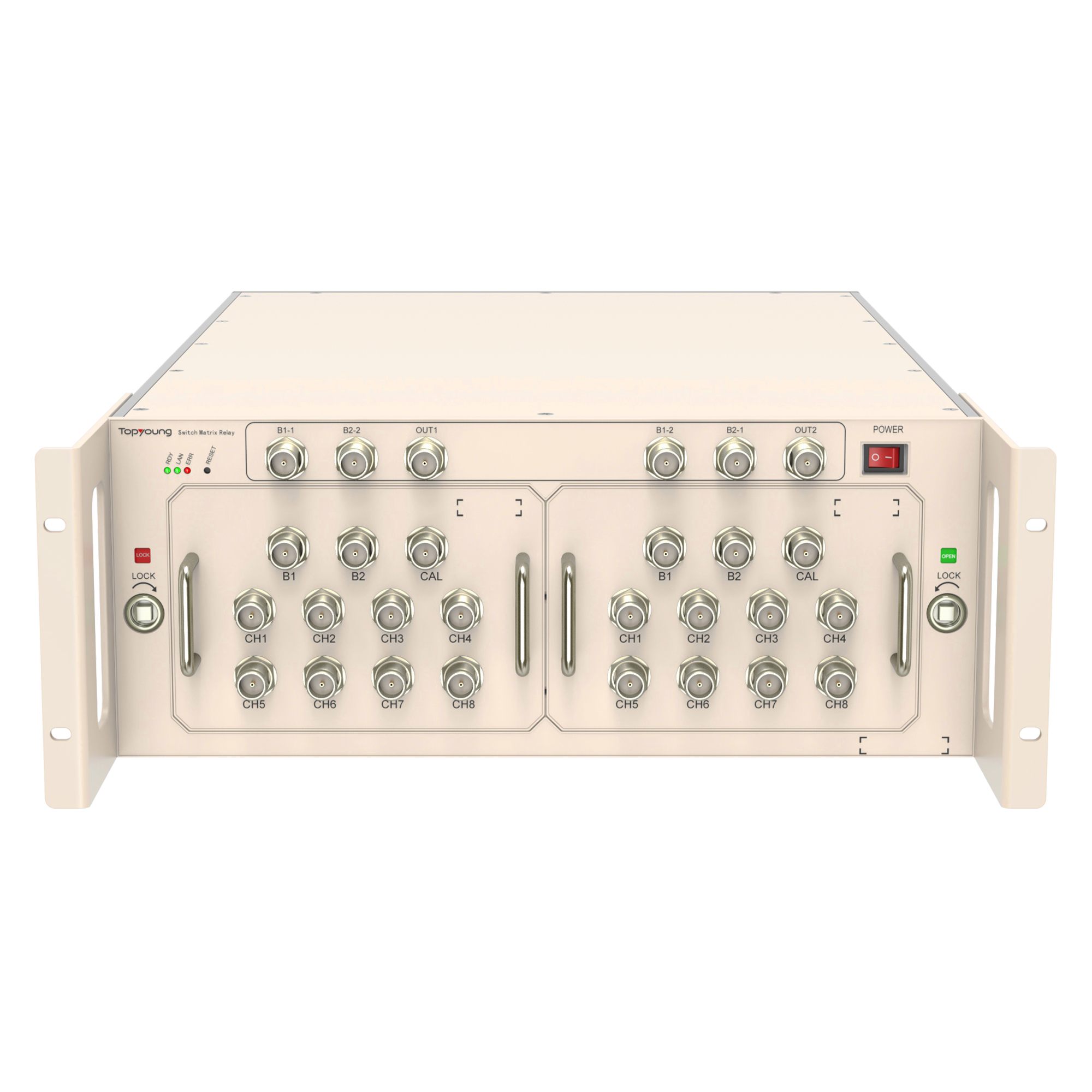

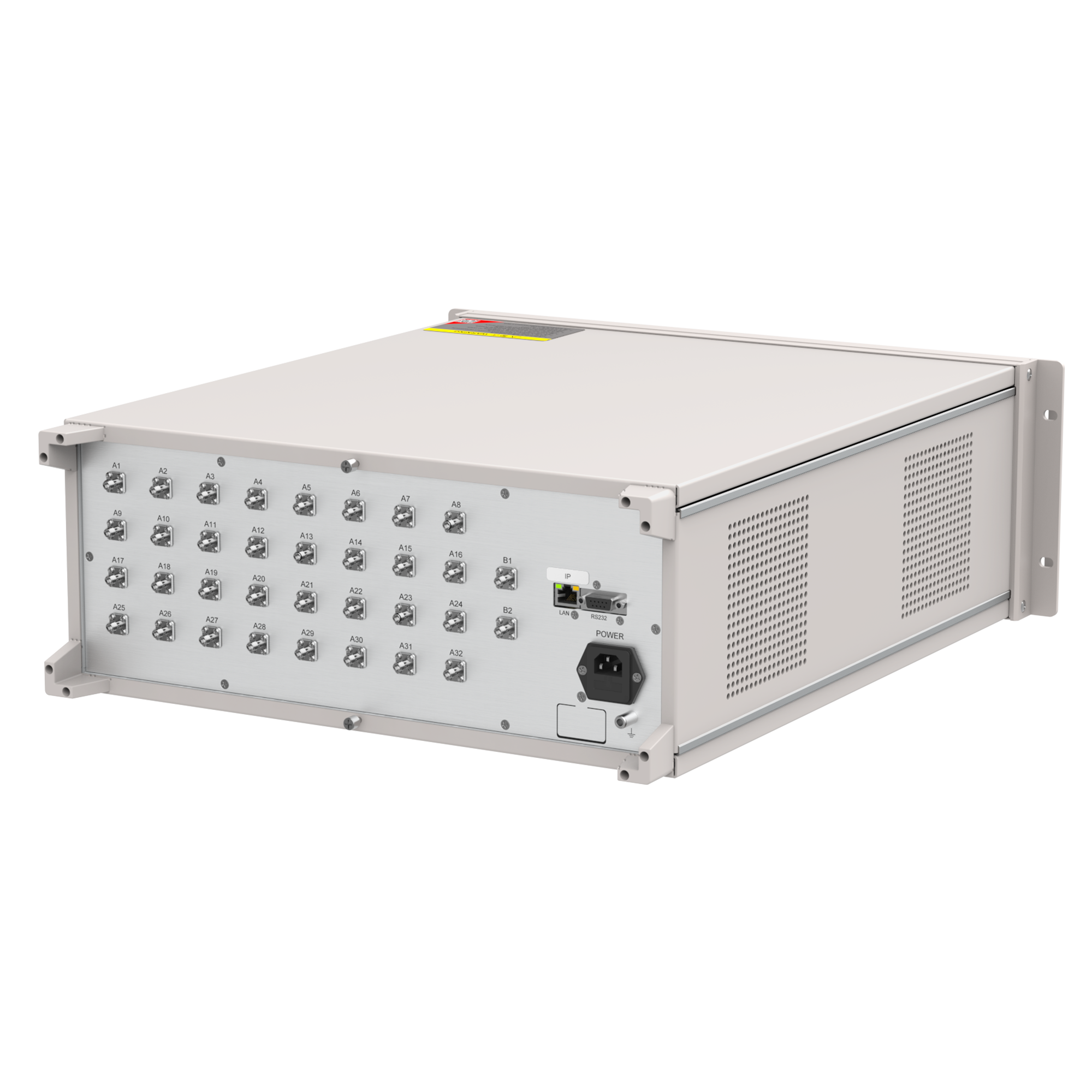

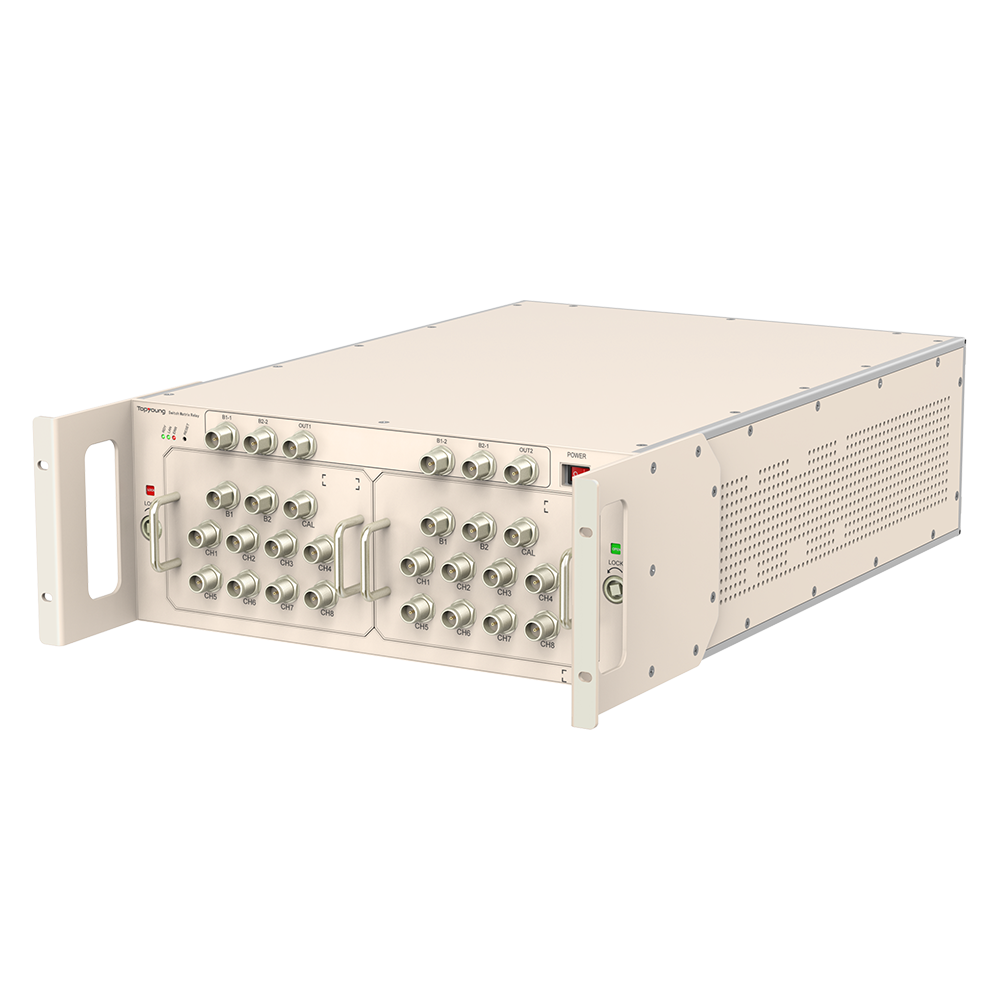

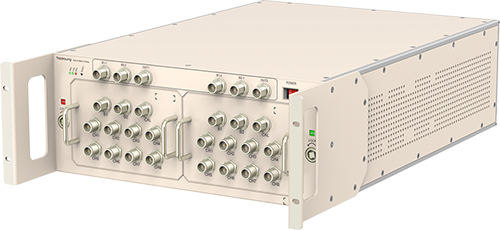

Switch Matrix,Relay

Views:2182+ Collection:3+

* Relay switch: high frequency, low loss and high bearing power
* Solid-state switch: low cost, long service life and fast switching

Download the technical specifications of product series

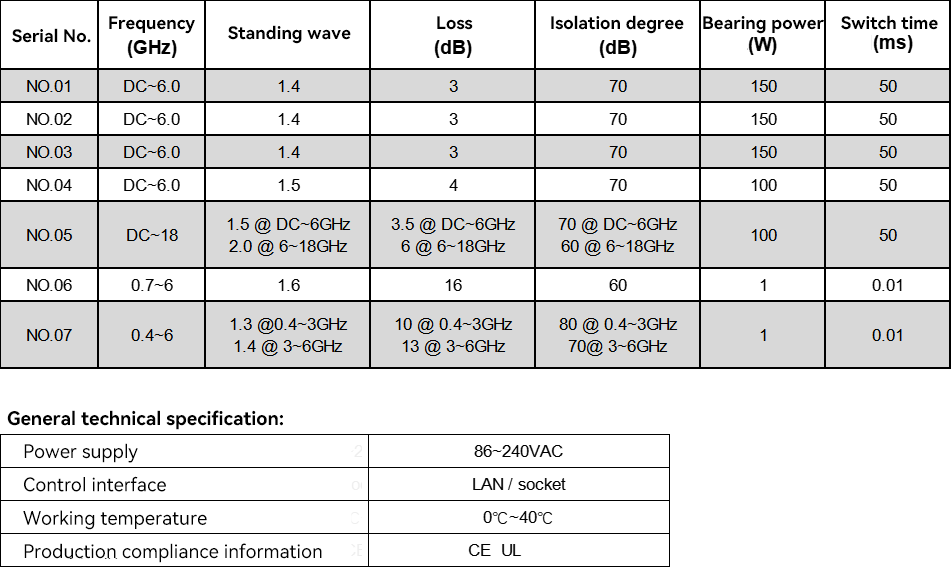

Specification
  • TSS16T1-
  • TSS32T1-
  • TSS64T1-
  • TSS16B8-
  • TSS18B2-
  • TSS16T1-
  • TSS32T1-
  • TSS64T1-
  • TSS16B8-
  • TSS8B8-4
Quantity
Payment method
100% payment in advance

Related recommendation

ModelDescription

A ports

Qty.

B ports

Qty.

Min. Freq.

(GHz)

Max. Freq.

(GHz)

IL

(dB)

PowerSwitch Type
TSS18B2-6B1-70N-ESProgrammable Switch System,18x2182DC65100WBlocking
TSS64B8-6B1-70S-ESProgrammable Switch System,64x8648DC63.5100WBlocking
TSS16T1-8.5B1-70S-DESProgrammable Switch System,16in 1out161DC8.53100WBlocking
TSS32T1-8.5B1-70S-DESProgrammable Switch System,32in 1out321DC8.53100WBlocking
TSS64T1-8.5B1-70S-DESProgrammable Switch System,64in 1out641DC8.53100WBlocking
TSS16T1-18B1-60S-DESProgrammable Switch System,16in 1out161DC18550WBlocking
TSS32T1-18B1-60S-DESProgrammable Switch System,32in 1out321DC18550WBlocking
TSS64T1-18B1-60S-DESProgrammable Switch System,64in 1out641DC18550WBlocking
TSS24T4-26.5-50S-ESProgrammable Switch System,24in 4out244DC26.5120WBlocking
TSS6B2-40B1-50K-ESProgrammable Switch System,6x262DC4065WBlocking


电气性能
电源/功耗100-240V~/ 50W
控制接口LAN / socket
工作温度0℃~40℃
安规

European Union

EMC 2014/30/EU, EN 61326-1:2013

Low Voltage Directive 2014/35/EU

Safety EN 61010-1:2010, AMD1:2016

RoHS Directive 2015/863/EU

USA


FCC CFR 47 PART 18:2021 FCC MP-5:1986
