Solid-state Switch

Views：2942+

Collection：572+

▷ SPDT–SP16T solid-state switching in one serialized family
▷ Three band series: 0.2–8.5 GHz, 2–18 GHz & 0.5–40 GHz
▷ TTL / USB / LAN control options
▷ Fast switching: <20 μs (TTL series) & <100 ns (2–18 / 40 GHz series)
▷ 50–60 dB isolation with unlimited switching life

Specification

TPS2X-0.4G8.5-60S-P

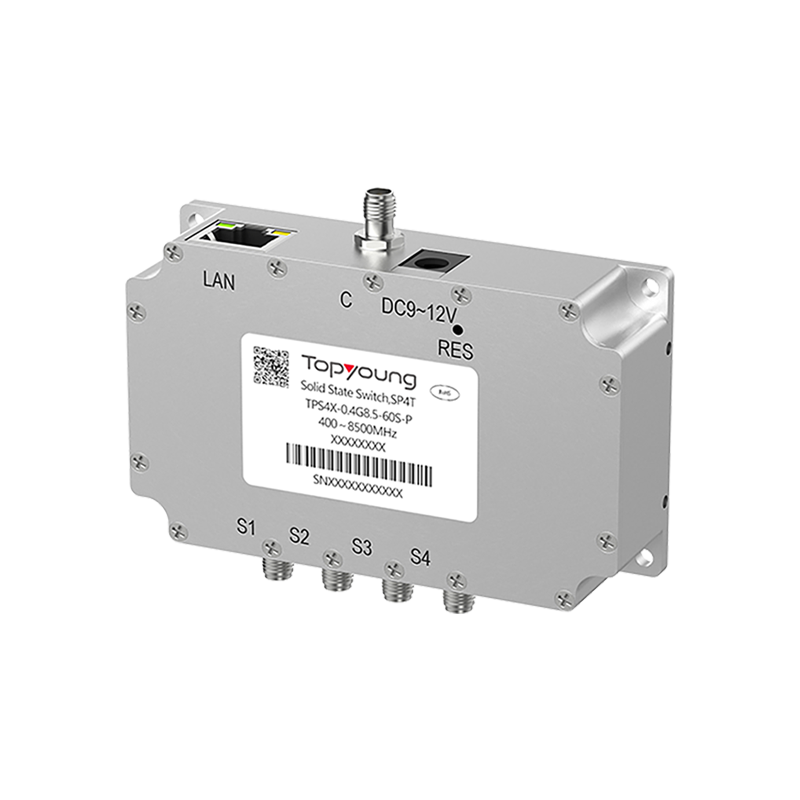

TPS4X-0.4G8.5-60S-P

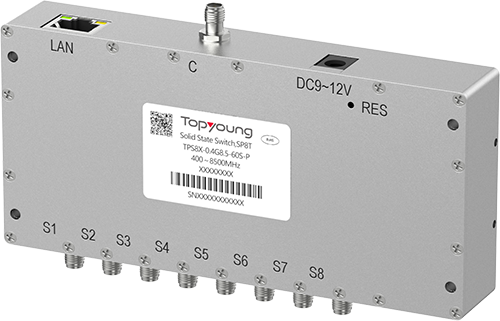

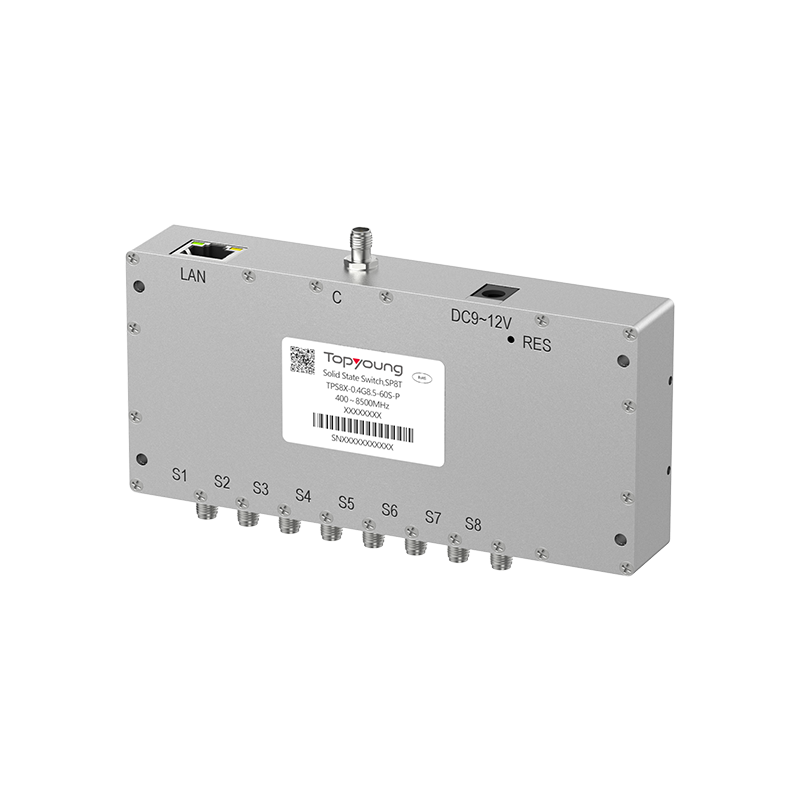

TPS8X-0.4G8.5-60S-P

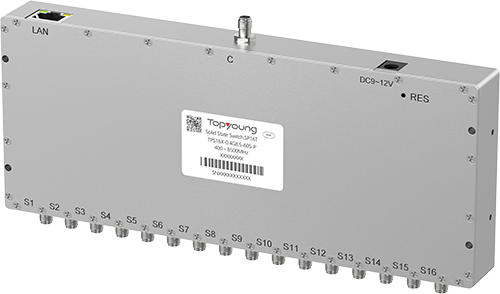

TPS16X-0.4G8.5-60S-P

Quantity

Payment method

预付100%

Related recommendation

Standard Product List

Model	Description	Freq. Range (GHz)	VSWR	IL (dB)	ISO (dB)	P0.1dB (dBm)	Switching time	Connector
TPS2X-0.4G8.5-60S-P	SPDT	0.4~8.5	1.4	4	60	33	<20μs	SMA-F
TPS4X-0.4G8.5-60S-P	SP4T	0.4~8.5	1.4	5	60	33	<20μs	SMA-F
TPS8X-0.4G8.5-60S-P	SP8T	0.4~8.5	1.45	6	60	33	<20μs	SMA-F
TPS16X-0.4G8.5-60S-P	SP16T	0.4~8.5	1.45	7	60	33	<20μs	SMA-F

Standard Product List

Model	Description	Freq. Range (GHz)	VSWR	IL (dB)	ISO (dB)	P0.1dB (dBm)	Switching time	Connector
TPS2X-0.2G8.5-60S-A	SPDT	0.2~8.5	1.4	3.5	60	33	<20μs	SMA-F
TPS4X-0.2G8.5-60S-A	SP4T	0.2~8.5	1.4	5	60	33	<20μs	SMA-F
TPS8X-0.2G8.5-60S-A	SP8T	0.2~8.5	1.45	6	60	33	<20μs	SMA-F
TPS16X-0.2G8.5-60S-A	SP16T	0.2~8.5	1.45	7	60	33	<20μs	SMA-F
TPS1X-2G18-60S-A	SPST	2~18	2	3	60	30	<100 ns	SMA-F
TPS2X-2G18-60S-A	SPDT	2~18	2	3	60	30	<100 ns	SMA-F
TPS3X-2G18-60S-A	SP3T	2~18	2	3	60	30	<100 ns	SMA-F
TPS4X-2G18-60S-A	SP4T	2~18	2	3	60	30	<100 ns	SMA-F
TPS6X-2G18-60S-A	SP6T	2~18	2	3.5	60	30	<100 ns	SMA-F
TPS8X-2G18-60S-A	SP8T	2~18	2	4	80	30	<100 ns	SMA-F
TPS1X-0.5G40-50K-A	SPST	0.5~40	2.5	5.5	50	23	<100 ns	2.92mm
TPS2X-0.5G40-50K-A	SPDT	0.5~40	2.5	5.5	50	23	<100 ns	2.92mm
TPS3X-0.5G40-50K-A	SP3T	0.5~40	2.5	6	50	23	<100 ns	2.92mm
TPS4X-0.5G40-50K-A	SP4T	0.5~40	2.5	6.5	50	23	<100 ns	2.92mm
TPS8X-0.5G40-50K-A	SP8T	0.5~40	2.5	8.5	50	23	<100 ns	2.92mm

Standard Product List

Model	Description	Freq. Range (GHz)	VSWR	IL (dB)	ISO (dB)	P0.1dB (dBm)	Switching time	Connector
TPS2X-1M8500-60S-U	SPDT	0.001~8.5	1.4	3.5	60	33	<20μs	SMA-F
TPS4X-1M8500-60S-U	SP4T	0.001~8.5	1.4	5	60	33	<20μs	SMA-F
TPS8X-1M8500-60S-U	SP8T	0.001~8.5	1.45	6	60	33	<20μs	SMA-F
TPS16X-1M8500-60S-U	SP16T	0.001~8.5	1.45	7	60	33	<20μs	SMA-F
