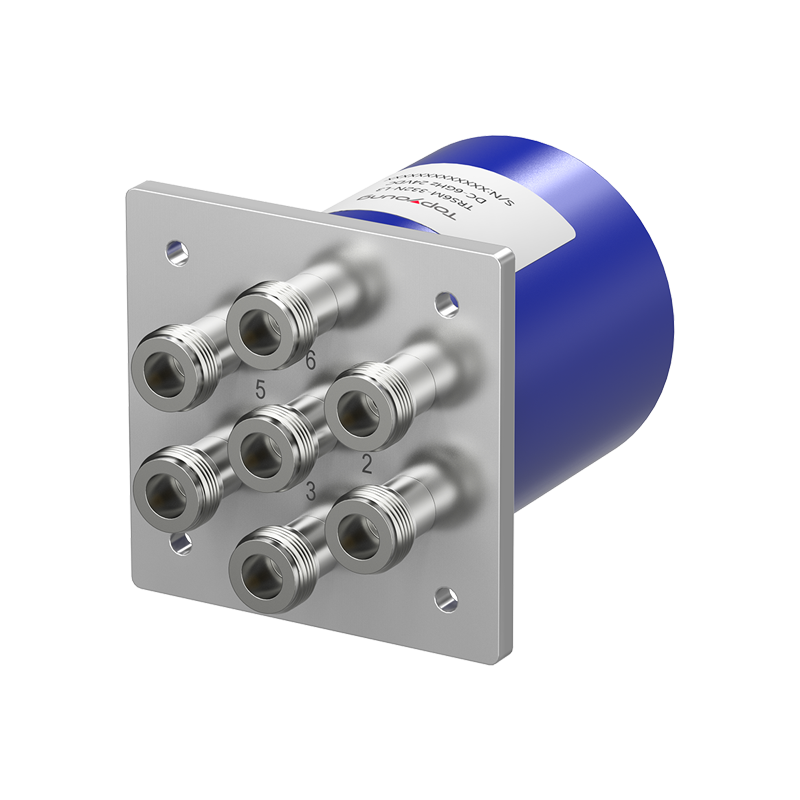

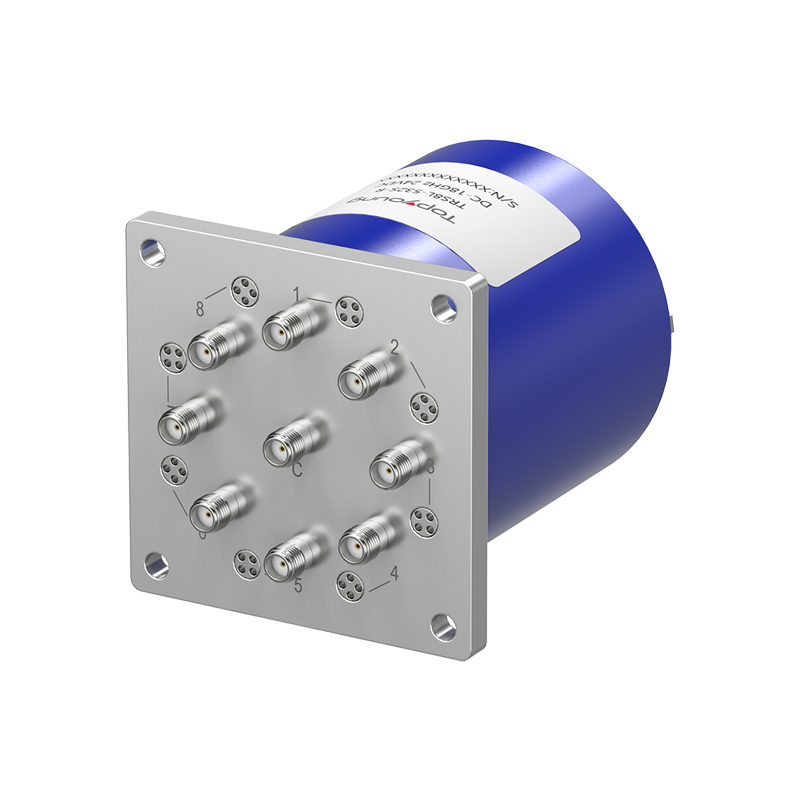

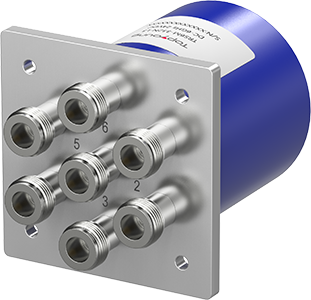

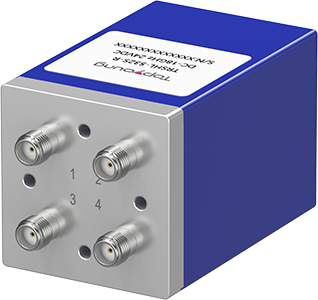

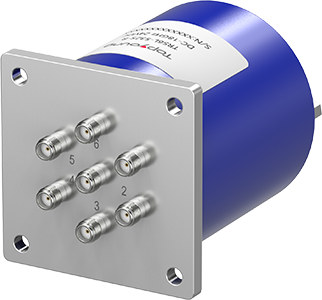

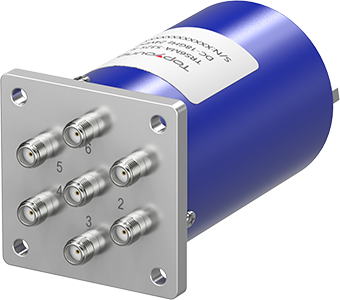

RF Relay Switches

RF Relay Switches

Favorite

Share

RF Relay Switches

Views：132+ Collection：0+

Specification

Quantity

Payment method

预付100%

Add to inquiry sheet Inquiry immediately

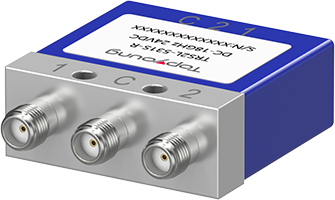

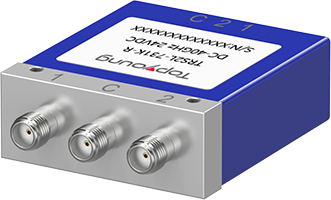

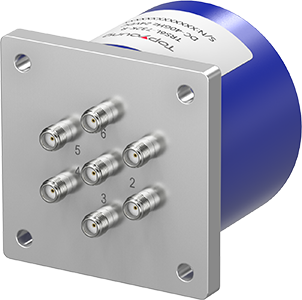

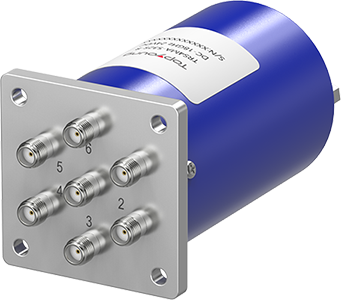

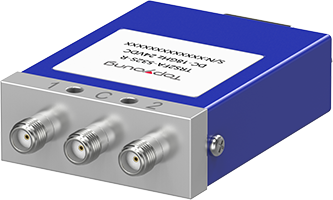

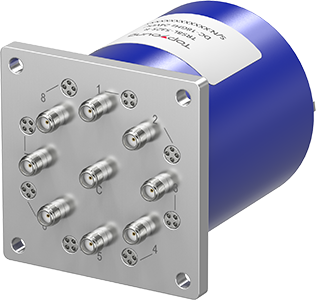

Related recommendation

Model	Frequency (GHz)	VSWR	Insertion Loss (dB)	Isolation (dB)	Power (dBm)	Switching time* (µs)	Operating Temperature (℃)	Connector Type
TPS2X-0.4G8.5-60S-E	0.4-8.5	1.35	3.5	60	33	< 20	-40~+70	SMA-Female
TPS4X-0.4G8.5-60S-E	0.4-8.5	1.35	4.5	60	33	< 20	-40~+70	SMA-Female
TPS6X-0.4G8.5-60S-E	0.4-8.5	1.35	4.5	60	33	< 20	-40~+70	SMA-Female
TPS8X-0.4G8.5-60S-E	0.4-8.5	1.35	4.5	60	33	< 20	-40~+70	SMA-Female

*:50% CTRL to final value

Switch	Control Interface
SPDT	DB9-M
SP4T	DB15-M
SP6T	DB15-M
SP8T	DB15-M

C to	PIN 1	PIN 2	PIN 7
1	1	0	0
2	0	1	0
RESET	0	0	1

C to	PIN 1	PIN 2	PIN 3	PIN 4	PIN 5	PIN 6	PIN 7	PIN 8	PIN 13
1	1	0	0	0	0	0	0	0	0
2	0	1	0	0	0	0	0	0	0
3	0	0	1	0	0	0	0	0	0
4	0	0	0	1	0	0	0	0	0
5	0	0	0	0	1	0	0	0	0
6	0	0	0	0	0	1	0	0	0
7	0	0	0	0	0	0	1	0	0
8	0	0	0	0	0	0	0	1	0
RESET	0	0	0	0	0	0	0	0	1

Parameter	Min	Typ.	Max.	Units
VCC Power Supply Voltage	11	12	13	V
VCC Power Supply Current	/	/	100	mA
V1(Pin 1～Pin 8)	11	12	13	V
V0(Pin 1～Pin 8)	-0.3	0	0.6	V
