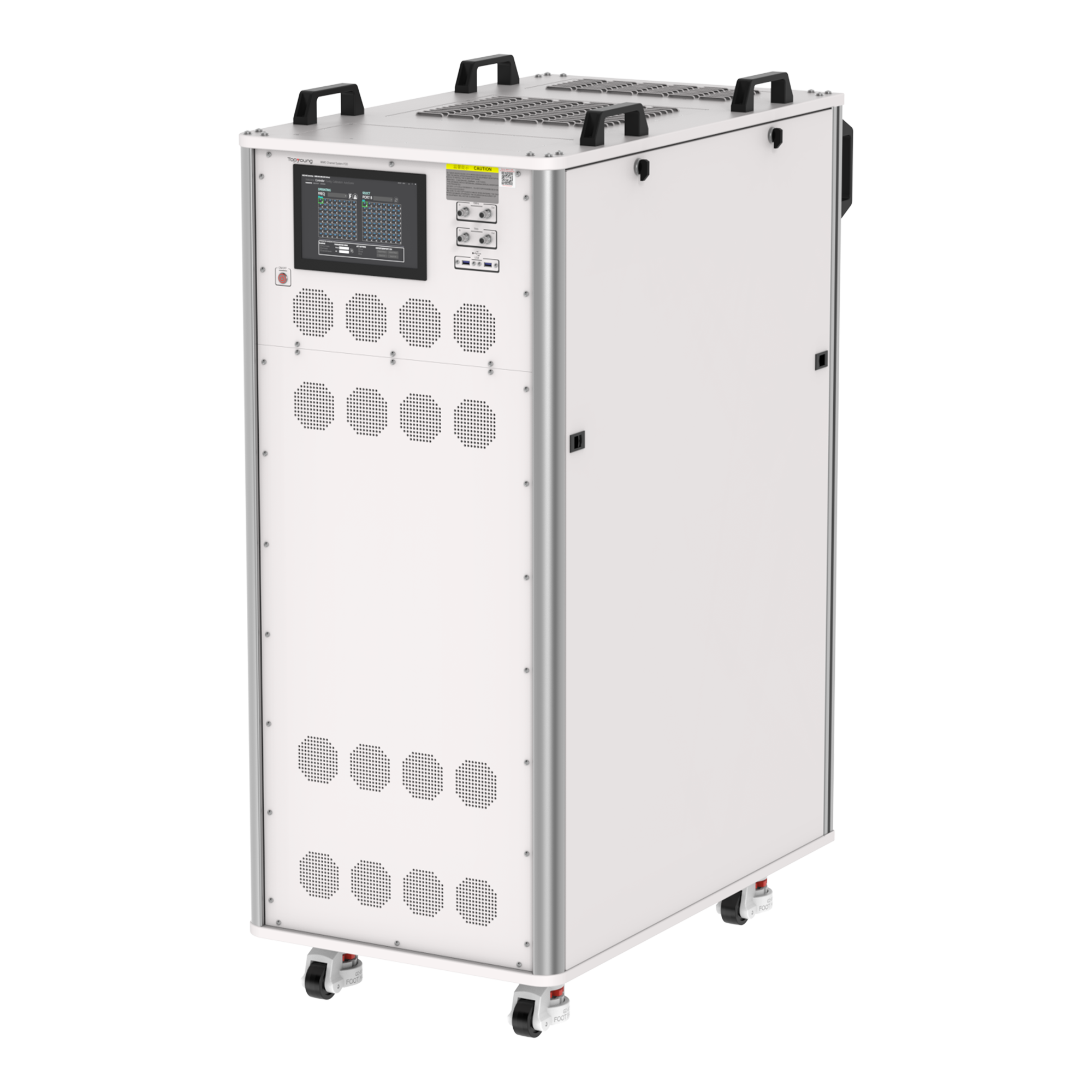

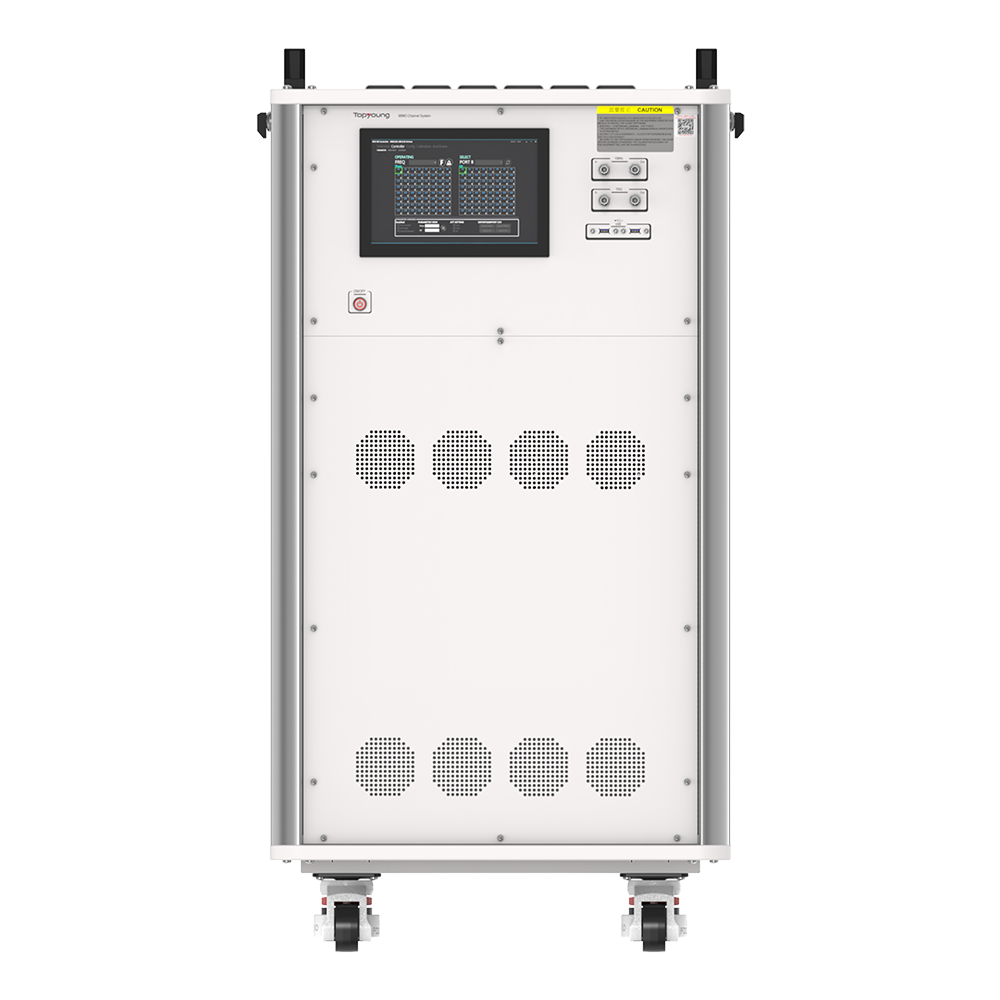

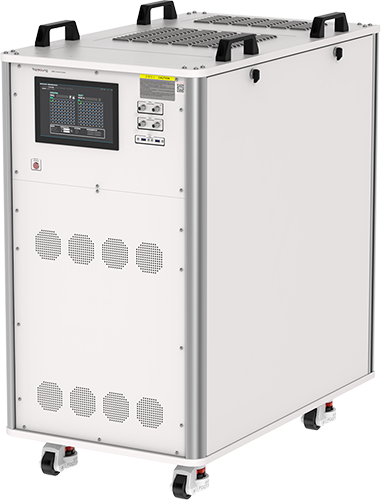

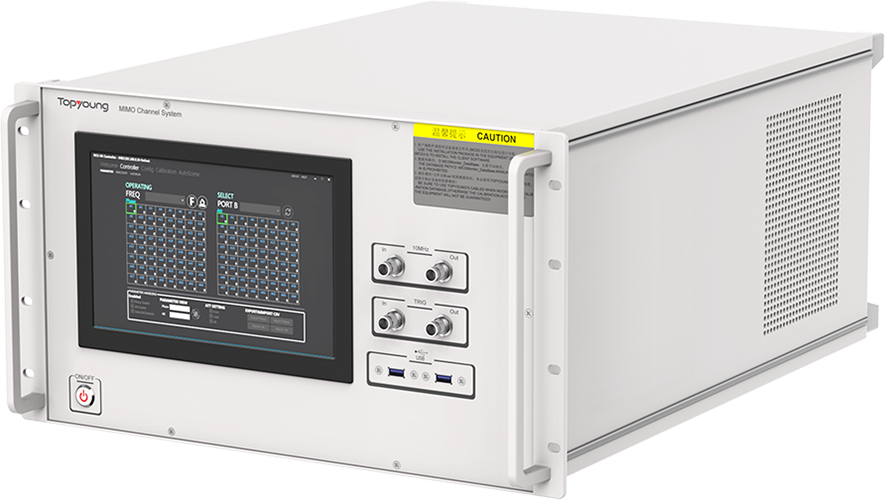

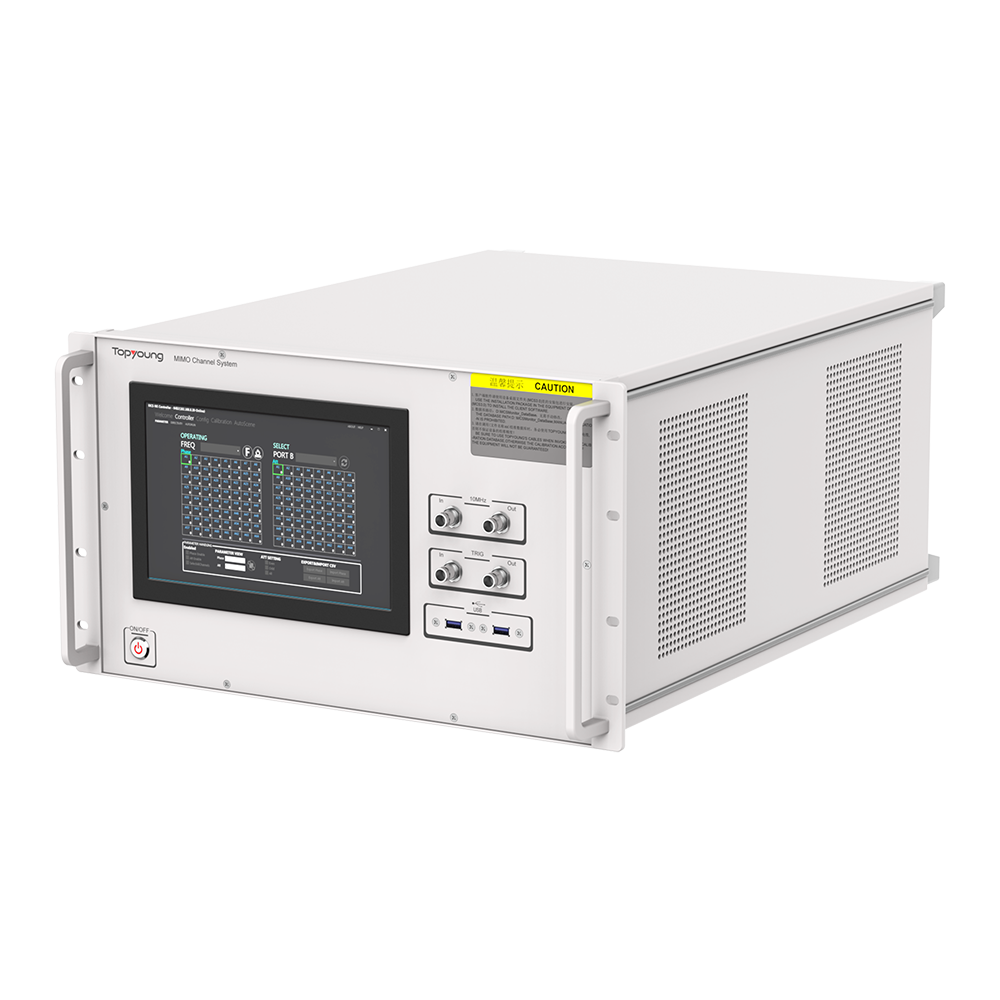

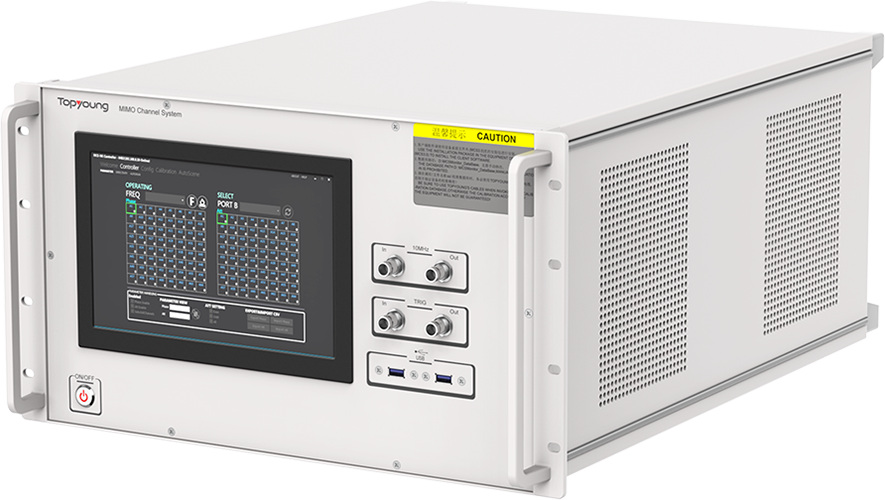

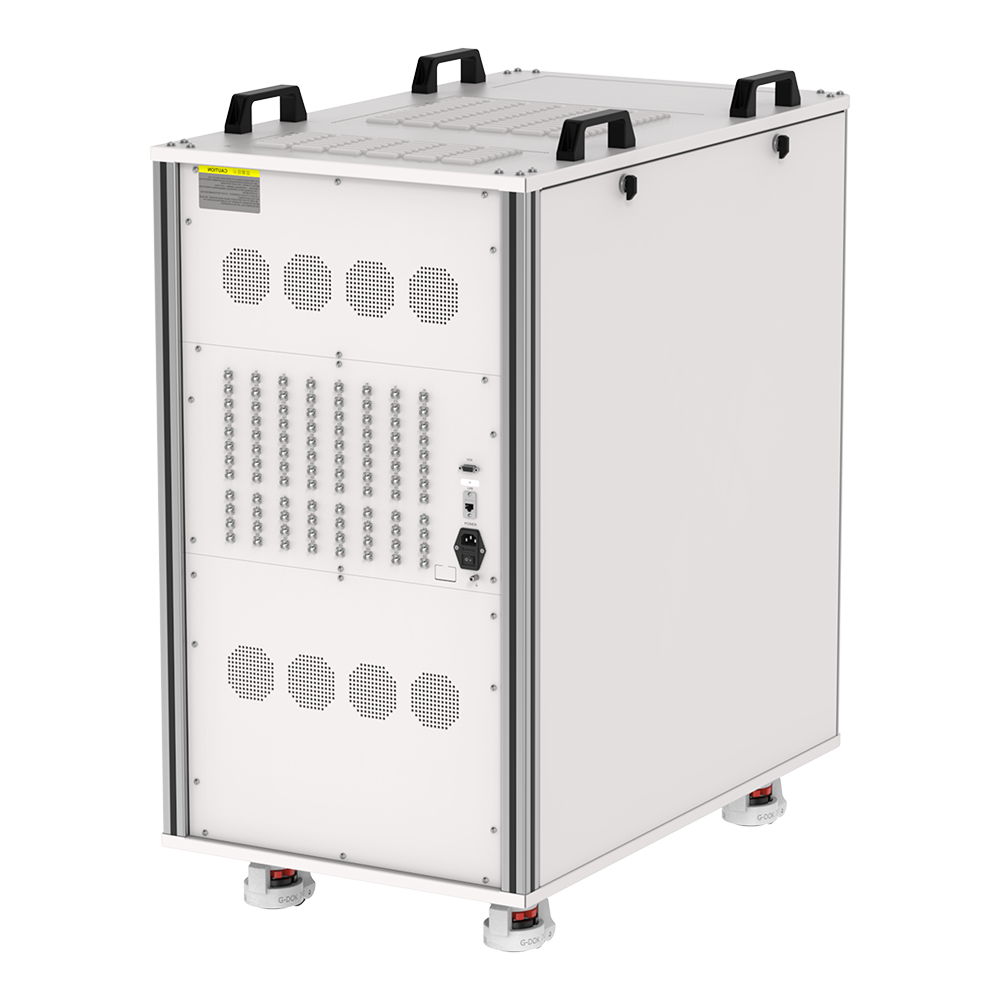

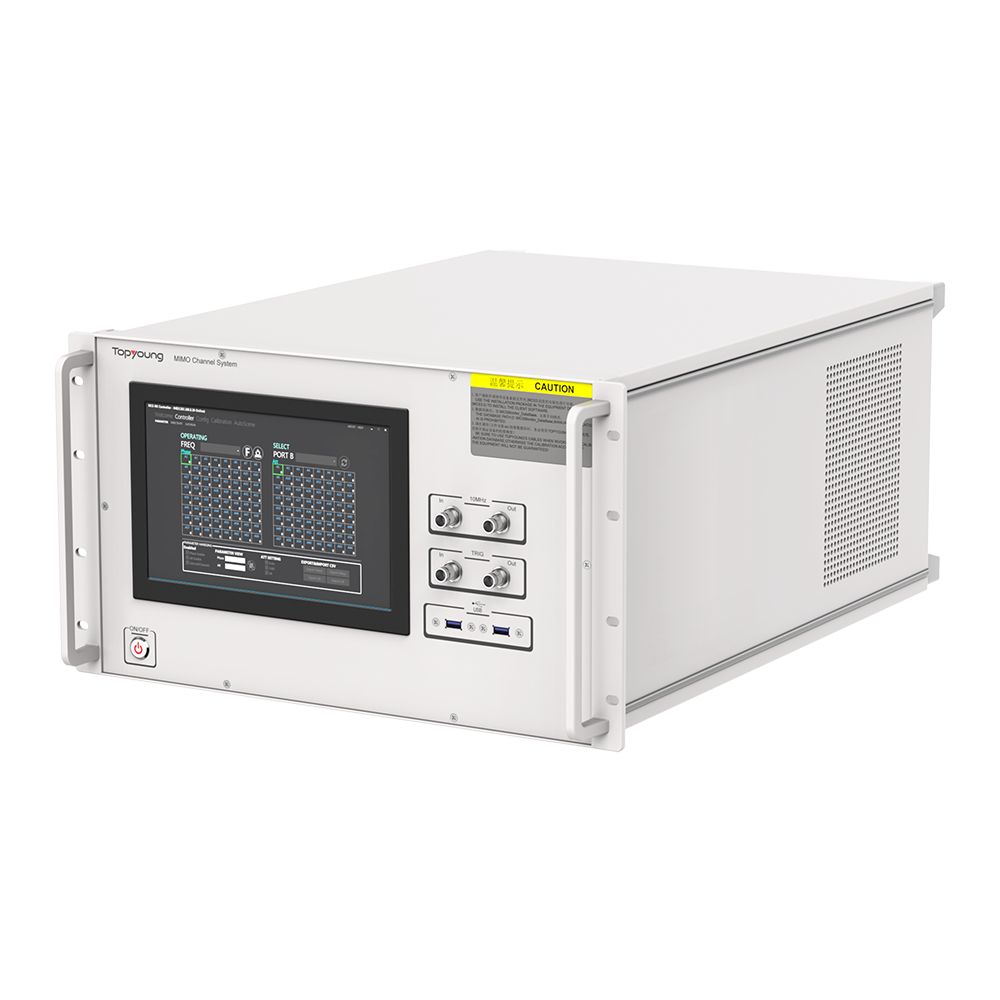

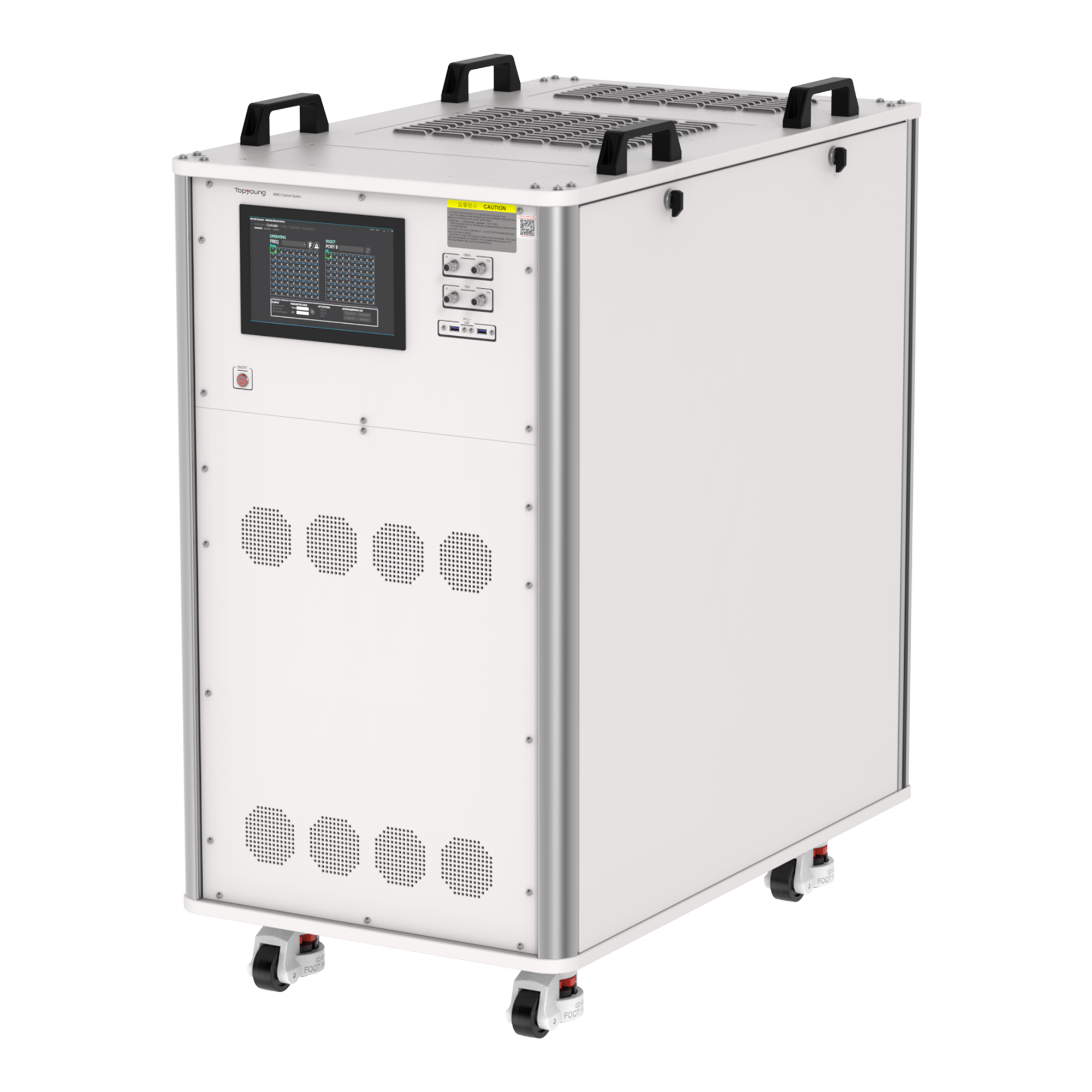

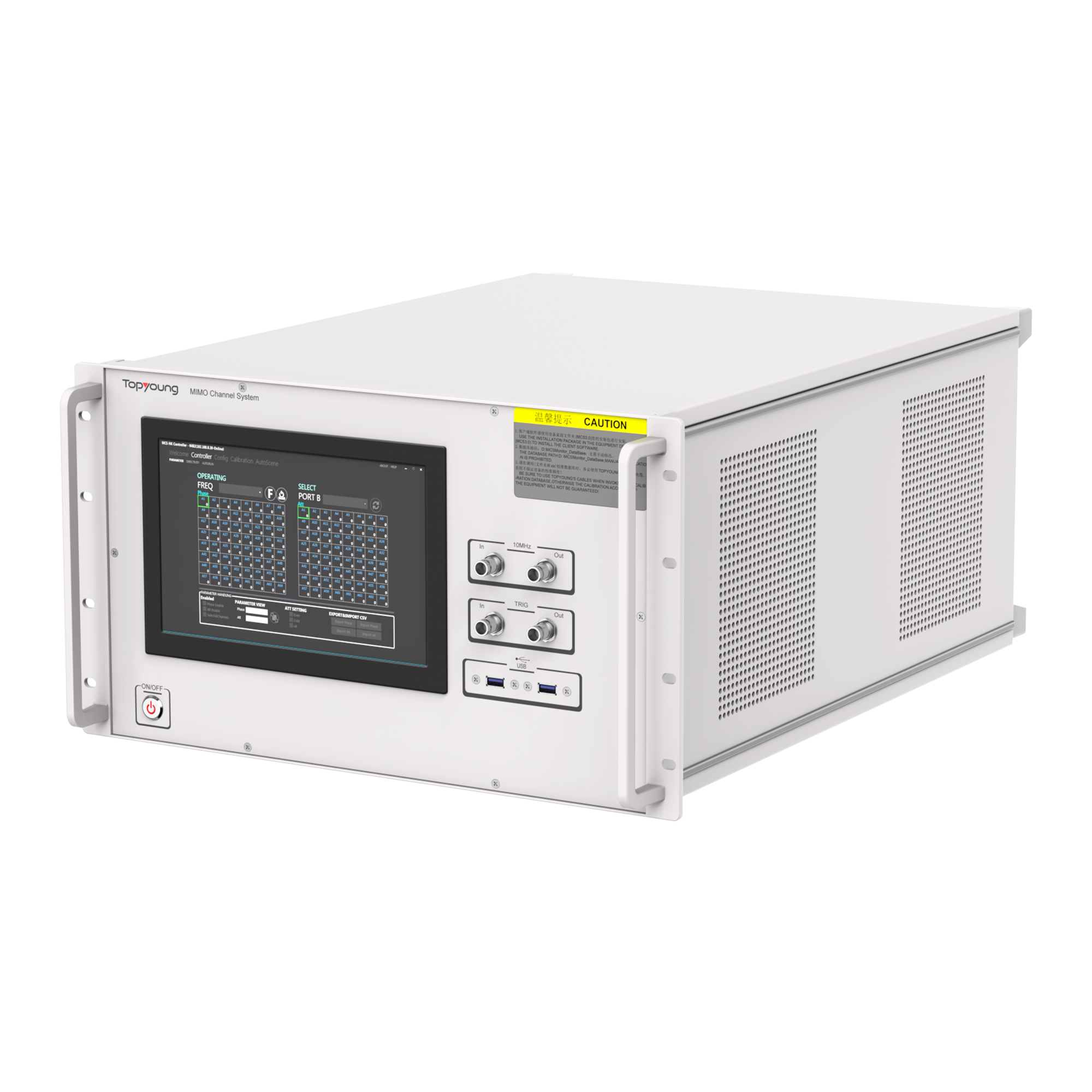

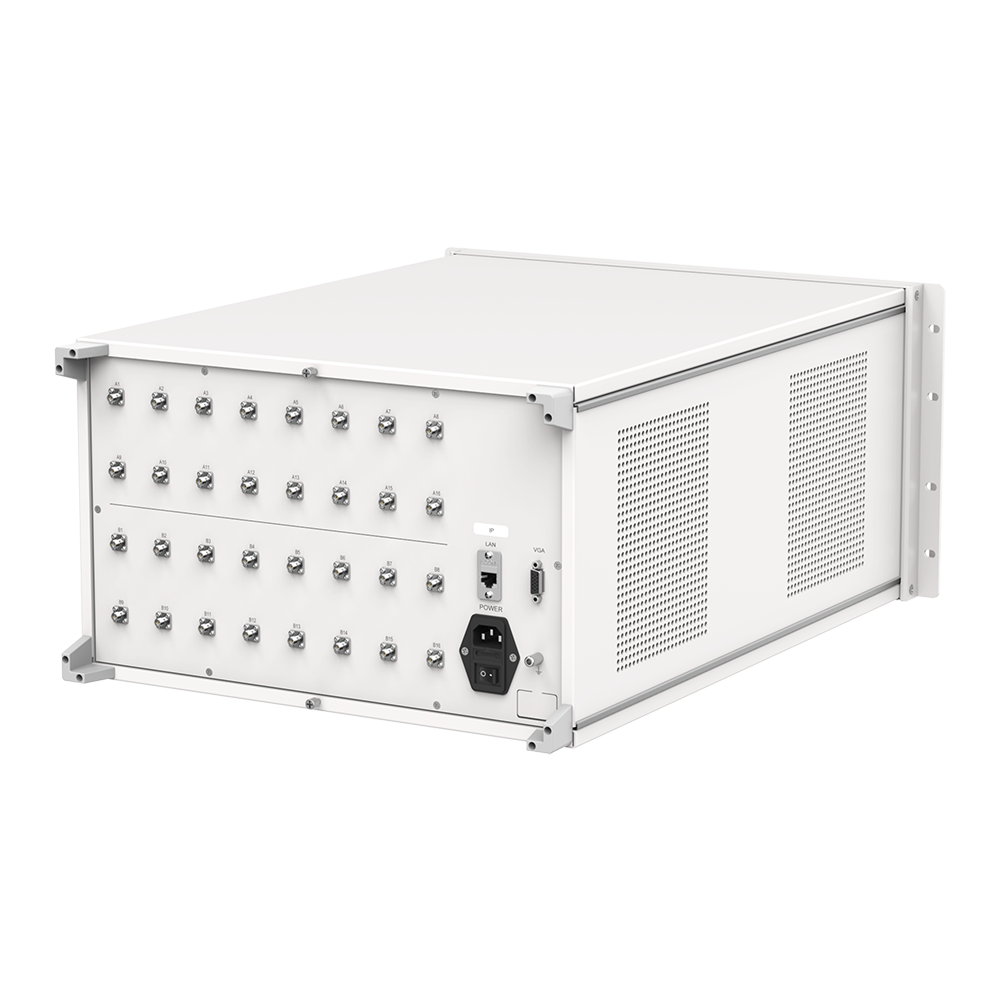

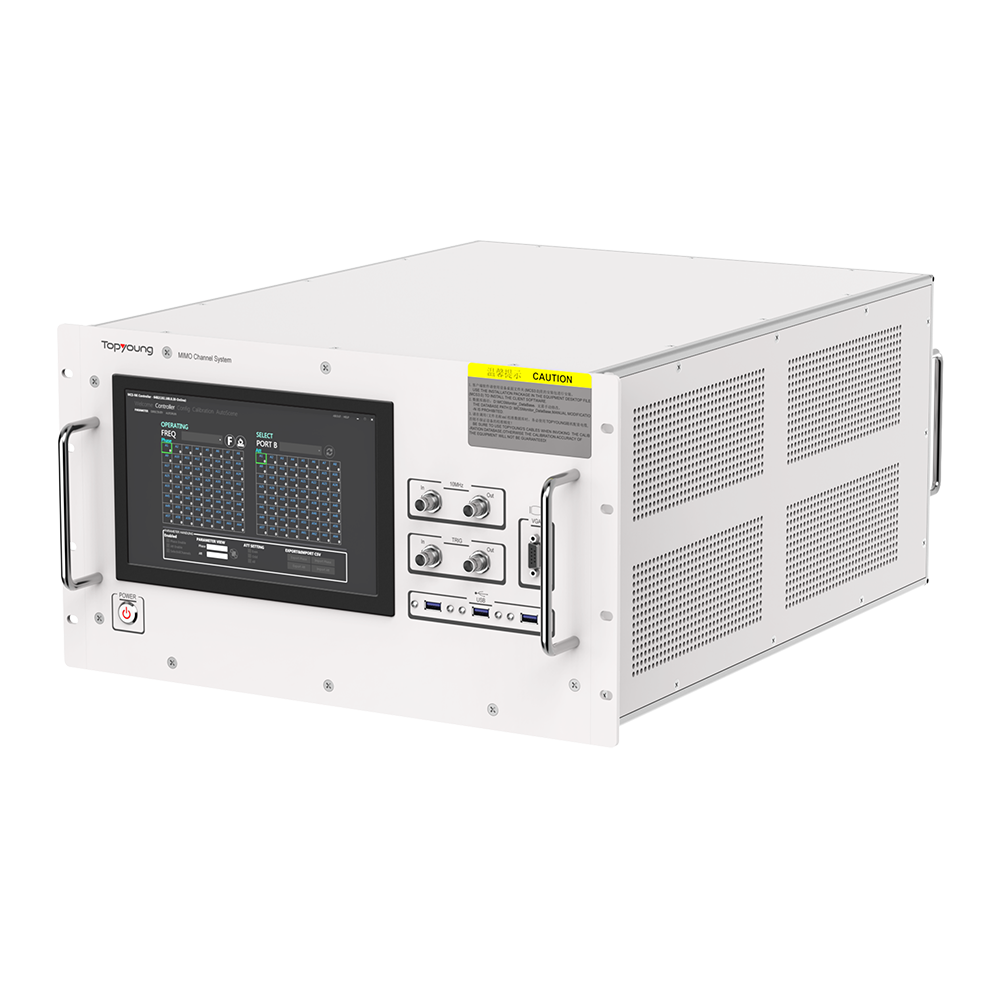

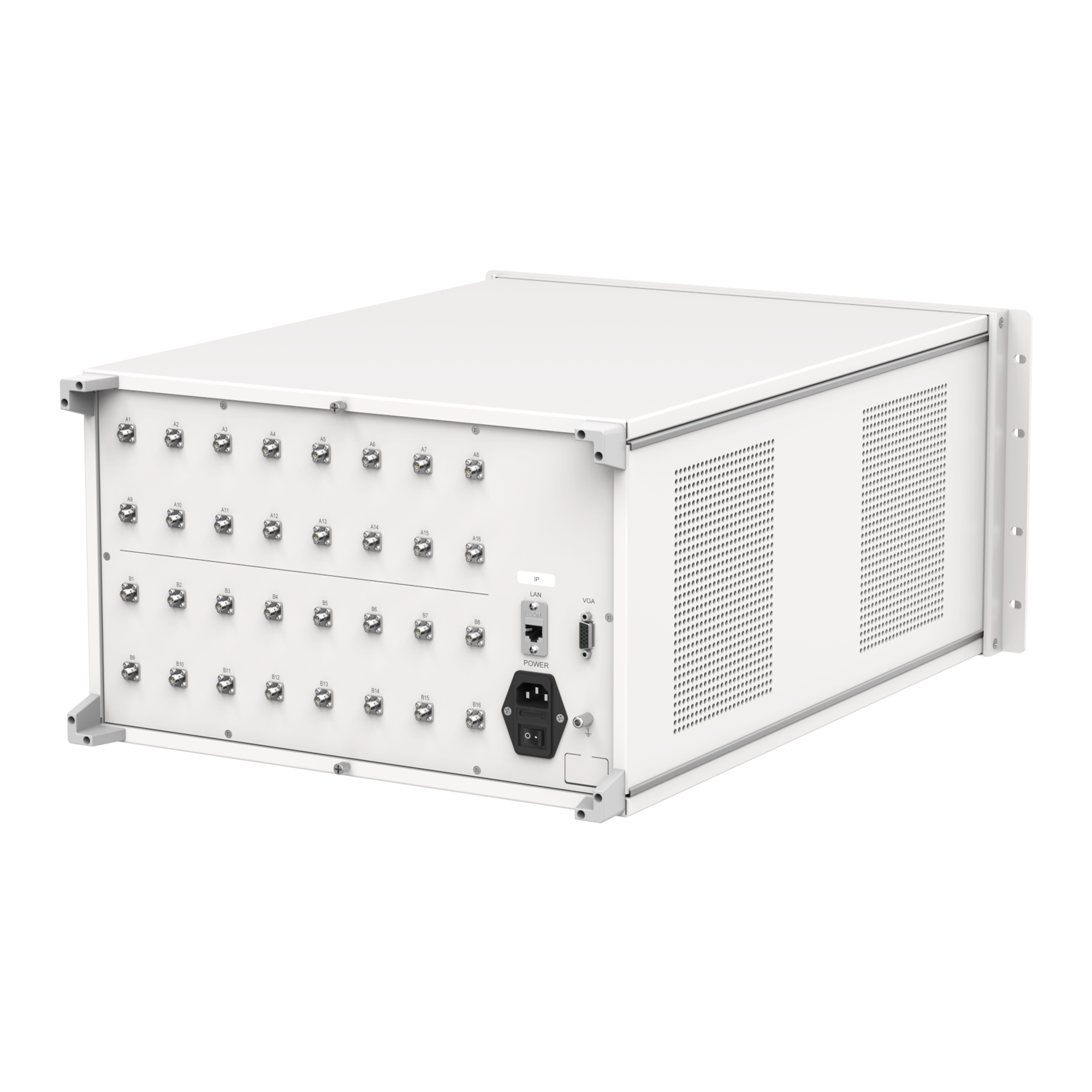

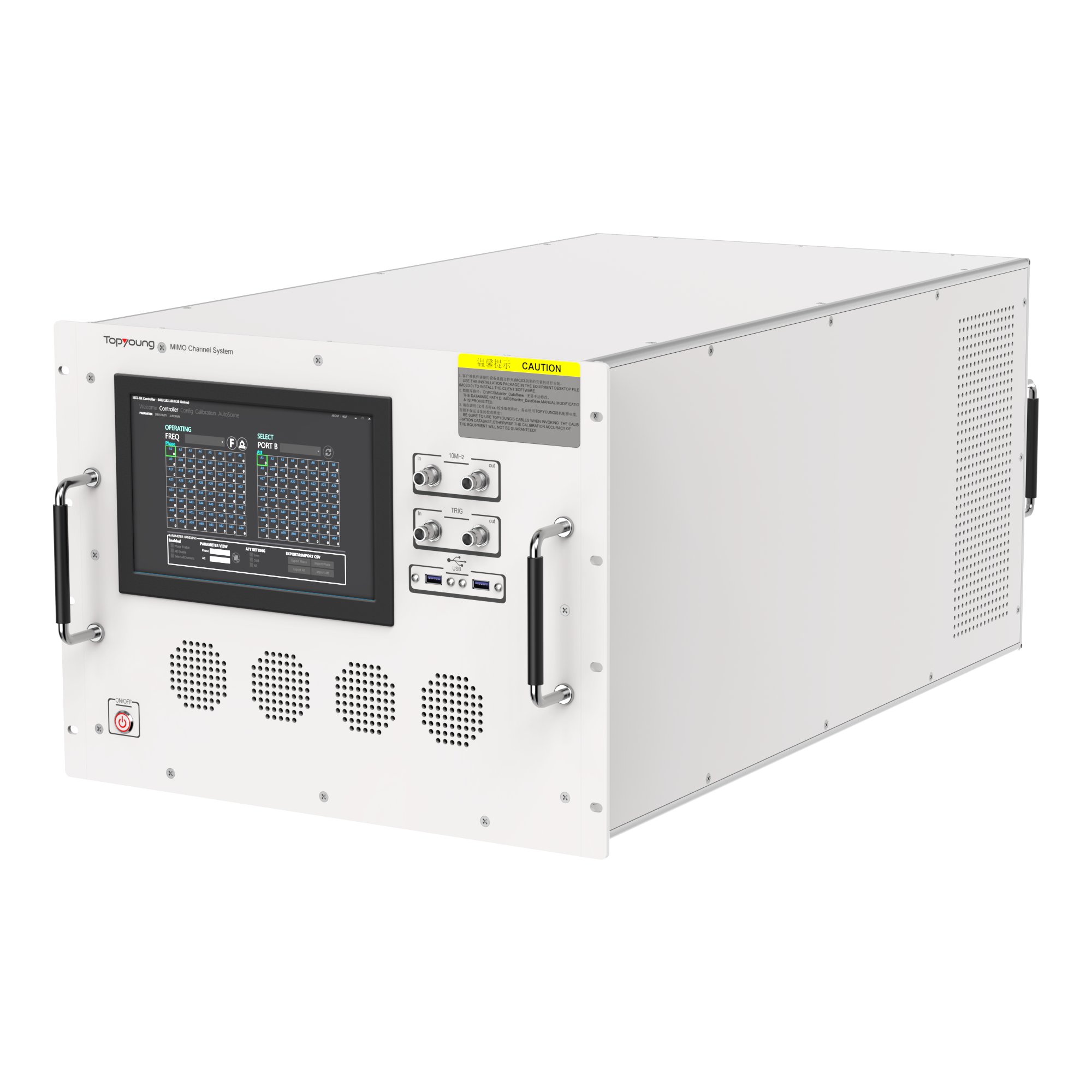

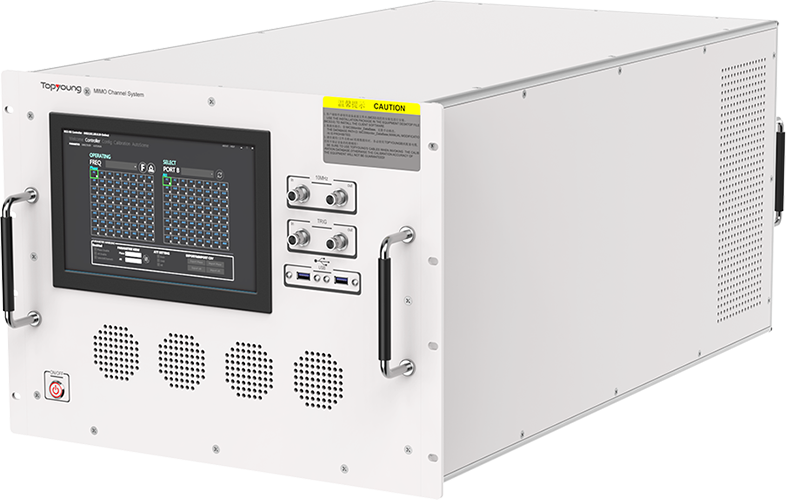

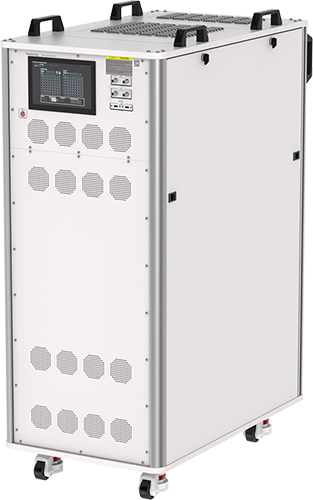

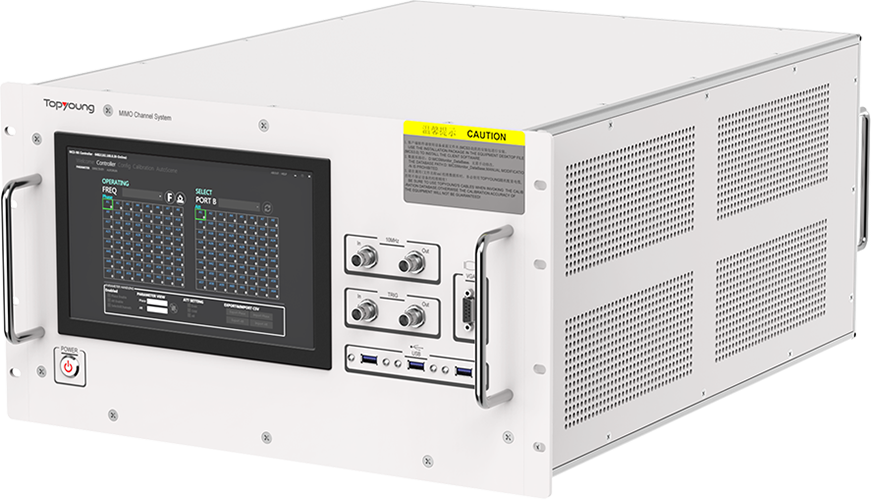

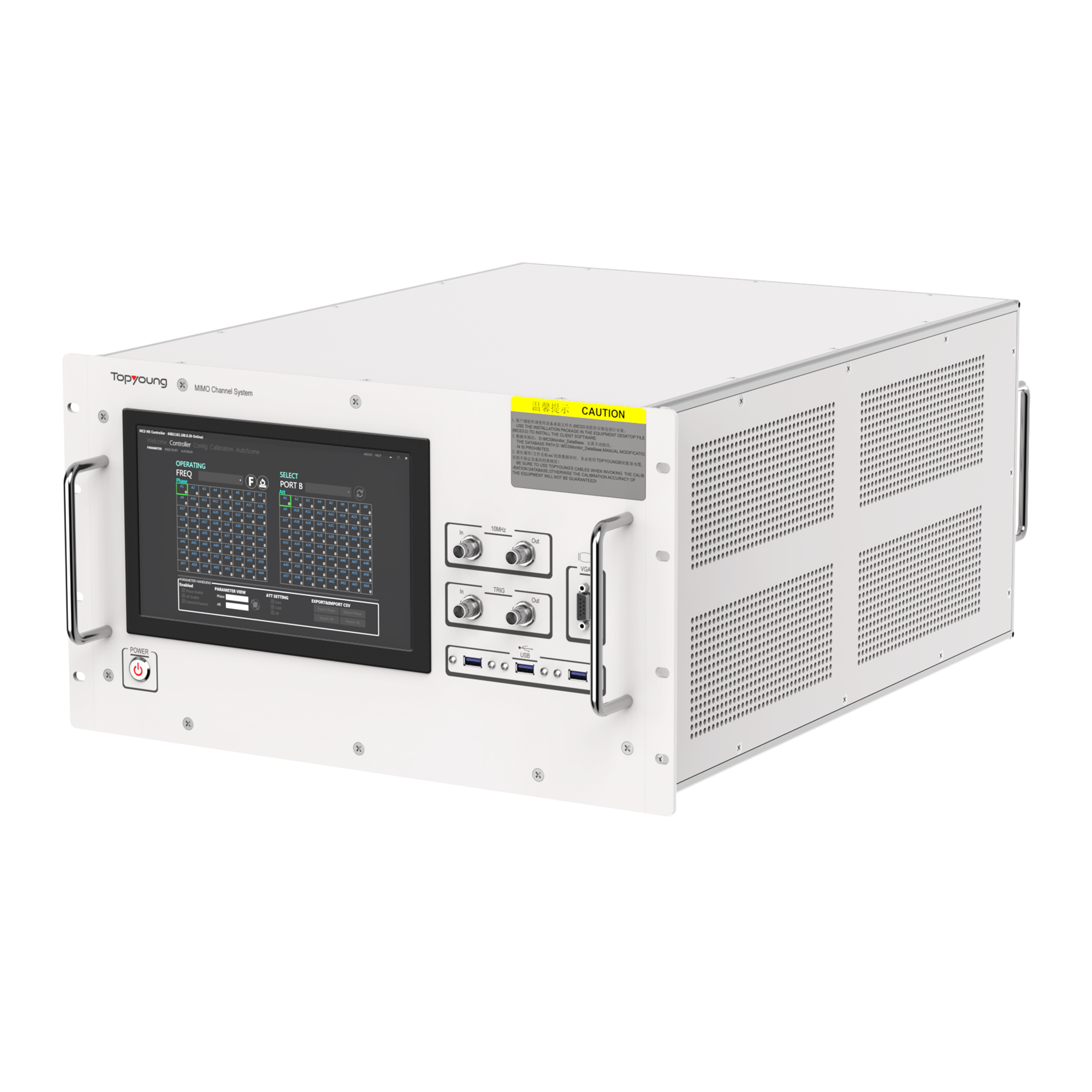

Std. mMIMO Channel System

Views:2632+ Collection:11+

* One of the best solutions for massive MIMO performance testing
* Up to thousands of independent AM and PM RF channels
* High precision within 100MHz bandwidth

Download the technical specifications of product series

Specification
  • MCS2350A
  • MCS2350A
  • MCS2350A
  • MCS2350A
  • MCS2350A
  • MCS5872A
  • MCS0609A
  • MCS1722A
  • MCS1722A
  • MCS1722A
Quantity
Payment method
100% payment in advance

Related recommendation

TDD SERIES
ModelDescription

To AAU

Port A Qty.

To UE Port B Qty.Pathloss
(dB)
Freq. Range
(GHz)

Duplex

Mode

Phase Step
(°)
Att. range
(dB)
Att. step
(dB)

Port A(DL)

RF power

(dBm)
MCS2350A2-128B16-A5MIMO Channel System-G2,128x1612816582.3 ~ 5.0TDD1.4900.530
MCS2350A2-64B32-A5MIMO Channel System-G2,64x326432582.3 ~ 3.8TDD1.4900.533
MCS2350A2-64B16-A5MIMO Channel System-G2,64x166416562.3 ~ 3.8TDD1.4900.530
MCS2350A2-64B8-A5MIMO Channel System-G2,64x8648502.3 ~ 308TDD1.4900.530
MCS2350A2-32B16-A5MIMO Channel System-G2,32x163216502.3 ~ 3.8TDD1.4900.530
MCS5872A2-128B16-A5MIMO Channel System-G2,128x1612816685.8 ~ 7.2TDD1.4900.530
FDD SERIES
ModelDescriptionTo AAU Port A Qty.To UE Port B Qty.Pathloss
(dB)
Freq. Range
(GHz)

Duplex

Mode

Phase Step
(°)
Att. range
(dB)
Att. step
(dB)
Port A(DL) RF power
(dBm)
MCS0609A2-16B16-B1FMIMO Channel System-FDD,16x161616470.61~0.96TDD2.890130
MCS1722A2-64B16-B1FMIMO Channel System-FDD,64x166416561.7 ~ 2.2FDD2.890130
MCS1722A2-32B16-B1FMIMO Channel System-FDD,32x163216501.7 ~ 2.2FDD2.890130
MCS1722A2-16B16-B1FMIMO Channel System-FDD,16x161616471.7 ~ 2.2FDD2.890130
MCS1727A2-32B32-A5-FMIMO Channel System-FDD,32x323232551.7 ~ 2.7FDD1.4900.533
MCS1727A2-32B32-A5-FMIMO Channel System-FDD,64x166416551.7 ~ 2.7FDD1.4900.530
General SPEC.
Phase Difference Between Channels@0°/0dB (°)≤±3 Typ. @Fc ±50MHz, Fc: calibrated frequency
Phase Shift Accuracy (°)≤±4 Typ. @Fc ±50MHz, Fc: calibrated frequency
Attenuation Accuracy (dB)≤±1 Typ. @Fc ±50MHz, Fc: calibrated frequency
Power Supply/Consumption86~240VAC/ 350W
Control InterfaceLAN / socket
Operating Temperature0℃~40℃
Regulatory Compliance
European UnionEMC 2014/30/EU, EN 61326-1:2013
Low Voltage Directive 2014/35/EU
Safety EN 61010-1:2010, AMD1:2016
RoHS Directive 2015/863/EU
USAFCC CFR 47 PART 18:2021 FCC MP-5:1986
Software Function
GUIIntuitive display of frequency points and sets the values of each channel.
Channel set valueSets the value of the graph to satisfy the users’ various habits.
Import and exportAll current channel settings can be exported and re-imported after user’s modification.
LoggingReal-time record (query) device operation records, including operating time and setting record values.
Scene fileSupports scene file import, auto-play, loop play; supports setting the playback interval for each frame.
Auto-CalSupports one-button automated calibration (relevant calibration accessories need to be configured)
Multi-usersSelects output to apply permissions for users.
Multi-beamMulti-frequency beams can be provided for multi-users simultaneously.
API commandsProvides API commands for automated testing.
