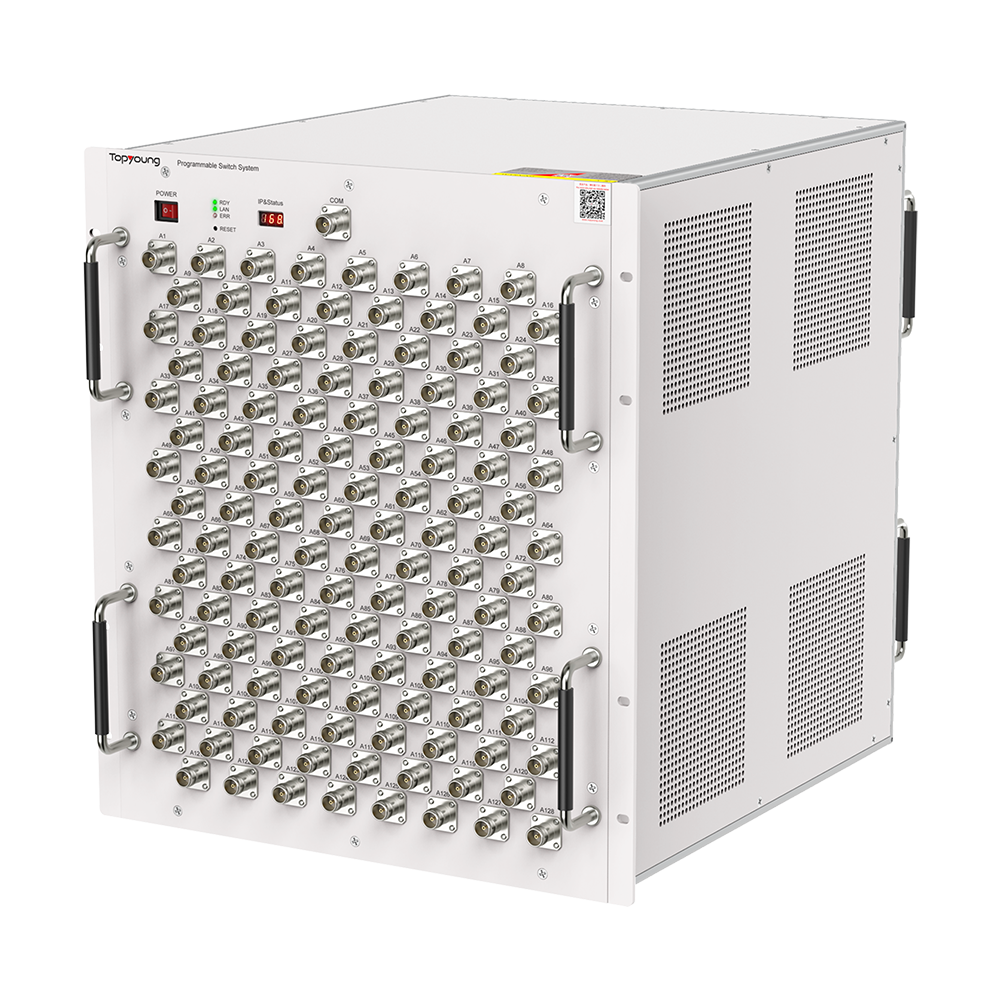

Switch Matrix,Solid State

Views:1497+ Collection:68+

Download the technical specifications of product series

Specification
  • TSS16T1-0.4G8.5B2-70S-ES
  • TSS64T1-0.4G8.5B2-70S-ES
  • TSS16B8-0.4G8.5B2-70S-ES
  • TSS32B2-0.4G8.5B2-70S-ES
  • TSS32B8-0.4G8B2-70S-ES
  • TSS8B8-0.7G8.5A2-70S-DES
  • TSS17M-0.7G8.5A2-70S-DES
  • TSS128T1-0.4G18B1-60S-ES
Quantity
Payment method
预付100%

Related recommendation

Hot sale product selection list


Model

Matrix

Mode

Matrix Type

Min.

Frequency

(GHz)

Max.

Frequency

(GHz)

IL

(dB)

Isolation

(dB)

RF Powerproduct picture

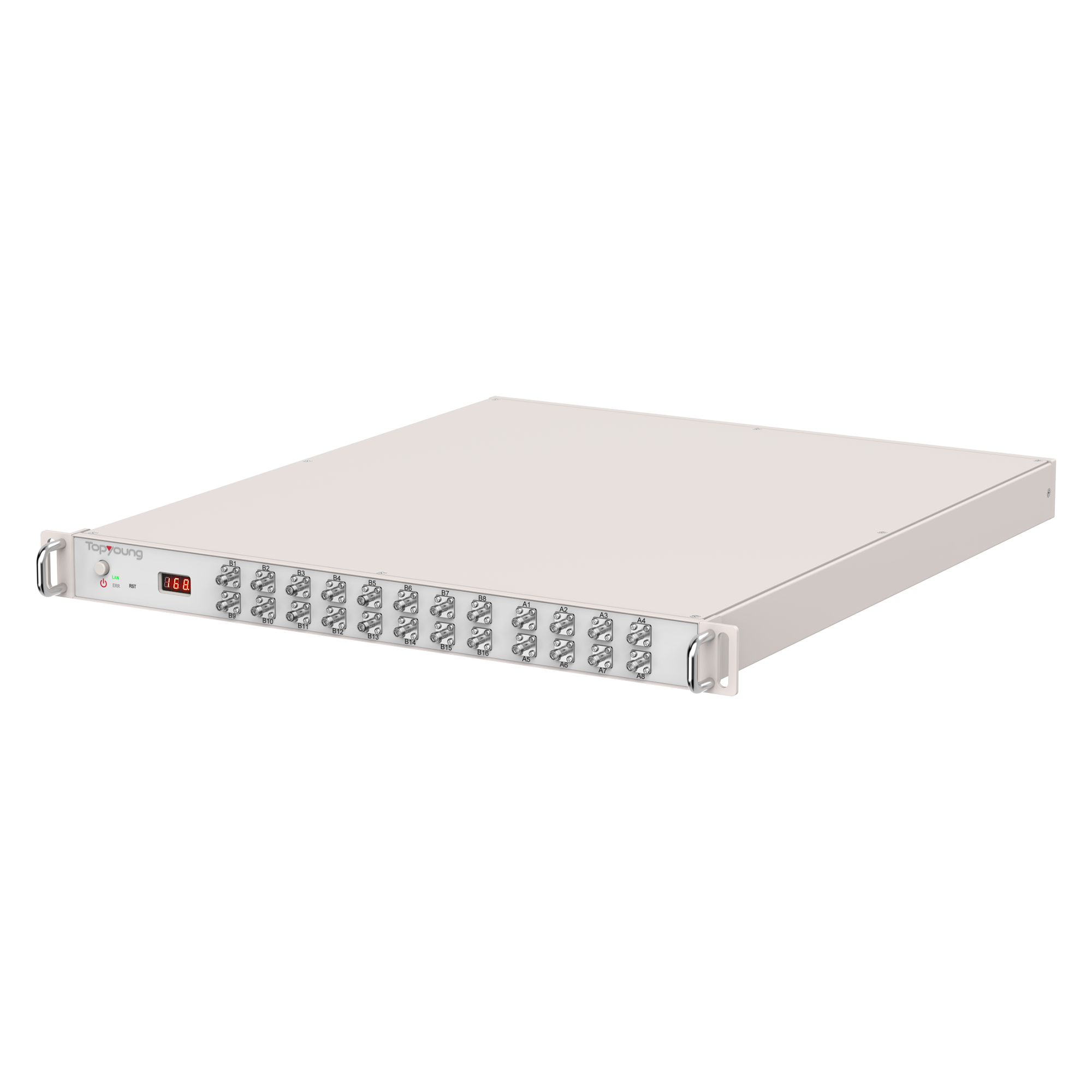

TSS16T1-0.4G8.5B2-70S-ES16x1Blocking/Solid -state0.48.5370100W

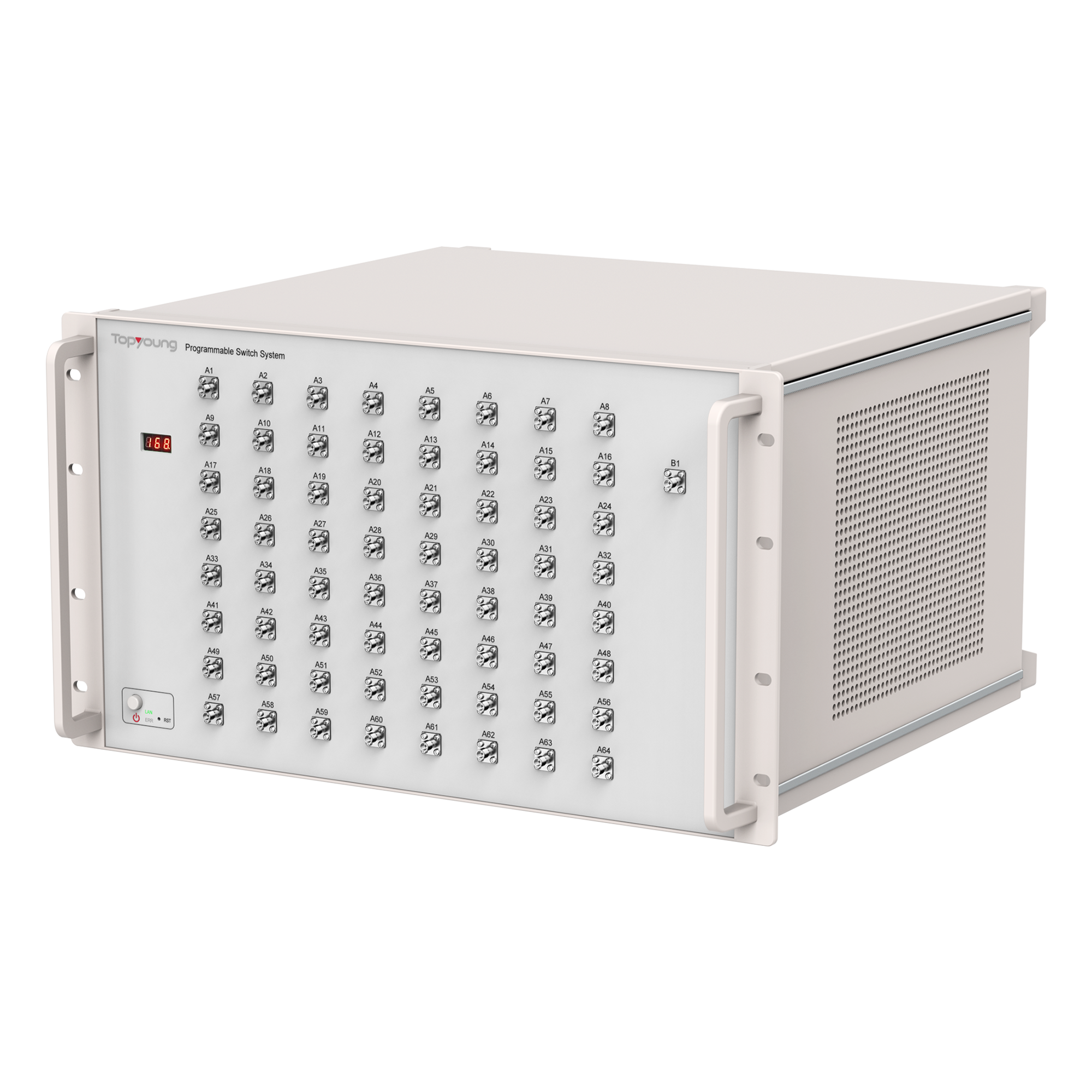

TSS64T1-0.4G8.5B2-70S-ES64x1Blocking/Solid -state0.48.512702W

TSS16B8-0.4G8.5B2-70S-ES16x8Blocking/Solid -state0.48.512702W

TSS32B2-0.4G8.5B2-70S-ES32x2Blocking/Solid -state0.48.514702W


TSS32B8-0.4G8B2-70S-ES32x8Blocking/Solid -state0.48.514702W

TSS8B8-0.7G8.5A2-70S-DES8x8Fan-in Fan-out/Solid-state0.78.526705W

TSS17M-0.7G8.5A2-70S-DES17节点MeshMesh Fan-in Fan-out/Solid-state0.78.535705W

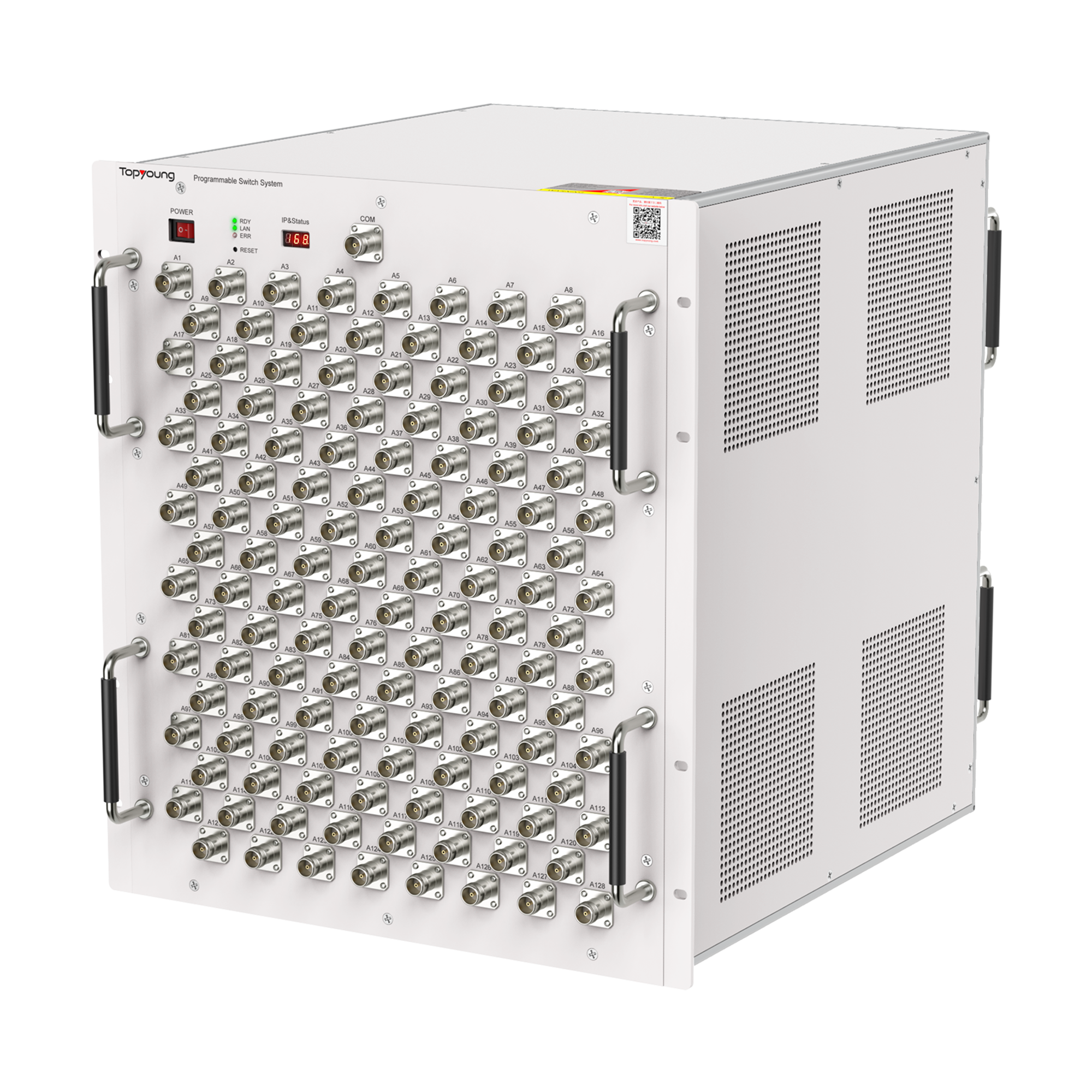

TSS128T1-0.4G18B1-60S-ES128x1Blocking/Solid -state0.41819601W


Safety regulations and standards


EU EMCEMC 2014/30/EU, EN 61326-1:2013
EU LVDSLow Voltage Directive 2014/35/EU
EU LVDSSafety EN 61010-1:2010, AMD1:2016
EU RHOSRoHS Directive 2015/863/EU
USA FCCFCC CFR 47 PART 18:2021 FCC MP-5:1986
