Specification
  • N/SMA-J/J-xxxx-6(RG223)
  • SMA-J/J-xxxx-8.5(PS205)
  • SMA-J/J-xxxx-8.5(PM150)
  • SMA-J/J-xxxx-18(PS200)
  • 2.92mm-J/J-xxxx-40(PS320)
Quantity
Payment method
预付100%

Standard Product List


Description

RF test cable

assemblies,6GHz

Phase-stabilized

cable

assemblies

8.5GHz

Phase-matched

cable

assemblies

8.5GHz

Phase-stabilized

cable

assemblies

18GHz

Phase-matched

cable

assemblies

40GHz

Model

N/SMA-J/J-xxxx-

6(RG223)

SMA-J/J-xxxx-

8.5(PS205)

SMA-J/J-xxxx-

8.5(PM150)

SMA-J/J-xxxx-

18(PS200)

2.92mm-J/J-xxxx-

40(PS320)

Freq. Range (GHz)DC~6DC~8.5DC~18DC~18DC~40
Insertion loss(dB)1.3dB/m0.9 dB/m1.3dB/m2.5dB/m4.0dB/m
VSWR1.301.251.201.301.35

Amplitude

stability(dB)

N/A±0.03/m±0.03/m±0.05/m±0.15/m
Phase stability (°)N/A±2±2±2±5

Amplitude

Consistency (dB)

N/AN/A±0.2N/A±0.25

Phase

Consistency (°)

N/AN/A±2.5N/A±0.8

Min. Bend

Radius(mm)

5025352545
RF ConnectorN,SMASMASMASMA2.92mm

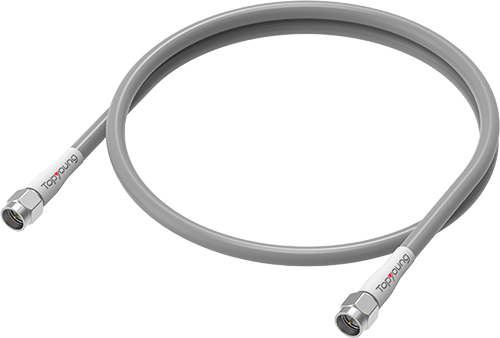

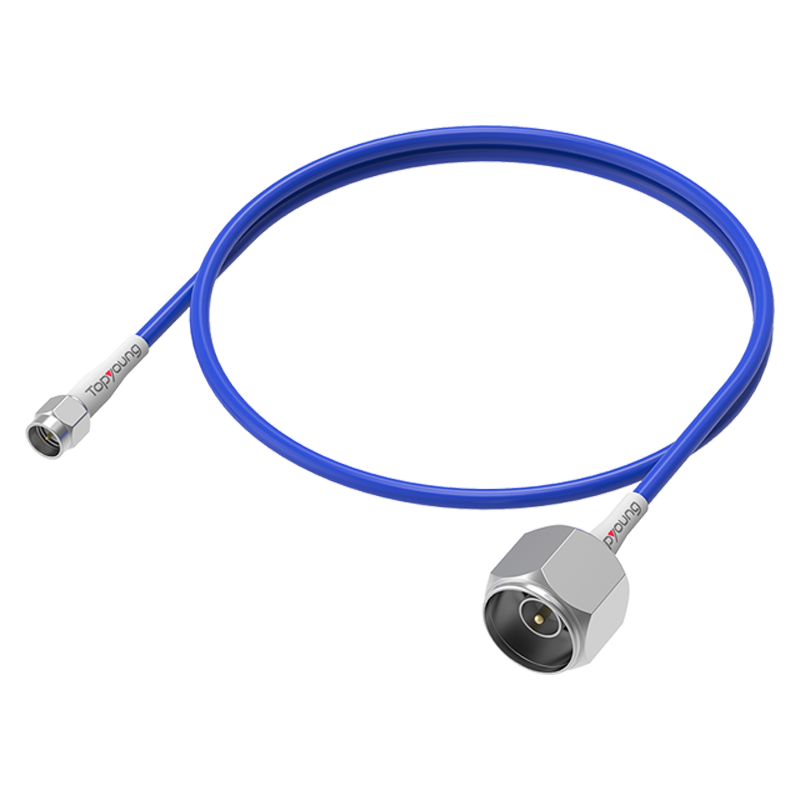

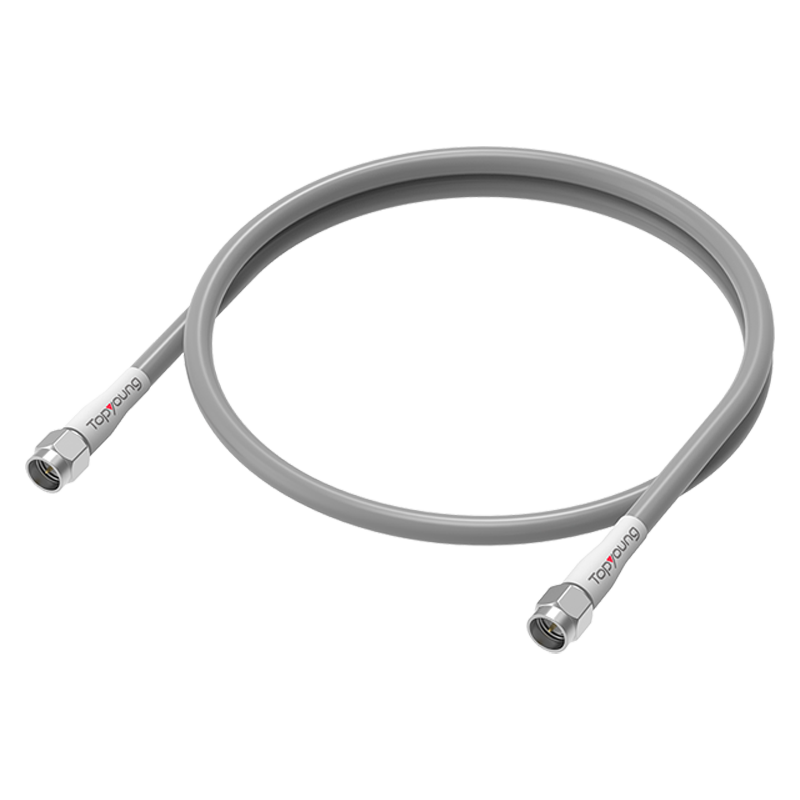

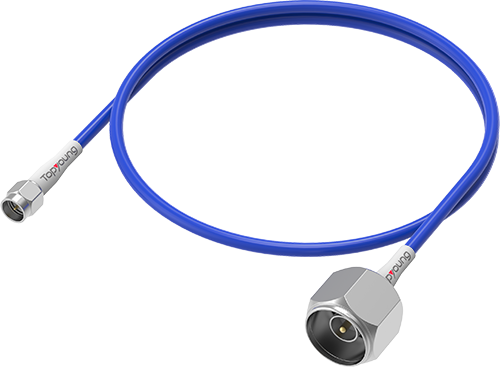

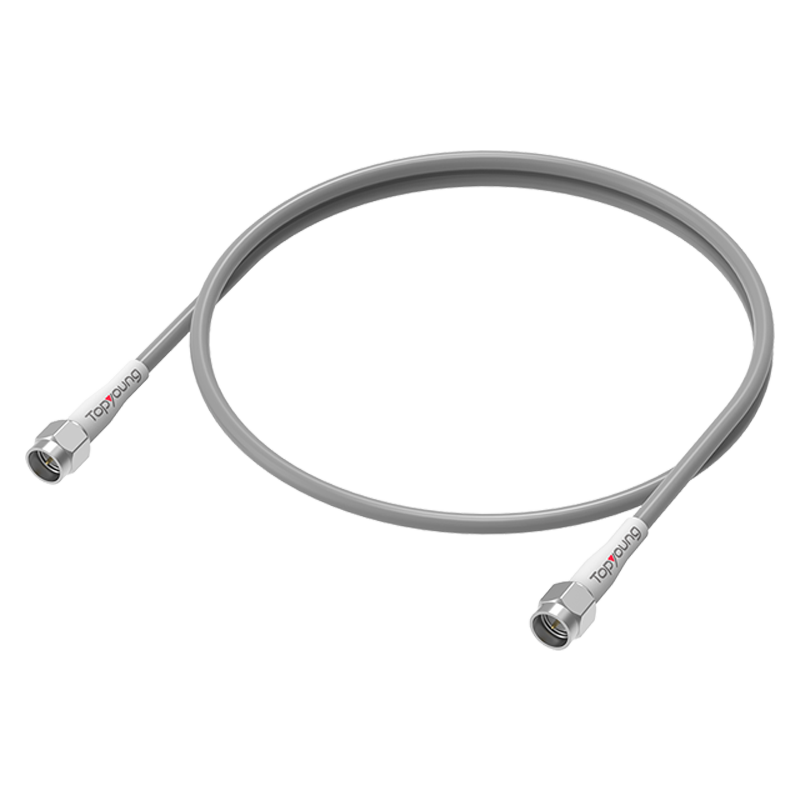

product picture

The "xxxx" in the model number represents the length of the cable assembly, unit: mm.


RF cables are cables that transmit electromagnetic energy within the RF range. RF connectors could be customized.


RF cables are indispensable components in various radio communication systems and electronic devices, and are widely used in wireless communication and broadcasting, television, radar, navigation, computers, and instruments.


Our cables have all kinds of frequency bands and lengths. The optional connector types are: SMA, N.
