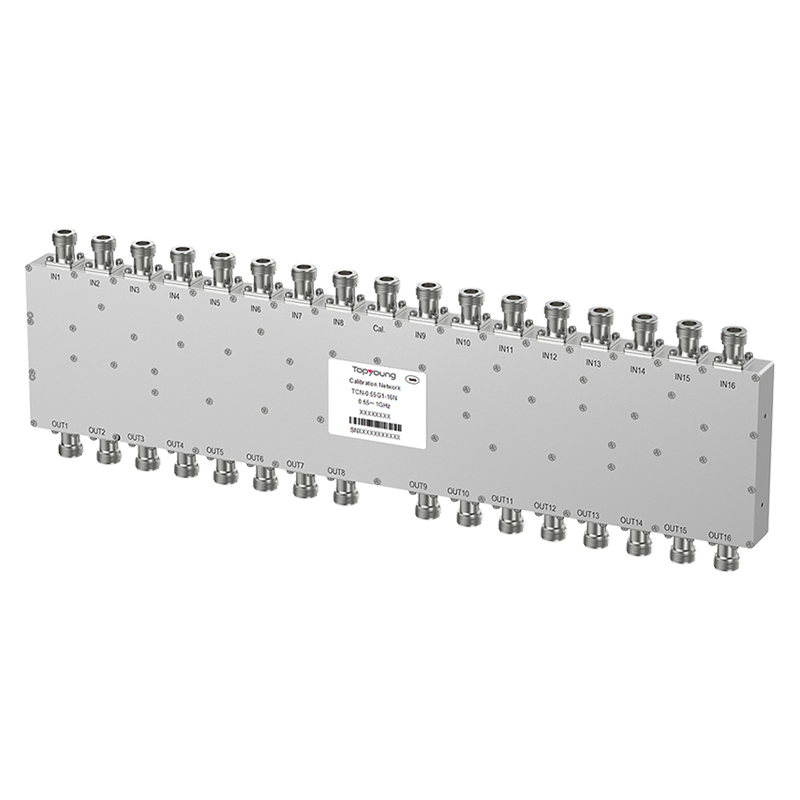

BS Calibration Networks

Views：5724+ Collection：124+

* Multi-channel passive devices with multiple inputs and multiple outputs
* Simulate 8-port intelligent antenna conduction in the air
* Frequency can cover 1.7~6GHz

Download the technical specifications of product series

Specification

TCN-0.55G1-16N

TCN-1.4G4-8N

TCN-1.7G6-8N2

Quantity

Payment method

100% payment in advance

Add to inquiry sheet Inquiry immediately

Related recommendation

BS Calibration Networks
Fixed Attenuator
RF Relay Switches
Solid State Switches,Ethernet,
Solid State Switches,TTL

Technical specifications
Product overview
Application scenarios

Standard Product List

Description	Model	Freq. Range (GHz)	VSWR	IL (In to Out) (dB)	IL (In to CAL) (dB)	ISO (Inputs) (dB)	Connector

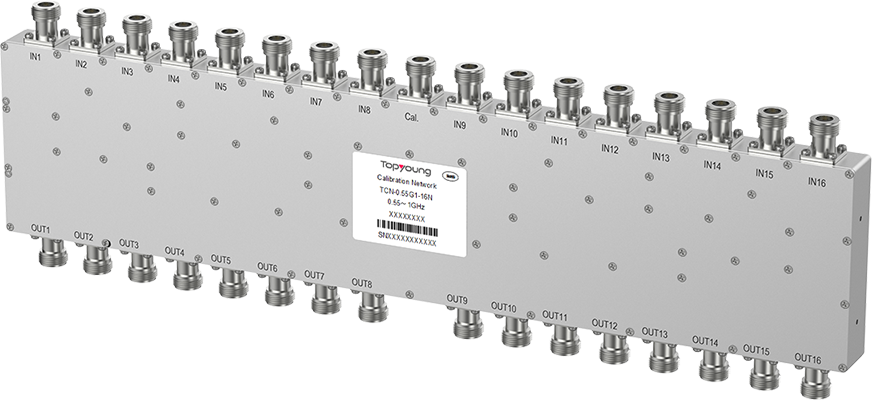

BS calibration networks，16 channels	TCN-0.55G1-16N	0.55~1	1.5	1	40 ± 2.0	65	N-F

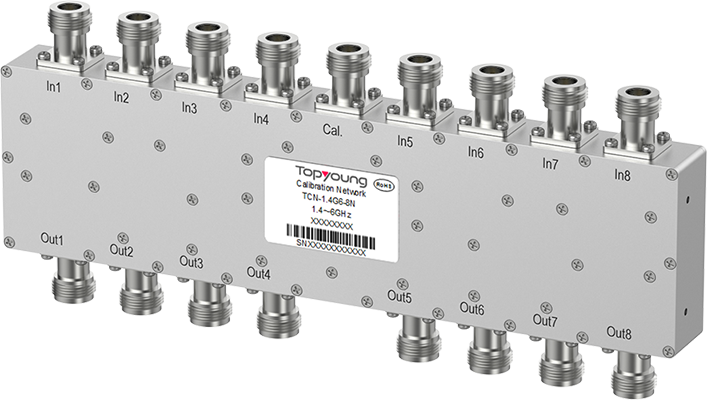

BS calibration networks，8 channels	TNC-1.4G4-8N	1.4~4	1.4	1	26 ± 2.0	50	N-F
BS calibration networks，8 channels	TCN-1.7G6-8N2	1.7~6	1.7	1	26 ± 2.0	50	N-F

Description

Model

Freq. Range

(GHz)

VSWR

IL (In to Out)

(dB)

IL (In to CAL)

(dB)

ISO (Inputs)

(dB)

Connector

product picture

BS calibration

networks，16 channels

TCN-0.55G1-16N

0.55~1

1.5

40 ± 2.0

N-F

BS calibration

networks，8 channels

TNC-1.4G4-8N

1.4~4

1.4

26 ± 2.0

N-F

BS calibration

networks，8 channels

TCN-1.7G6-8N2

1.7~6

1.7

26 ± 2.0

N-F
