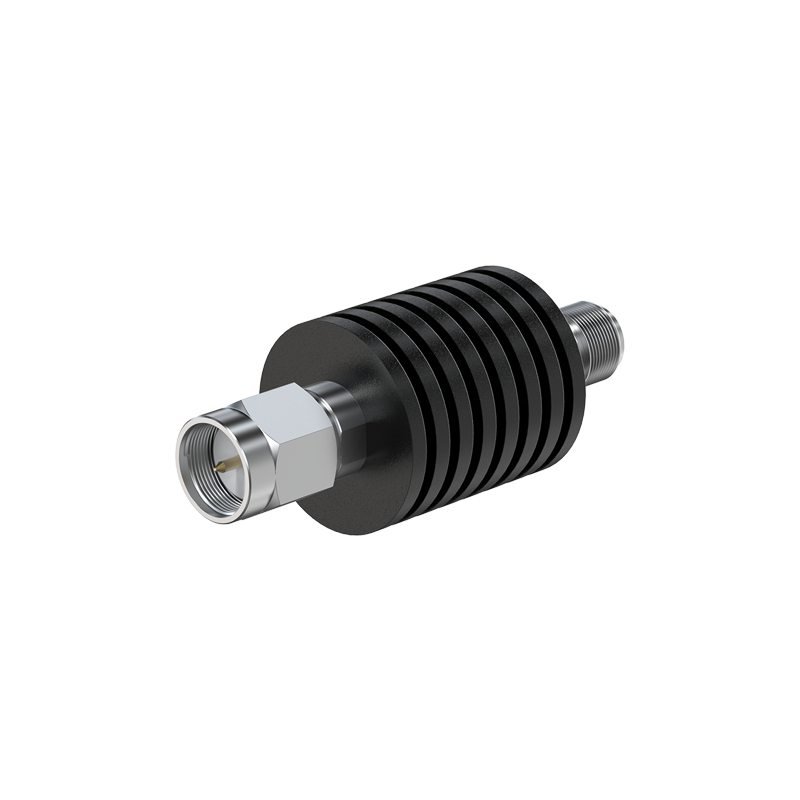

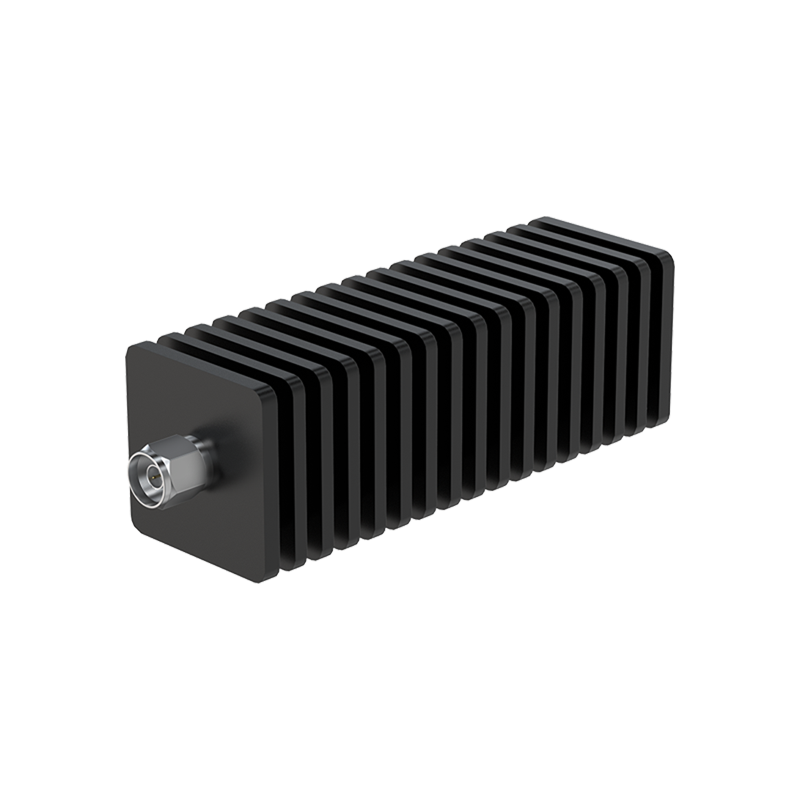

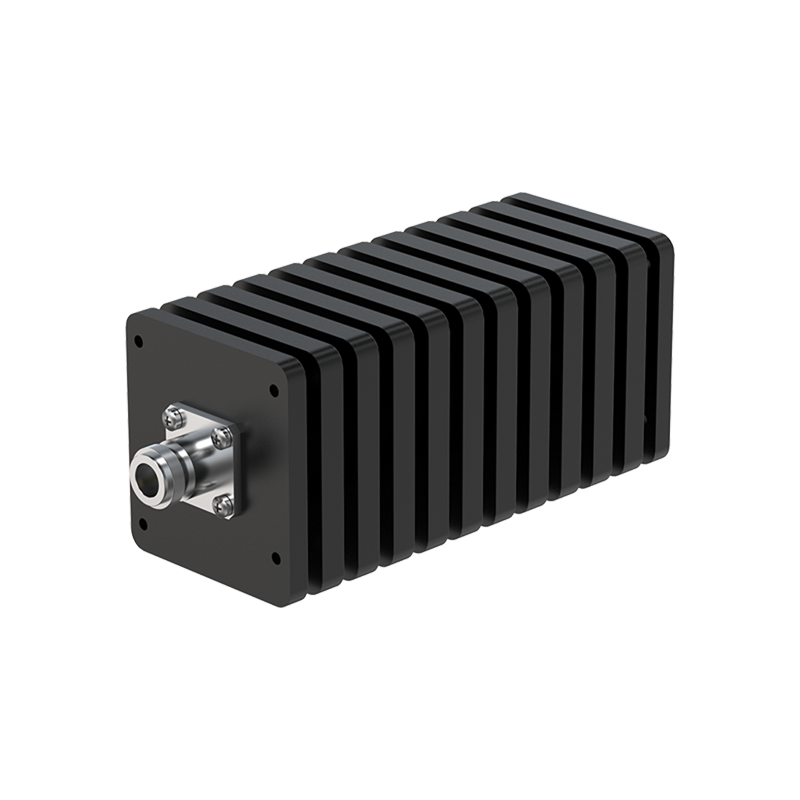

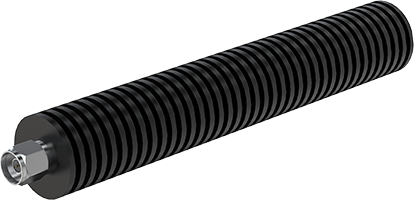

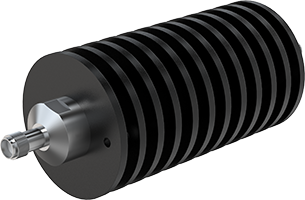

Coaxial Fixed Attenuator DC-40GHz

Home > Products > RF Components > Fixed Attenuator

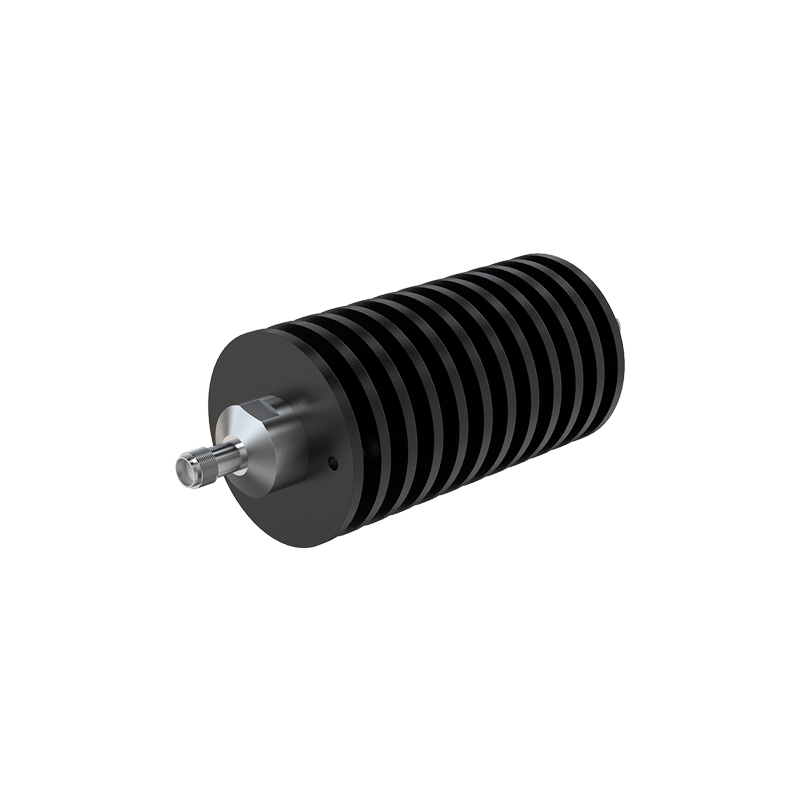

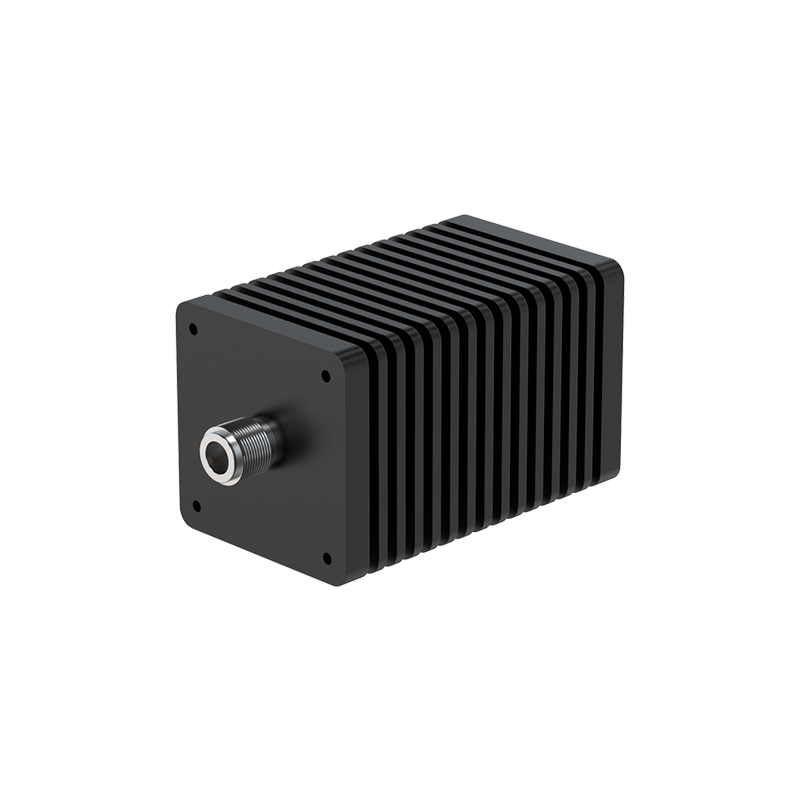

Fixed Attenuator

Views：3958+ Collection：27+

▷ DC–40 GHz coaxial fixed attenuation
▷ 2–250 W power options, 1–40 dB attenuation values
▷ Low VSWR (typ. 1.2) & wide frequency range
▷ N / SMA / 3.5mm / 2.92mm connector options

Download the technical specifications of product series

Specification

TSG02-6-XX1

TSG02-18-XX1

TSG02-40-XXK1

TSG05-18-XX1

TSG05-40-XK1

TSG10-4-XX1

TSG10-8-XX1

TSG10-12.4-XX1

TSG10-18-XX1

TSG20-4-XX1

TSG20-8-XX1

TSG20-12.4-XX1

TSG20-18-XX1

TSG30-6-XX1

TSG50-18-XX1

TSG100S-6-XX1

TSG100S-18-XX1

TSG150-4-XX1

TSG150-8-XX1

TSG150-18-XX1

TSG200S-4-XX1

TSG200S-8-XX1

TSG200S-12.4-XX1

TSG200S-18-XX1

TSG250S-4-XX1

TSG250S-8-XX1

TSG250S-12.4-XX1

TSG250S-18-XX1

Quantity

Inquiry immediately

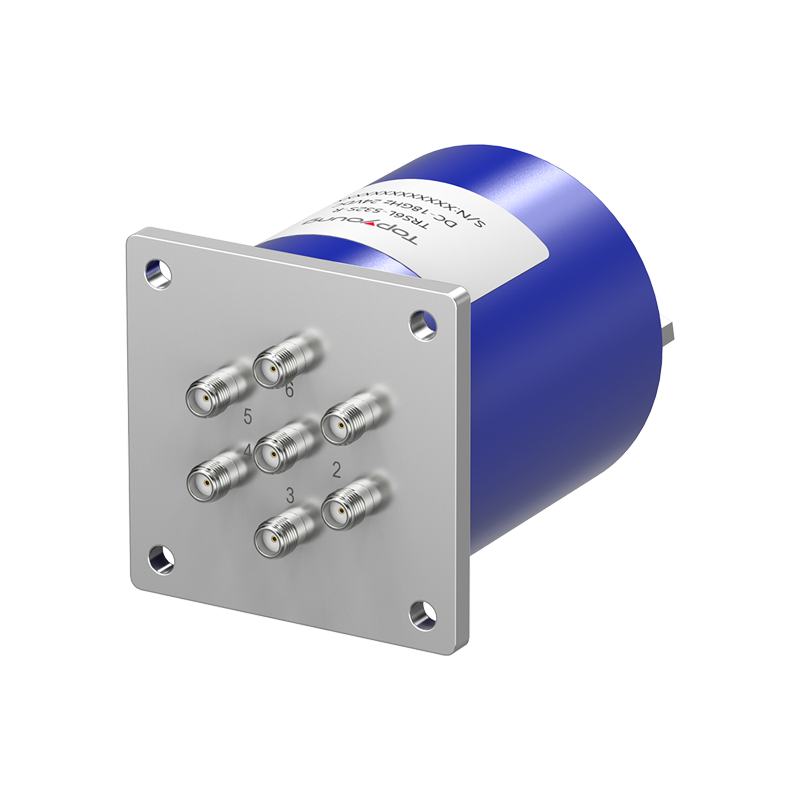

Related recommendation

Standard Product List

Model	Average Power (W)	Freq. Range (GHz)	Attenuation (dB)	VSWR	Connector*
TSG02-6-XX1	2	DC~6	1~10,20,30,40	1.25	SMA/N
TSG02-18-XX1	2	DC~18	1~10,20,30,40	1.3	SMA/N
TSG02-40-XXK1	2	DC~26.5	1~10,20,30,40	1.35	2.92mm
TSG02-40-XXK1	2	26.5~40	1~10,20,30,40	1.40	2.92mm
TSG05-18-XX1	5	DC~18	1~10,20,30,40	1.35	SMA/N
TSG05-40-XK1	5	DC~40	1~10,20,30,40	1.40	2.92mm
TSG10-4-XX1	10	DC~4	1~10,20,30,40	1.20	SMA/N
TSG10-8-XX1	10	DC~8	1~10,20,30,40	1.25	SMA/N
TSG10-12.4-XX1	10	DC~12.4	1~10,20,30,40	1.25	SMA/N
TSG10-18-XX1	10	DC~18	1~10,20,30,40	1.30	SMA/N
TSG20-4-XX1	20	DC~4	1~10,20,30,40	1.20	SMA/N
TSG20-8-XX1	20	DC~8	1~10,20,30,40	1.25	SMA/N
TSG20-12.4-XX1	20	DC~12.4	1~10,20,30,40	1.35	SMA/N
TSG20-18-XX1	20	DC~18	1~10,20,30,40	1.45	SMA/N
TSG30-6-XX1	30	DC~6	5,10,15,20,30,40	1.25	SMA/N
TSG50-18-XX1	50	DC~12.4	1~10,20,30,40	1.20	SMA/N
TSG50-18-XX1	50	12.4~18	1~10,20,30,40	1.45	SMA/N
TSG100S-6-XX1	100	DC~6	1~10,11~20,30,40	1.25	SMA/N
TSG100S-18-XX1	100	DC~18	1~10,20,30,40	1.45	SMA/N
TSG150-4-XX1	150	DC~4	6~10,20,30,40	1.20	SMA/N
TSG150-8-XX1	150	DC~8	6~10,20,30,40	1.25	SMA/N
TSG150-18-XX1	150	DC~18	6~10,20,30,40	1.45	SMA/N
TSG200S-4-XX1	200	DC~4	1~10,20,30,40	1.2	SMA/N
TSG200S-8-XX1	200	DC~8	1~10,20,30,40	1.25	SMA/N
TSG200S-12.4-XX11	200	DC~12.4	1~10,20,30,40	1.35	SMA/N
TSG200S-18-XX1	200	DC~18	1~10,20,30,40	1.45	SMA/N
TSG250S-4-XX1	250	DC~4	10,20,30,40	1.2	SMA/N
TSG250S-8-XX1	250	DC~8	10,20,30,40	1.25	SMA/N
TSG250S-12.4-XX1	250	DC~12.4	10,20,30,40	1.35	SMA/N
TSG250S-18-XX1	250	DC~18	10,20,30,40	1.45	SMA/N
