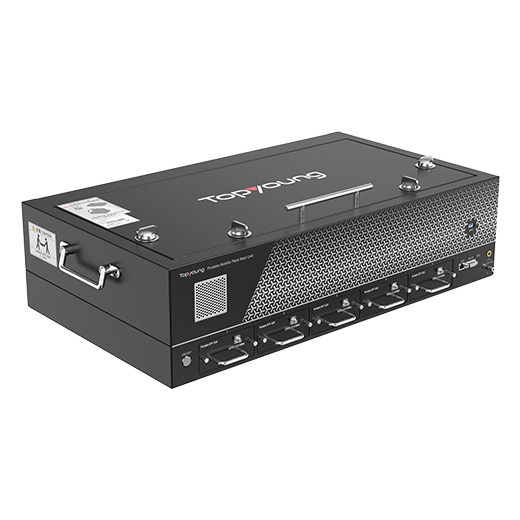

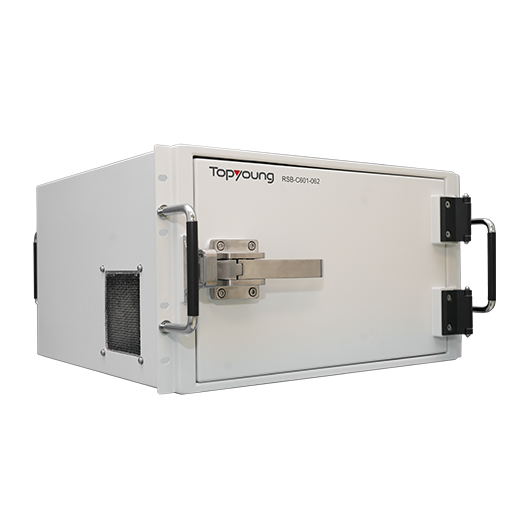

Desktop Shielding Box

Standard Product List

Model	Description	Outline*	Internal size（mm） Width x depth x high	Shielding Effectiveness	External interface
RSB-2U8RDU	2U UE MIMO Box with 2 sub-shielding spaces	19”,2U, 350mm depth	Sub-space: 100x200x15	＞60dB@0.7~8.5GHz	SMA-Female x16 USB3.0/5Gbps x2
RSB-C601-081	2U drawer-out shielding box with 2 sub-shielding spaces	19”,2U, 360mm depth		＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x16 Is not preinstalled with any EMI filter
RSB-C601-080	3U drawer-out shielding box with 4 sub-shielding spaces	19”,3U, 360mm depth	Sub-space: 80x300x100	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x16 Is not preinstalled with any EMI filter
RSB-C601-005	3U drawer-out shielding box with 4 sub-shielding spaces	19”,3U, 360mm depth	Sub-space: 80x300x100	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x16 USB2.0 x8 RJ45/1Gbps x8 DC 7.5A x8
RSB-C601-018	3U drawer-out shielding box with 4 sub-shielding spaces	19”,3U, 360mm depth	Sub-space: 80x300x100	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x16 USB3.0/5Gbps x8 RJ45/1Gbps x8 DC 7.5A x8
RSB-C601-003	3U drawer-out shielding box with 6 sub-shielding spaces	19”,3U, 360mm depth	Sub-space: 55x300x100	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x12 USB2.0 x6 RJ45/1Gbps x6 DC 7.5A x6
RSB-C601-011	3U drawer-out shielding box with 6 sub-shielding spaces	19”,3U, 360mm depth	Sub-space: 55x300x100	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x12 USB3.0/5Gbps x6 RJ45/1Gbps x6 DC 7.5A x6
RSB-C601-010	3U drawer-out shielding box	19”,3U, 360mm depth	340 x300x100	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x12 USB2.0 x12
RSB-C601-047	3U drawer-out shielding box	19”,4U, 360mm depth	370 x300x150	＞65dB@0.7~2GHz ＞60dB@2~4GHz ＞55dB@4~6GHz	SMA-Female x16 USB2.0 x8 RJ45/1Gbps x8 DC 7.5A x8
RSB-C601-084	6U shielding box with 2 sub-shielding spaces	19”,6U, 410mm depth	Sub-space: 140x360x200	＞70dB@0.7~6GHz	SMA-Female x16 USB3.0/5Gbps x4 AC 15A x8
RSB-C601-078	Shielding box, 6U,450mm depth	19”,6U, 450mm depth	340 x390x180	＞70dB@0.7~6GHz ＞65dB@6~8.5GHz	SMA-Female x8 N-Female x4 USB3.0/5Gbps x2 RJ45/1Gbps x2 DC 7.5A x2 AC 10A x1
RSB-C601-032	Shielding box, 8U,565mm depth	19”,8U, 565mm depth	340 x500x270	＞70dB@0.7~6GHz	SMA-Female x8 N-Female x8 USB3.0/5Gbps x3 RJ45/1Gbps x3 DC 7.5A x3 DC 40A x1 AC 10A x1

* The external dimensions refer to the size of the box exterior, excluding the handle, connectors, and the signal EMI filter that extends outside.

Wireless signal shielding: In wireless communication test laboratories, shielding boxes and cabinets are a common type of test equipment. They are mainly used to block the ubiquitous commercial cellular and Wi-Fi signals from the outside from entering the device under test, while allowing the useful and expected signals to be fed into the shielding box or cabinet through RF coaxial cables.
The input of optical and electrical signals:
AC or DC power is fed into the internal equipment through the power EMI filter on the shield box panel to supply power.
It provides a variety of control interfaces to achieve the purpose of automatic control and status reading of the internal equipment. These communication interfaces include serial ports, network ports, USB-A, USB-C, etc.
Each interface is equipped with an EMI filter function to ensure unobstructed communication with the internal components while preventing external interference signals from entering the shielded equipment through these power lines or data lines and affecting the test environment.
Ventilation and heat dissipation: The equipment inside the shielding enclosure will inevitably generate a large amount of heat when powered on for a long time. The ventilation waveguide window is designed to allow ventilation while blocking wireless signals. If the heat dissipation of the equipment is significant, a waveguide window assembly with an active cooling fan can also be used to enhance the heat dissipation effect.
