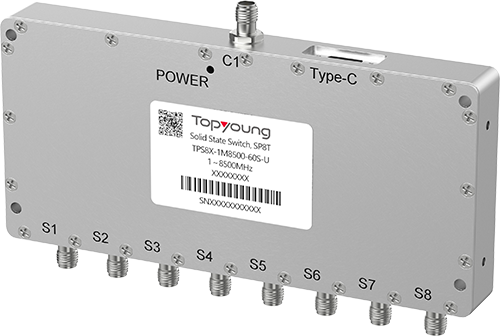

Solid State Switches,USB

Views:420+ Collection:0+

Specification
  • TPS2X-0.
  • TPS4X-0.
  • TPS8X-0.
  • TPS16X-0
Quantity
Payment method
预付100%

Related recommendation

Model

Frequency

(GHz)

VSWR

Insertion

Loss

(dB)*

Isolation

(dB)

P0.1dB

(dBm)

Connector

Type

Switching

(ms)

Operating

Temperature

(℃)

TPS2X-0.4G8.5-60S-U0.4~8.51.446033SMA-Female< 5-40~+70
TPS4X-0.4G8.5-60S-U0.4~8.51.456033SMA-Female< 5-40~+70
TPS8X-0.4G8.5-60S-U0.4~8.51.566033SMA-Female< 5-40~+70
TPS16X-0.4G8.5-60S-U0.4~8.51.576033SMA-Female< 5-40~+70
Control InterfaceType-C
USB Maximum rate12Mbps
FunctionsQuery the product model
Query and set ID
Switch the switch path
ParameterMinTypMaxUnits
USB Power Supply Voltage4.7555.25V
USB Power Supply Current/200/mA
